4-1-4 2ND IF AND DEMODULATOR CIRCUITS
(MAIN UNIT)
The 2nd mixer circuit converts the 1st IF signal into a 2nd IF
signal. A double superheterodyne system (which converts
receive signals twice) improves the image rejection ratio
and obtains stable receiver gain.
The FM IF IC (IC6 for channel 70, IC1 for other channels)
contains the 2nd local oscillator, 2nd mixer, limiter amplifier,
quadrature detector, and noise detector circuits, etc.
• CHANNEL 70 CIRCUIT
The 1st IF signal from the 2nd IF amplifier (Q10) is applied
to the 2nd mixer section of FM IF IC (IC6, pin 16), and is
mixed with a 21.25 MHz 2nd LO signal, which is generated
at the 2nd oscillator section in IC6 and X3, to produce a 450
kHz 2nd IF signal.
The 2nd IF signal from IC6 (pin 3) is passed through the
ceramic filter (FI6), which unwanted signals are suppressed,
and is then applied to the 2nd IF (limiter) amplifier in IC6 (pin
5). The signal is applied to the FM detector section in IC6
for demodulating into AF signals.

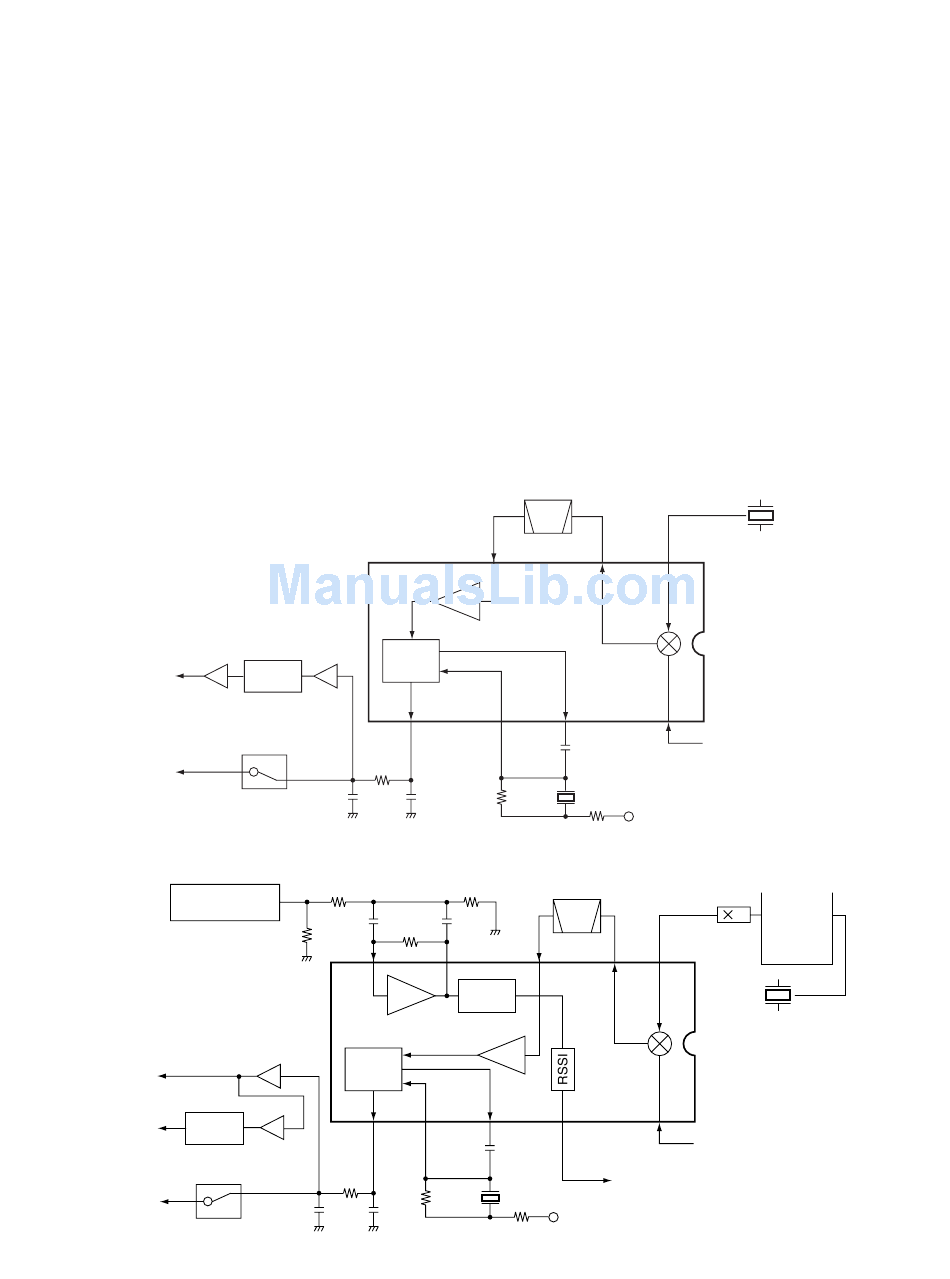

• 2ND IF AND DEMODULATOR CIRCUITS
(For CHANNEL 70 ONLY)
IC5a,
IC5b
"DEC2" signal
decoder
AF signal "DET"
1
IC11
• 2ND IF AND DEMODULATOR CIRCUITS
(For OTHER CHANNELS)
D/A convertor IC
(IC15, pin 23)
"WXDEC" signal
"DEC1" signal
DSC
decoder
AF signal "DET"
7
1
IC11
Limiter
amp.
IC3c,
IC9
FM
IC3d
DSC detector
9
6
8
Active
filter
IC3a
FM
detector
IC3b
9 10
The FM detector circuit employs a quadrature detection
method (linear phase detection), which uses a ceramic dis-
criminator (X2) for phase delay to obtain a non-adjusting
circuit. The detected signal from IC6 (pin 9) is applied to the
AF circuit.
• OTHER CHANNELS CIRCUIT
The 1st IF signal from the 2nd IF amplifier (Q2) is applied
to the 2nd mixer section of FM IF IC (IC1, pin 16), and is
mixed with a 30.6 MHz 2nd LO signal, which is generated
at the PLL circuit using the reference frequency (15.3 MHz),
to produce a 450 kHz 2nd IF signal.
The 2nd IF signal from IC1 (pin 3) is passed through the
ceramic filter (FI3), which unwanted signals are suppressed,
and is then applied to the 2nd IF (limiter) amplifier in IC1 (pin
5). The signal is applied to the FM detector section in IC1
for demodulating into AF signals.
The FM detector circuit employs a quadrature detection
method (linear phase detection), which uses a ceramic dis-
criminator (X1) for phase delay to obtain a non-adjusting
circuit. The detected signal from IC1 (pin 9) is applied to the
AF circuit.
