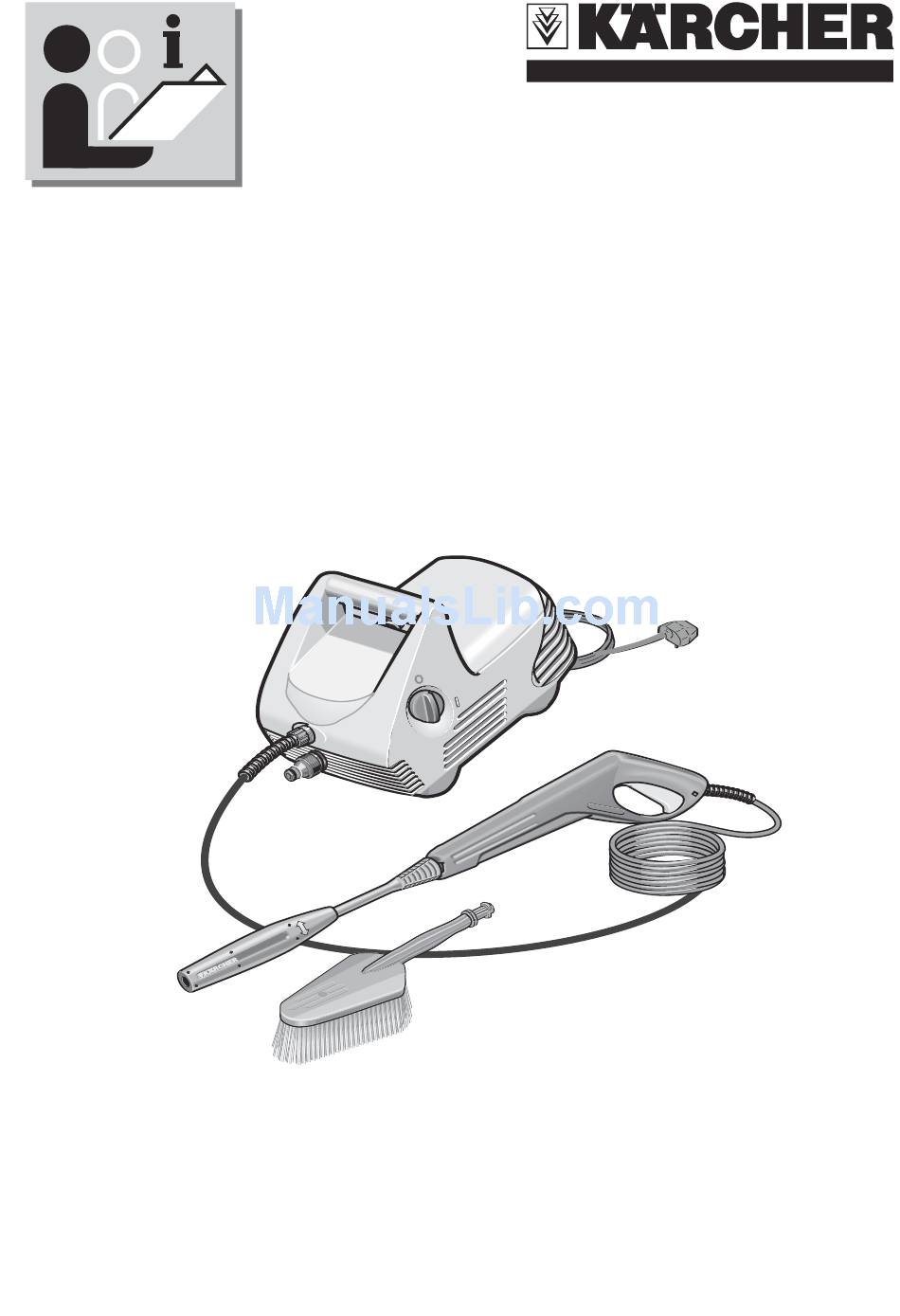

Page 1: Operating Instructions
K 3.00 B 5.960–839 04/03_2005162 Operating Instructions PRESSURE WASHER Before first use of the unit read these operating instructions and act in accordance with them... -
Page 2: Applications 4
This provides the cleaning power behind the Karcher Pressure Washer. A Karcher Pressure Washer can be used for an endless list of applications around the home and garden. It provides an efficient, economical and labour saving way of cleaning with excellent results. -
Page 3: Table Of Contents
INDEX APPLICATIONS ..........................SAFETY INSTRUCTIONS 4 - 6 .................. Electrical Connection Safety Instructions GETTING STARTED ....................... Contents Water Connection Electrical Connection Suction Mode Detergent OPERATING YOUR PRESSURE WASHER ......High Pressure Operation Low Pressure Operation with Detergent Low Pressure Operation With Brush End Of Operation IMPORTANT –... -
Page 4: Applications
• Garden tools and machinery, furniture and barbecues • Hygienic cleaning of animal pens and their surroundings With the addition of Karcher accessories, the list continues ..... • Clearing blocked drains and pipes • Removal of old paint and rust from garden furniture and gates •... -
Page 5: Electrical Connection
Electrical Connection Never use defect connection or extension lines! If the connection line is damaged, it must be replaced with a special connection line that is available from the manufacturer or his customer service. Please make sure that the connection or extension lines are not dama- ged by being ran over, pulled or dragged. - Page 6 The appliance is not intended for use by young children or infirm per- sons without supervision. Young children should be supervised to ensure that they do not play with the appliance. The operator must use the appliance properly. He must take the local conditions into consideration and must pay attention to third persons, in particular children, while working with the appliance.
-
Page 7: Getting Started
3. GETTING STARTED 3.1 Contents Upon opening the carton, if you do not have all the items as detailed please contact the Customer Helpline on 01295 752200. Assembly see Page19 1 Detergent suction hose 6 Spray lance with Vario Po- 9 Mains Electric Lead 2 Power switch (ON/OFF) wer Nozzle... -
Page 8: Water Connection
1 to 10 m: 1.5 mm² 10 to 30 m: 2.5 mm² 3.4 Suction Mode - an added benefit of the Karcher Pressure Washer • If you are drawing water from an open container such as a water butt disconnect the high pressure hose from the machine. -
Page 9: Detergent
3.5 Detergent Only cleaning agents recommended by Karcher (UK) Ltd. should be used. Unsuitable detergents could damage your Pressure Washer and the object being cleaned. Recommended Detergents 1. The following cleaning agent may be used undiluted: Universal Cleaner ......Profi RM 555 ASF 2. -
Page 10: Operating Your Pressure Washer
! • Once water is flowing through the machine, you may now switch on your Karcher Pressure Washer using the Power Switch (No. 2) WHEN USING YOUR KARCHER PRESSURE WASHER ON THE HIGH PRESSURE SETTING, THE RECOMMENDED WORKING DISTANCE BETWEEN THE NOZZLE AND THE OBJECT OR SURFACE TO BE CLEANED IS 30 CM. -
Page 11: High Pressure Operation
4.1 High Pressure Operation • Ensure the Spray Lance with Vario Power Nozzle (No. 6) is attached securely to the Spray Gun (No. 8). • Set vario power nozzle to high pressure mode "+". • Aim the lance towards the object to be cleaned making sure the recommended working distance is used for reference. -
Page 12: End Of Operation
SUCTION TUBE IN A CONTAINER WITH CLEAN WATER AND RUN THE PUMP FOR APPROXIMATELY ONE MINUTE IN LOW PRESSURE SETTING. In the event of a break of 5 minutes in the operation of your Karcher Pressure Washer, always switch off the pump to avoid damage due to overheating. -
Page 13: Important - Care And Maintenance
• Always fully uncoil any extension lead when used. Chemicals Use of chemicals other than those recommended by Karcher could cau- se significant damage which may not be covered by your warranty. • After using chemicals, always run fresh water through your machine. -
Page 14: Accessories / Spare Parts
• The high pressure hose of your Karcher Pressure Washer should not be mistreated. It is designed to withstand high pressure operation so vehicles should NOT run over it, nor should it be pulled across sharp or abrasive edges. These actions may weaken the hose and cause ballooning. -
Page 15: Spare Parts
Most accessories will be available from your local store selling Karcher Pressure Washers. If they are not stocked, most stores will raise a special order for you. If you have difficulty obtaining accessories please contact: Karcher on the Retail Helpline No. 01295 752200 6. -
Page 16: Problem Checklist / Troubleshooting
7. PROBLEM CHECKLIST The machine you have chosen is of the highest quality. Correctly stored away from frost it should operate without problems. If a problem does arise, please check the following chart as a solution may be at hand. i t c i t c c i f... -
Page 17: After Sales Service
8. Help-Line Karcher (UK) Limited operate a help-line allowing customers to dis- cuss any problems experienced with our products. The help-line operates during normal business hours, if you have diffi- culty getting through, please understand that there are peak periods during the day when our consultants are unable to take all calls co- ming in. -
Page 18: Technical Data
9. TECHNICAL DATA Power Connection Voltage ....230-240 V -AC Current ...... 1~50 Connected/Load ......1.7 Mains Fuse ......13 Water Connection Supply Temperature (Max) ......40 °C Supply Rate (Min) ......10 litres per minute Supply Pressure (Max) (12 bar) ....Supply Hose: Length ......7.5 metres Diameter... -
Page 19: Assembly
10. ASSEMBLY... - Page 20 EU Declaration of Conformity We hereby declare that the equipment described below conforms to the relevant fundamental safety and health re- quirements of the appropriate EU Directives, both in its ba- sic design and construction as well as in the version marke- ted by us.This declaration will cease to be valid if any modi- fications are made to the machine without our express ap- proval.
