CD RECEIVER
CD-RECEIVER
RECEPTEUR CD
CD-RECEIVER
KD-S636
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l'installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende
handleiding.
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING

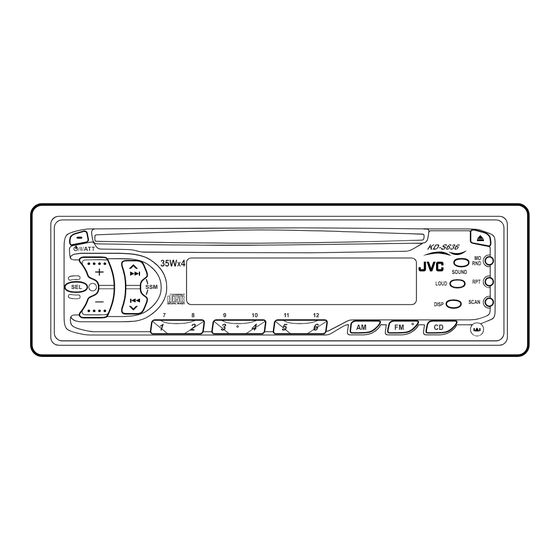

/I/ATT
35W
4
X
SEL
SSM
7
8
9
10
1
2
3
4
MO
RND
SOUND
RPT
LOUD
SCAN
DISP
11
12
5
6
AM
FM
CD
COMPACT
DIGITAL AUDIO
FSUN3039-311S
[E]
Advertisement
Table of Contents
Related Manuals for JVC KD-S636
Summary of Contents for JVC KD-S636
- Page 1 CD RECEIVER CD-RECEIVER RECEPTEUR CD CD-RECEIVER KD-S636 For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.
-
Page 2: Laser Product
1. CLASS 1 LASER PRODUCT 2. DANGER: Invisible laser radiation when 3. CAUTION: Do not open the top cover. 4. CAUTION: This CD player uses invisible 5. CAUTION: Use of controls, adjustments or *Temperature inside the car... If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit. -
Page 3: Table Of Contents
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS BASIC OPERATIONS ... 4 RADIO OPERATIONS ... 5 Listening to the radio ... 5 Storing stations in memory ... -
Page 4: Basic Operations
1 second. Turn on the power. Select the source. To operate the tuner, see pages 5 – 9. To operate the CD player, see pages 10 – 12. Adjust the volume. LOUD Note: When you use this unit for the first time, set the built-in clock correctly, see page 16. -
Page 5: Radio Operations
RADIO OPERATIONS Listening to the radio To search stations of higher frequencies. To search stations of lower frequencies. To stop searching before a station is received, press the same button you have pressed for searching. To tune in a particular frequency without searching: 1 Press FM or AM to select the band. -
Page 6: Storing Stations In Memory
Storing stations in memory You can use one of the following two methods to store broadcasting stations in memory. • Automatic preset of FM stations: SSM (Strong-station Sequential Memory) • Manual preset of both FM and AM stations FM station automatic preset: SSM You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3). -
Page 7: Manual Preset
Manual preset You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually. EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band Repeat the above procedure to store other stations into other preset numbers. -
Page 8: Tuning Into A Preset Station
Tuning into a preset station You can easily tune into a preset station. Remember that you must store stations first. If you have not stored them yet, see pages 6 and 7. Select the band (FM1, FM2, FM3 or AM) you want. -
Page 9: Other Convenient Tuner Functions
Other convenient tuner functions SCAN Scanning broadcast stations When you press SCAN while listening to the radio, station scanning starts. Each time a broadcast is tuned in, scanning stops for about 5 seconds (tuned frequency number flashes on the display), and you can check what program is now being broadcast. If you want to listen to that program, press the same button again to stop scanning. -
Page 10: Cd Operations
CD OPERATIONS Playing a CD Total playing time of the inserted disc Note on One-Touch Operation: When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically. CAUTION on Volume Setting CDs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. -
Page 11: Locating A Track Or Particular Portion On A Cd
Locating a track or particular portion on a CD SSM ¢ SSM 4 To fast forward or reverse the track Press and hold SSM ¢ Press and hold SSM 4 To go to the next track or the previous track Press SSM ¢... -
Page 12: Selecting Cd Playback Modes
Selecting CD playback modes To play back tracks at random (Random Play) You can play back all tracks on the CD at random. Each time you press MO RND (Mono/Random) while playing a CD, CD random play mode turns on and off alternatively. When the random mode is turned on, the RND indicator lights up on the display and a track randomly selected starts playing. -
Page 13: Sound Adjustments
SOUND ADJUSTMENTS Turning on/off the loudness function The human ear is less sensitive to low and high frequencies at low volumes. The loudness function can boost these frequencies to produce a well-balanced sound at low volume levels. Each time you press LOUD, the loudness function turns on and off alternatively. LOUD LOUD Selecting preset sound modes... -
Page 14: Adjusting The Sound
Adjusting the sound You can adjust the treble/bass sound and the speaker balance. Indication Adjust the bass (bass) Adjust the treble (treble) Adjust the front and rear speaker (Fader)* balance Adjust the left and right speaker (Balance) balance Adjust the volume (Volume) Note: * If you are using a two-speaker system, set the fader level to “00”... -
Page 15: Storing Your Own Sound Adjustments
Storing your own sound adjustments You can adjust the sound modes (BEAT, SOFT, POP: see page 13) to your preference and store your own adjustments in memory. SOUND Within 5 seconds LOUD Within 5 seconds Within 5 seconds SOUND Repeat the same procedure to store other settings. To reset to the factory settings Repeat the same procedure and reassign the preset values listed in the table on page 13. -
Page 16: Other Main Functions
OTHER MAIN FUNCTIONS Setting the clock DISP 2, 3 Press and hold the button for more than 2 seconds. “CLOCK H” or “CLOCK M” appears on the display. Set the hour. 1. Select “CLOCK H” if not shown on the display. - Page 17 To check the current clock time (changing the display mode) Press DISP repeatedly. Each time you press the button, the display mode changes as follows. During tuner operation: Frequency Clock • If the unit is not in use when you press DISP, the power turns on, the clock time is shown for 5 seconds, then the power turns off.
-
Page 18: Detaching The Control Panel
Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. How to detach the control panel Before detaching the control panel, be sure... -
Page 19: Maintenance
• After starting the heater in the car. • If it becomes very humid inside the car. Should this occur, the CD player may malfunction. In this case, eject the CD and leave the unit turned on for a few hours until the moisture evaporates. -
Page 20: Troubleshooting
The volume control is turned to the minimum level. Connections are incorrect. Signals are too weak. The antenna is not connected firmly. The CD player may function incorrectly. The built-in microcomputer may function incorrectly due to noise, etc. Remedies Insert the CD correctly. -
Page 21: Specifications
