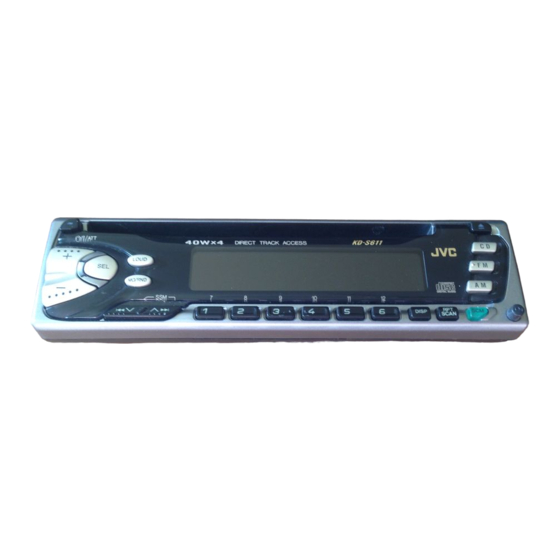

CD RECEIVER
CD-RECEIVER
RECEPTEUR CD
CD-RECEIVER
KD-S611
K D - S 6 11
COMPACT
DIGITAL AUDIO
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l'installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende
handleiding.
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
GET0005-001A
[E]

Advertisement

Table of Contents
loading

Related Manuals for JVC KD-S611

Summary of Contents for JVC KD-S611

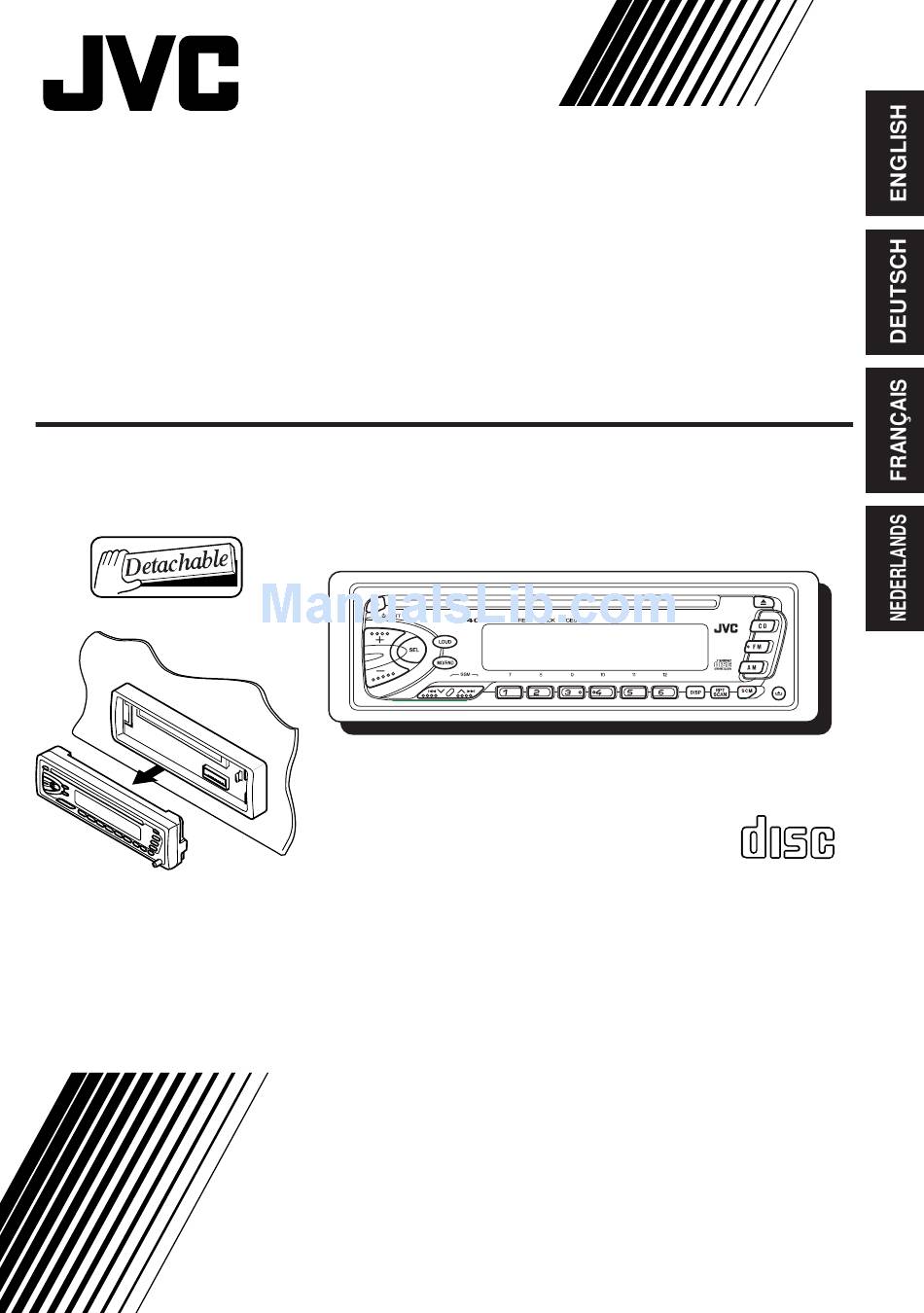

  • Page 1 CD RECEIVER CD-RECEIVER RECEPTEUR CD CD-RECEIVER KD-S611 K D - S 6 11 COMPACT DIGITAL AUDIO For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé.

  • Page 2: How To Reset Your Unit

    Position And Reproduction Of Labels Bottom panel of the main unit Name/Rating plate Caution: This product contains a laser component of higher laser class than Class 1. How to reset your unit Press and hold both the SEL (Select) and (Standby/On/ATT) buttons at the same time for several seconds.

  • Page 3: Table Of Contents

    Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS How to reset your unit ... 2 BASIC OPERATIONS ... 4 RADIO OPERATIONS ...

  • Page 4: Basic Operations

    BASIC OPERATIONS /I/ATT Note on One-Touch Operation: When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. Adjust the sound as you want (see pages 13 – 18). To drop the volume in a moment Press briefly while listening to any source.

  • Page 5: Radio Operations

    RADIO OPERATIONS Listening to the radio To search stations of higher frequencies. To search stations of lower frequencies. To stop searching before a station is received, press the same button you have pressed for searching. To tune in a particular frequency without searching: 1 Select the band (FM or AM).

  • Page 6: Storing Stations In Memory

    Storing stations in memory You can use one of the following two methods to store broadcasting stations in memory. • Automatic preset of FM stations: SSM (Strong-station Sequential Memory) • Manual preset of both FM and AM stations FM station automatic preset: SSM You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

  • Page 7: Manual Preset

    Manual preset You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually. EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band Repeat the above procedure to store other stations into other preset numbers.

  • Page 8: Tuning Into A Preset Station

    Tuning into a preset station You can easily tune into a preset station. Remember that you must store stations first. If you have not stored them yet, see pages 6 and 7. Select the band (FM1, FM2, FM3 or AM) you want.

  • Page 9: Other Convenient Tuner Functions

    Other convenient tuner functions MO/RND RPT/SCAN Scanning broadcast stations When you press RPT/SCAN while listening to the radio, station scanning starts. Each time a broadcast is tuned in, scanning stops for about 5 seconds (tuned frequency number flashes on the display), and you can check what program is now being broadcast. If you want to listen to that program, press the same button again to stop scanning.

  • Page 10: Cd Operations

    CD OPERATIONS Playing a CD Total playing time of the inserted disc Note on One-Touch Operation: When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically. CAUTION on Volume Setting CDs produces very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level.

  • Page 11: Locating A Track Or A Particular Portion On A Cd

    Locating a track or a particular portion on a CD To fast forward or reverse the track Press and hold Press and hold 4 To go to the next track or the previous track Press of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

  • Page 12: Selecting Cd Playback Modes

    Selecting CD playback modes To play back tracks at random (Random Play) You can play back all tracks on the CD at random. Each time you press MO/RND (Mono/Random) while playing a CD, CD MO/RND random play mode turns on and off alternatively. When the random mode is turned on, the RND indicator lights up on the display and a track randomly selected starts playing.

  • Page 13: Sound Adjustments

    SOUND ADJUSTMENTS Adjusting the sound You can adjust the sound characteristics to your preference. Indication Adjust the bass (Bass) Adjust the treble (Treble) Adjust the front and rear speaker (Fader)* balance Adjust the left and right speaker (Balance) balance Adjust the volume (Volume) Note: * If you are using a two-speaker system, set the fader level to “00”...

  • Page 14: Turning On/Off The Loudness Function

    Turning on/off the loudness function The human ear is less sensitive to low and high frequencies at low volumes. The loudness function can boost these frequencies to produce a well-balanced sound at low volume levels. Each time you press LOUD, the loudness function turns on/off alternatively. LOUD...

  • Page 15: Using The Sound Control Memory (Scm)

    Using the Sound Control Memory (SCM) You can select and store a preset sound adjustment suitable to each playback source. (Advanced SCM) Selecting and storing the sound modes Once you select a sound mode, it is stored in memory, and will be recalled every time you select the same source.

  • Page 16: Recalling The Sound Modes

    Recalling the sound modes Notes: • You can adjust each sound mode to your preference, and store it in memory. If you want to adjust and store your original sound mode, see “Storing your own sound adjustments” on page 18. •...

  • Page 17: Canceling Advanced Scm

    Canceling Advanced SCM You can cancel the Advanced SCM (Sound Control Memory), and unlink the sound modes and the playback sources. When shipped from the factory, a different sound mode can be stored in memory for each source so that you can change the sound modes simply by changing the sources. LINK ON: Advanced SCM (different SCMs for different sources) LINK OFF: Conventional SCM (one SCM for all sources)

  • Page 18: Storing Your Own Sound Adjustments

    Storing your own sound adjustments You can adjust the sound modes (BEAT, SOFT, POP: see page 15) to your preference and store your own adjustments in memory. Within 5 seconds LOUD Within 5 seconds Within 5 seconds Repeat the same procedure to store other settings. To reset to the factory settings Repeat the same procedure and reassign the preset values listed in the table on page 15.

  • Page 19: Other Main Functions

    OTHER MAIN FUNCTIONS Setting the clock 2,3 1,4 2,3 To check the current clock time (changing the display mode) Press DISP repeatedly. Each time you press the button, the display mode changes as follows. During tuner operation: Clock Frequency • If the unit is not in use when you press DISP, the power turns on, the clock time is shown for 5 seconds, then the power turns off.

  • Page 20: Selecting The Level Display

    Selecting the level display You can select the level display according to your preference. When shipped from the factory, “VOL 2” is selected. VOL 1: Shows the volume level indicator and the equalization pattern indicator. VOL 2: Alternates “VOL 1” setting and illumination display. OFF: Erase the volume level indicator and the equalization pattern indicator.

  • Page 21: Detaching The Control Panel

    Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. How to detach the control panel Before detaching the control panel, be sure...

  • Page 22: Maintenance

    MAINTENANCE Handling CDs This unit has been designed only to reproduce the CDs bearing the Other discs cannot be played back. How to handle CDs When removing a CD from its case, press down the center holder of the case and lift the CD out, holding it by the edges.

  • Page 23: Troubleshooting

    TROUBLESHOOTING What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • CD cannot be played back. • CD sound is sometimes interrupted. • “NO DISC” appears on the display. • Sound cannot be heard from the speakers.

  • Page 24: Specifications

    SPECIFICATIONS AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 40 watts per channel Rear: 40 watts per channel Continuous Power Output (RMS): Front: 16 watts per channel into 4 to 20 000 Hz at no more than 0.8% total harmonic distortion. Rear: 16 watts per channel into 4 to 20 000 Hz at no more than 0.8% total harmonic distortion.
  • Page 25 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit Haben Sie PROBLEME mit dem Betrieb? Bitte setzen Sie Ihr Gerät zurück Siehe Seite Zurücksetzen des Geräts Vous avez des PROBLÉMES de fonctionnement? Réinitialisez votre appareil Référez-vous à...

  • Page 26: In-Dash Mounting

    Sie entsprechend Ihrem jeweiligen Auto Anpassungen vornehmen. Bei irgendwelchen Fragen oder wenn Sie Informationen hinsichtlich des Einbausatzes brauchen, wenden Sie sich an ihren JVC Autoradiohändler oder ein Unternehmen das diese Einbausätze vertreibt. Vor dem Einbau: Drücken Sie (Freigabe der...
  • Page 27 • When using the optional stay • Beim Verwenden der Anker-Option • Lors de l'utilisation du hauban en option Washer Dashboard Unterlegscheibe Armaturenbrett Rondelle Tableau de bord Sleeve Halterung Manchon Removing the unit • Before removing the unit, release the rear section. Remove the control panel.

  • Page 28: Electrical Connections

    V Gleichstrom und (–) Erdung ausgelegt. Verfügt Ihr Fahrzeug nicht über diese Anlage, ist ein Spannungsinverter erforderlich, der bei JVC Auto rad iohändler erworben werden kann. • Die Sicherung mit einer der entsprechenden Nennleistung ersetzen. Brennt die Sicherung häufig durch, wenden Sie sich an ihren JVC Autoradiohändler.
  • Page 29 Connections Adding Other Equipment / Anschlüsse zum Hinzufügen von anderer Ausrüstung / Raccordement pour ajouter d’autres appareils Since this unit has line-out terminals, an amplifier and other equipment can be used to upgrade your car stereo system. • Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.
