- Page 1 CASSETTE RECEIVER !"#$ «‘ ∑ ¬ÿ ‡ §√◊ Ë Õ ß‡≈Ë π ‡∑ª KS-F161 For installation and connections, refer to the separate manual. !"#$%&'()*+,-./0 °√ÿ ≥ “¥Ÿ § Ÿ Ë ¡ ◊ Õ ∑’ Ë · ¬°µË “ ßÀ“° „π°“√µ‘ ¥ µ— È ß ·≈–°“√‡™◊ Ë Õ ¡µË Õ...
-
Page 2: Table Of Contents
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS How to reset your unit ... LOCATION OF THE BUTTONS ... -
Page 3: Location Of The Buttons

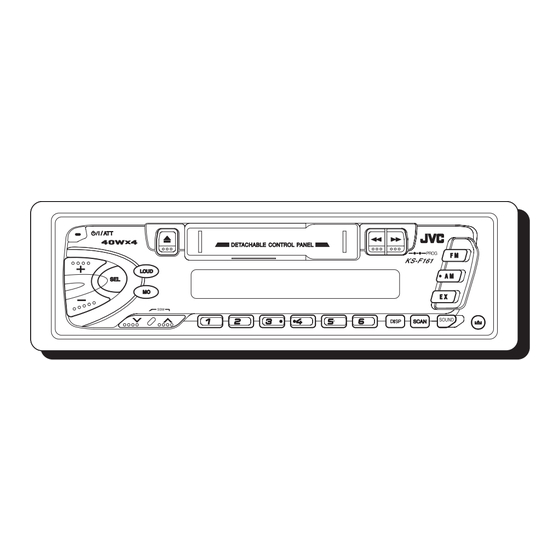

LOCATION OF THE BUTTONS Control panel Display window MOST (Standby/On/Attenuator) button 2 +/– button 3 LOUD (Loudness) button 4 0 (Eject) button 5 Cassette compartment 6 1 / ¡ (PROG program) button 7 Ex button 8 AM button 9 FM button p SEL (Select) button buttons •... -
Page 4: Basic Operations
BASIC OPERATIONS Turning on the power Turn on the power. /I/ATT Note on One-Touch Operation: • When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. •... -
Page 5: Radio Basic Operations
Listening to the radio You can use either automatic searching or manual searching to tune into a particular station. Note: When a cassette is in the cassette compartment, you cannot select the tuner. Be sure to eject the cassette from the cassette compartment to listen to the radio. -
Page 6: Storing Stations In Memory
Tune into a station you want while “M” is flashing. To tune into stations of higher frequencies. To tune into stations of lower frequencies. • If you release your finger from the button, the manual mode will automatically turn off after 5 seconds. -
Page 7: Storing Your Favorite Stations Into The One-Touch Operation Button (Ex-Extra)
Manual preset You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually. Ex.: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band. Select the band (FM 1 – 3, AM) you want to store Stations into (in this example, FM 1). -
Page 8: Tuning Into A Preset Station
Note: • A previously preset station is erased when a new station is stored in the EX button. • The preset station is erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the station again. -
Page 9: Tape Operations
TAPE OPERATIONS Listening to a cassette You can playback type 1 (normal) tapes. Turn on the power. /I/ATT Note on One-Touch Operation: If a cassette is already in the cassette compartment, tape play starts automatically. However, it is not recommended to leave the cassette in the compartment when turning off the power or ignition key. -
Page 10: Sound Adjustments
SOUND ADJUSTMENTS Turning on/off the loudness function The human ear is less sensitive to low and high frequencies at low volumes. The loudness function can boost these frequencies to produce a well-balanced sound at low volume levels. Each time you press LOUD, the loudness function turns on/off alternatively. -
Page 11: Storing Your Own Sound Adjustments
Storing your own sound adjustments You can adjust the sound modes (BEAT, POP, SOFT: see page 10) to your preference and store your own adjustments in memory. • There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again. -
Page 12: Other Main Functions
OTHER MAIN FUNCTIONS Setting the clock Press and hold the button for more than 2 seconds. “CLOCK H” or “CLOCK M” appears on the display. Set the hour. 1. Select “CLOCK H” if not shown on the display. 2. Adjust the hour. Set the minute. -
Page 13: Detaching The Control Panel
Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. How to detach the control panel Before detaching the control panel, be sure to turn off the power. -
Page 14: Maintenance
MAINTENANCE This unit requires very little attention, but you will be able to extend the life of the unit if you follow the instructions below. To clean the heads • Clean the heads after every 10 hours of use using a wet-type head cleaning tape (available at an audio store). -
Page 15: Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • A cassette tape cannot be inserted. • Cassette tapes become hot. • Tape sound is at very low level and sound quality is degraded. -
Page 16: Specifications
SPECIFICATIONS AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 40 watts per channel Rear: 40 watts per channel Continuous Power Output (RMS): Front: 16 watts per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. 16 watts per channel into 4 Ω, Rear: 40 Hz to 20 000 Hz at no more than... - Page 17 KS-F161 ÆqBHM*« ULOKF²Ã« VO²Â WFł« dÄ vł d¹ ¨ öO u²Ã« Ë VO d²Ã« UOKLFà ULOKF²Ã« qOÃœ EN, CH, TH, AR 1001KKSFLEJEIN...
- Page 18 • installation. However, you should make adjustments corresponding to your specific car. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits. Before mounting: Press (Control Panel Release button) to detach the control panel.
- Page 19 • When using the optional stay !"# • ‡¡◊ Ë Õ „™È µ — « ¬÷ ¥ ·∫∫‡≈◊ Õ °‰¥È • Washer Dashboard Sleeve Removing the unit • • Before removing the unit, release the rear section. Remove the control panel. Remove the trim plate.
-
Page 20: Electrical Connections
JVC car audio dealers. • • Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC • car audio dealer. • If noise is a problem... - Page 21 !"#$%&'()*+,!- # !"#$%&'() !"#$ – !"#$%&'" ()*+,-. Remote lead !" !" JVC amplifier Blue with white stripe LINE OUT Purple with black stripe / Purple (Not used) KS-F161 REAR Green with black stripe / Green (Not used) Fig. 3 !"#$%&'()*+,-.'!/0123...
