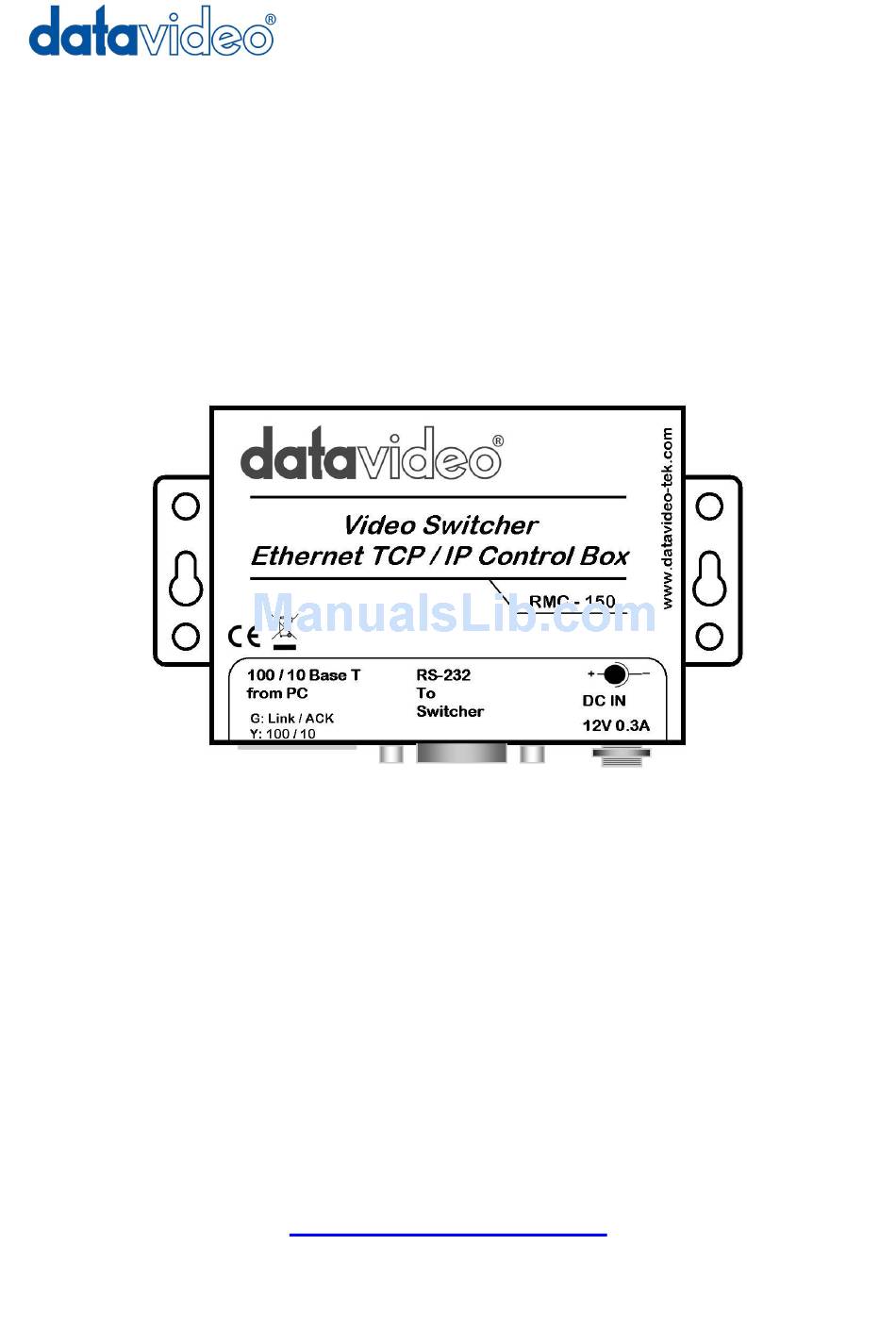

- Page 1 RMC150 RS232 Ethernet Controller For SE500 Instruction Manual www.datavideotek.com Rev 260308...
-
Page 2: Table Of Contents
Table of contents Warnings and Precautions 2 Warranty 3 Disposal3 Packing List 4 Introduction 4 Features 4 Connections 5 Front Panel 5 Operation 6 Specification 8 Service and Support 9... -
Page 3: Warnings And Precautions 2
1. Read all of these warnings and save them for later reference. 2. Follow all warnings and instructions marked on this unit. 3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this unit in or near water. 5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage. 6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a builtin installation unless proper ventilation is provided. 7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. 8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed. 9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord’s rating. 10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes. 11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit. 12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to ... -
Page 4: Warranty 3
Warranty Datavideo warrants that the equipment it manufactures shall be free from defects in material and workmanship for a period of 12 months from the date of product purchased. If equipment fails due to such defects, Datavideo will, at its option, repair or provide a replacement for the defective part or product. Equipment that fails after the warranty period, has been operated or installed in a manner other than that specified by Datavideo, or has been subjected to abuse or modification, will be repaired for time and material charges at the Buyer’s expense. This warranty does not affect your statutory rights within the Country of purchase. Disposal For EU Customers only WEEE Marking. This symbol on the product indicates that it will not be treated as household waste. It must be handed over to the applicable takeback scheme for the recycling of electrical and electronic equipment. For more detailed information about the recycling of this product, please contact your local Datavideo office. -
Page 5: Packing List 4
Packing List: The following items should be included in the box. If any items are missing please contact your supplier. 1 x RMC150 1 x Ethernet Cable 1 x Sub D 9 Pin RS 232 Cable 1 x RMC150 Software CD 1 x 12v 500mA PSU 1 x Instruction Manual Introduction The Datavideo RMC150 is a remote control box for the SE500. It allows the SE500 to be controlled from a PC via an Ethernet connection. Features Ethernet to RS232 remote controller for the Datavideo SE500 LED Ethernet Communication Indicator Compact design Built in mounting plate for easy installation Locking 2.1mm inline DC In socket 12V 300mA power requirement (12V 500mA PSU supplied). -
Page 6: Connections 5
Connections Front Panel Ethernet Port Connect this to the Ethernet connection of your PC or to a hub. The green LED indicates connection and the yellow LED indicates activity. N.B. If you are connecting directly to a PC (not via a hub) please use a CAT 5 Crossover Cable (not supplied). RS232 Port Connect this to your SE500 vision mixer RS232 Control Port, with the supplied cable. Power In Socket Connect the supplied power supply to this socket. Please note the socket is labelled 12v 300mA whereas the power supply is 12V 500mA, this is intentional. -
Page 7: Operation 6
Operation Go into the setup menu of your SE500 and set the remote mode to RS232C control. Please refer to your SE500 Instruction Manual for further details. Copy the files on the supplied CD to your PC. The default IP Address for the RMC150 is 192.168.0.100, and the remote port 1024. In order to communicate with the RMC150 your PC must be set to an appropriate IP Address. Go into Network Connections on your PC and set the IP Address to a suitable value. As an example: IP Address 192 .168 .0 .90 Subnet Mask 255 .255 .255 .0 Default Gateway 192 .168 .0 .0 Open the folder RMC_150_UI and double click on SE500.exe to launch the User Interface (UI) Once the UI is displayed right click anywhere on the UI, and from the drop down menu select options... - Page 8 The Options Menu will appear To connect to the SE500 click on OK. If the connection is established the virtual buttons on the UI will light up the same as the actual SE500. You can now control the SE500 by clicking on the virtual buttons. To close the application, right click anywhere on the UI and select EXIT from the drop down menu.
- Page 9 If the RMC150 fails to make contact with the SE500 you will see this warning. You will also notice that the virtual buttons do not light up. The most likely causes of this are: You are not using the correct type of CAT 5 cable Crossover for connection directly between the RMC150 and a PC / Straight through for connection via a hub. Your PC is not set to an appropriate IP Address. Go into network settings and set the IP address correctly.
-
Page 10: Specification 8
Specifications Cat 5 RJ45 Input 100/10 Base T RS232 Sub D 9 Pin I/O Port DC In Socket 2.1mm InLine DC Jack (Lockable) Dimensions (Incl. Mounting Plate) 10 x 6.7 x 2.4 cm L x W x D Weight 176g Specifications are subject to change without notice... -
Page 11: Service And Support 9
Service and Support It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideotek.com for answers to common questions, support requests or contact your local office below. Datavideo Corporation (USA) 12300U East Washington Blvd., Whittier, CA 90606 USA Tel: +1 562 696 2324 contactus@datavideo.us www.datavideo.us Datavideo Technologies Europe BV Floridadreef 106, 3565 AM Utrecht, The Netherlands Tel: +31 30 261 9656 info@datavideo.nl www.datavideo.info Datavideo UK Limited Unit 2 Waterside Business Park, Hadfield, Glossop, Derbyshire SK13 1BE UK Tel: +44 1457 851000 sales@datavideo.co.uk www.datavideo.info Datavideo Technologies Co., Ltd. 10F, 176 JianYi Rd, Chung Ho City, Taipei Hsien, Taiwan 235 Tel: +886 2 8227 2888 service@datavideo.com.tw www.datavideo.com.tw Datavideo Technologies China Co. 2FD, 2 Lane 777, West Guangzhong Rd, Zhabei District, Shanghai, China Tel: +86 21 5603 6599 service@datavideo.cn www.datavideo.cn Datavideo Technologies (S) PTE Ltd. No. 100, Lorong 23 Geylang, #0103 D’Centennial Bldg, Singapore 388398 Tel: +65 6749 6866 info@datavideo.sg www.datavideo.info Datavideo Hong Kong Limited G/F., 26 Cross Lane, Wanchai, HK Tel: +852 2833 1981 info@datavideohk.com www.datavideohk.com...
