Datavideo TPC-700 Instruction Manual

Datavideo TPC-700 Instruction Manual

Touch panel controller
Hide thumbs Also See for TPC-700:
Table of Contents

Advertisement

Quick Links

TOUCH PANEL
CONTROLLER
TPC-700

Advertisement

Table of Contents
loading

Related Manuals for Datavideo TPC-700

Summary of Contents for Datavideo TPC-700

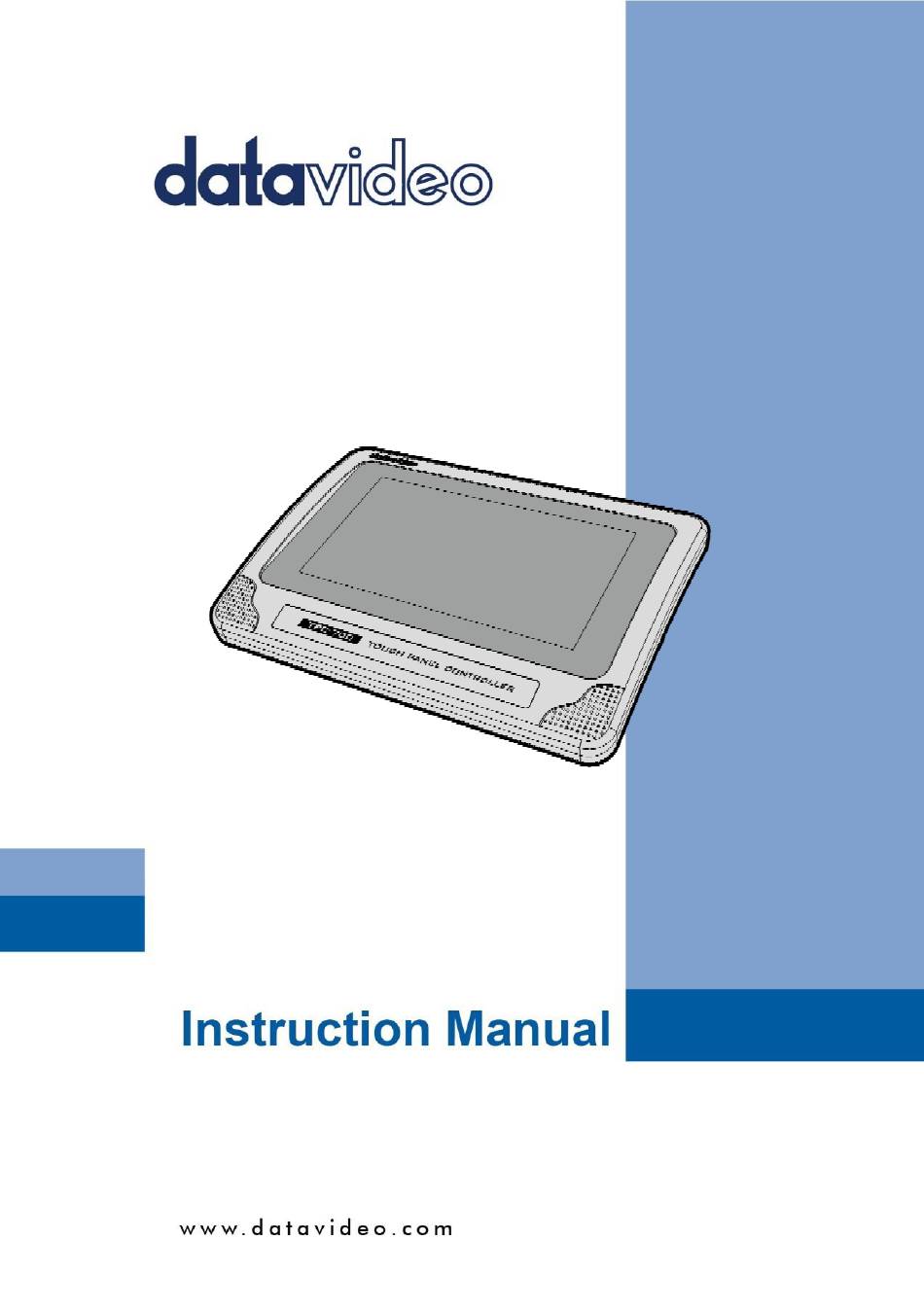

  • Page 1 TOUCH PANEL CONTROLLER TPC-700...

  • Page 2: Table Of Contents

    5.3 H ......24 OW TO ESTORE THE ETWORK ETTINGS EFAULT ALUES CHAPTER 6 THE 8 PRE-SAVED VIRTUAL SCENES FOR THE SE-3200 & TPC-700 COMBINATION .................... 26 6.1 T SE-3200 & TPC-700 C ..27 NPUT NTERFACE ETTINGS FOR THE OMBINATION 6.2 T...
  • Page 3 Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information.

  • Page 4: Warnings And Precautions

    7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 5: Warranty

    Warranty Standard Warranty  Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.  The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.

  • Page 6: Three Year Warranty

    Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.  The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

  • Page 7: Disposal

    Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 8: Chapter 1 Introduction

    700 can trigger the internal virtual scenes directly by combining the 6 Channel inputs (HDMI/SDI) with the multi-camera performance in the virtual studio. The TPC-700 can control the SE-3200 in the future for triggering a variety of virtual scenes and each detailed setting.

  • Page 9: Chapter 2 System Diagram

    Chapter 2 System Diagram...

  • Page 10: Chapter 3 Connections

    Chapter 3 Connections This chapter will show you the connections of the TPC-700 Touch Panel Controller. For the details of the TPC-700, please refer to following chapters. 3.1 Front View Interface Description Touch Panel This is the touch panel of the TPC-700 touch panel...

  • Page 11: Rear View

    3.2 Rear View Interface Description Rear Panel This is the rear panel of the TPC-700 Touch Panel Controller. It provides standard VESA 10cm x 10cm & 7.5cm x .7.5cm mounting holes.

  • Page 12: Left View

    RJ-45 Ethernet Interface（for RS-232 Control only） This RJ-45 interface is for RS-232 Control only. If users use the TPC-700 to control the SE-3200, it is no need for this interface to connect due to that the TPC-700 adopts the DVIP protocol to control the SE-3200.

  • Page 13: Right View

    DVIP protocol. ON/OFF Power Switch Users can turn on or turn off the power of the TPC-700 by this switch.

  • Page 14: Chapter 4 Basic Setup

    Chapter 4 Basic Setup Before using the TPC-700 to control other devices, please make sure that the basic setup of the TPC-700 is done. This chapter will make the SE-3200 HD 12-Channel Digital Video Switcher as an example for explaining how to set the basic setup between the TPC-700 and the SE- 3200.

  • Page 15: Chapter 5 Network Settings

    “Network and Software Setup for Switcher” in the SE-3200 user manual to know the IP address, subnet mask and default gateway of the SE-3200. And then please set the IP address of the TPC-700 to be within the same IP range for further operation.
  • Page 16 Please follow following steps for operation. 1. After opening the TPC-700 interface, please select the “Setup” option. 2. Please press the “Network” button.
  • Page 17 3. Please select the “Static” from the “Addr Mode” drop-down menu. 4. Please press the “IP Addr” to enter the IP address which is within the same IP range as the SE-3200.
  • Page 18 5. Please press the “Network Mask” and the “Gateway” respectively and then please set those two items to be the same value as the SE-3200.
  • Page 19 6. Please press the “Save” button. 7. Please press the “Connect” button.
  • Page 20 8. Please press the “Scan” button and then it will scan the IP address of the connected device. 9. Please press the “Connect” button for completing the connection.

  • Page 21: Connect By Dhcp

    5.2 Connect by DHCP Please follow following steps for connecting the TPC-700 and the SE-3200 by the DHCP Mode. 1. Please open the TPC-700 interface and then please press the “Setup” option. 2. Please press the “Network” button.
  • Page 22 3. Please press the “DHCP” from the drop-down menu and then please press the “Save” button. 4. Please press the “Connect” button.
  • Page 23 5. Please press the “Scan” button and then it will scan the IP address of the connected device. 6. Please press the “Connect” button for completing the connection.

  • Page 24: How To Restore The Network Settings Default Values

    5.3 How to Restore the Network Settings Default Values Please follow following steps for restoring the TPC-700 network related settings to default values. 1. Please open the TPC-700 App and then please press the “Setup” option. 2. Please press the “Network” button.
  • Page 25 3. Please press the “Network Def” button. 4. The following dialogue box will appear. Please press the “Yes” button and then the network related settings will be restored to factory default values successfully.

  • Page 26: Chapter 6 The 8 Pre-Saved Virtual Scenes For The Se-3200 & Tpc-700 Combination

    700 combination allows users to recall the pre-saved 4-camera EFP Chromakey effect virtual scenes easily and rapidly. The default setting for the TPC-700 is that the TPC-700 will recall the No. 101~No. 108 virtual scenes that are pre-saved in the SE-3200. So, please follow following steps for setting the related “User Memory”...

  • Page 27: The Input Interface Settings For The Se-3200 & Tpc-700 Combination

    6.1 The Input Interface Settings for the SE-3200 & TPC-700 Combination Before recalling the No. 108 to No. 108 user memories’ virtual scenes, users need to know the corresponding relationship between each interface of the SE-3200 rear panel and the elements for each pre- saved virtual scene.
  • Page 28  SDI IN 2 Please set the Camera 2 in the middle to shoot the close- （CH2） up for the talent and guests who are sitting in front of the green mat.  SDI IN 3 The Camera 3 must be set on the right side to shoot the close-up for the talent who is sitting in front of the green （CH3）...
  • Page 29  SDI IN 4 The Camera 4 must be set on the left side to shoot the close-up for the guests who are sitting in front of the （CH4） green mat. The built-in virtual scene from the SE-3200(Wide Angle virtual scene) The built-in virtual scene from the SE-3200(The close-up picture is located in the middle)

  • Page 30: He Re Saved Virtual Scenes For The Se-3200 And Tpc-700 Combination

    Please connect a PC to the HDMI IN9 interface of the SE- 3200(CH9)(for playing slides or videos) 6.2 The 8 Pre-saved virtual scenes for the SE-3200 and TPC- 700 Combination User Combination of Final Composite Screen Screen Elements Wide Angle with Full-Body Chromakey with Virtual Scene Background （CH1 Chromakey+CH5...
  • Page 31 Talent A Close-up Half-Body Talent A Chromakey with Virtual with Background Scene （CH3 Chromakey+CH7 Virtual Scene） Talent B Close-up Talent B Chromakey with Virtual Scene with Background （CH4 Chromakey +CH8 Virtual Scene） Talent A+PC Source Talent A Half-Body + Content （CH3 Chromakey+CH9 Background）...
  • Page 32 Talent B+ PC Source Talent B Half-Body +Content （CH4 Chromakey+CH9 Background） Talent A Close-up Talent A Half-Body Chromakey with Virtual with Background+ PC Scene+ Content Source)（CH3 Chromakey +CH7 Background+CH9 PIP） Talent B Close-up Talent B Half-Body Chromakey with Virtual with Background +PC Scene+ Content Source（CH4 Chromakey+CH8...

  • Page 33: Chapter 7. How To Set The Chromakey, Save A Still To Memory, P-In-P And Still Functions

    It is necessary to use the Chromakey and Still related functions of the SE-3200 for controlling the SE-3200 and for recalling the pre-saved virtual scenes directly by the TPC-700. For the setting details and the operating steps, please refer to the 4.2 Keyer, 4.3 Chroma, 4.4 P-In-P and the Still related paragraphs of the 4.9 Files from the SE-3200 user...

  • Page 34: Chapter 8 Introduction Of The Se-3200 App Interface For The Tpc-700

    8.1 Virtual Scenes The Virtual Studio option allows users to recall the pre-saved No. 101 to No. 108 User Mems settings in the SE-3200 by the TPC-700. There are 8 virtual scenes can be used by users including “Wide Angle with background”, “Close-up with background”, “Talent A close-up with...
  • Page 35 effects of those 8 different virtual scenes will be listed as following diagrams for users’ reference. 1. Wide Angle with background 2. Close-up with background...
  • Page 36 3. Talent A close-up with background 4. Talent B close-up with background...
  • Page 37 5. Talent A + PC Source 6. Talent B + PC Source...
  • Page 38 7. Talent A close-up with background + PC Source. 8. Talent B close-up with background + PC Source.

  • Page 39: How To Recall The Pre-Saved Virtual Scenes By The Tpc-700

    1. Please make sure that all of the 8 virtual scenes are saved into the No. 101 to No.108 User Mems in advance. Moreover, please make sure that the SE- 3200 main unit, the control panel, the TPC-700 and the router are connected correctly.

  • Page 40: How To Use The "Aux" Function

    8.2.1 How to Use the “AUX” Function Please follow following steps for using the “AUX” function. 1. Please select your desired output interface for outputting the signal source from the “OUTPUT” area. 2. Please select your desired signal source for output from the “SELECT” area. 3.

  • Page 41: Cross Point

    8.3 Cross Point The “Cross Point” option allows users to adjust the sequence of the input signals by themselves without changing any input cables. For example, users can assign the signal source which is originally connected to input 2 to be the signal source of input 1.
  • Page 42 Note：If you want to turn off the output of the “VIDEO XPT” area, please tap the “OFF” button. If you want to use the embedded audio of the output video as the output audio source, please tap the “Follow” button. ...
  • Page 43 2. Users can enter the “PGM AUDIO SETTING” interface to adjust the audio Gain and audio Delay.  How to Use the “PGM AUDIO SETTING” Interface 1. Please tap the No.1 arrow to decrease the Audio Gain and Audio Delay. 2.

  • Page 44: Flex Source

    3. Please tap the No. 3 slider to increase or decrease the Audio Gain and Audio Delay by dragging the No.3 slider forward or backward. 4. Please tap the No. 4 “OK” button to make the setting effective and to go back to the previous screen.

  • Page 45: How To Use The Flex Source Function

    8.4.1 How to Use the Flex Source Function Please follow following steps for using the Flex Source function. How to Set the Background Picture for the Flex Source 1. At first, please tap the “Src Bgnd” button which is located at the “FLEX 1” area to select the background function for the Flex Source.
  • Page 46 5. Please tap the left or the right arrow button to adjust the scale of the “X”, “Y” or “SIZE”. Note: When the X, Y or Size character become orange, users can tap that character once again and then the character will become light blue. When the character becomes light blue, users are forbidden to adjust the scale of X, Y or SIZE.

  • Page 47: Pip

    Note: If users do not want to show the same PIP screens on both FLEX 1 and FLEX 2, please remember to use the ON/OFF button to hide the repetitive PIP screens. 8.5 PIP The main interface of the PIP option allows users to set the PIP related functions.

  • Page 48: Setup

    X, Y or SIZE. 8.6 Setup The built-in SE-3200 control interface of the TPC-700 allows users to set many parameters including Language, Network, Connect, FW Version and Model. The main interface for the Setup is shown as following diagram.
  • Page 49 1. Language: This button allows users to select three different language interfaces including Traditional Chinese, English and Simplified Chinese.  Please tap this “Language” button  After that, users can select their desired language. If the “Save” button is pressed, it will go back to previous page after the setting is saved. If the “Cancel”...
  • Page 50 1. Addr Mode：Please select Static IP Mode or DHCP Mode from this drop- down menu. 2.Direct Connect：This is the Direct Connect button. 3. IP Address, Network Mask, Gateway, Primary DNS and Secondary DNS.  Once the IP Addr, Network Mask, Gateway, Primary DNS or Secondary DNS is pressed, the keyboard which is shown as following diagram will be shown for users to enter related values.
  • Page 51  Please press the “Scan” button and then it will scan current IP address. Press the “Connect” button for connecting the TPC-700 to the SE-3200. 4. FW Version：This will show current firmware version. 5. Model：This will show the model name of the current connected and controlled device.

  • Page 52: Chapter 9. Firmware Update

    2. Please unzip the downloaded firmware “TPC700_SE-3200_v x.x.x”in your PC or laptop. 3. There is a folder which the folder name is “datavideo” after the firmware is unzipped. There are two files including “TPC700_VGB1200” and “update” in that datavideo folder.
  • Page 53 Note: After the firmware update is finished, there is a file which the file name is “done” will be generated automatically by the TPC-700 system and will be saved in your USB thumb drive. If users want to update the same version of the firmware for the next time, please remember to delete that “done”...

  • Page 54: Chapter 10. Dimensions

    Chapter 10. Dimensions Unit: mm...

  • Page 55: Chapter 11. Specifications

    Chapter 11. Specifications TPC-700 Specifications Touch Screen 7” capacitive touch screen Touch Screen 800 x 480 Resolution Firmware Upgrade via USB 2.0 interface Control Protocol via RS-232(RJ-45 interface) Power DC 12V Power Consumption 220 x 152 x 79 (mm) Dimension Weight 0.85Kg...

  • Page 56: Service And Support

    Datavideo Technologies Co., Ltd. All rights reserved 2020 Apr.-20.2020 Ver:E2...
