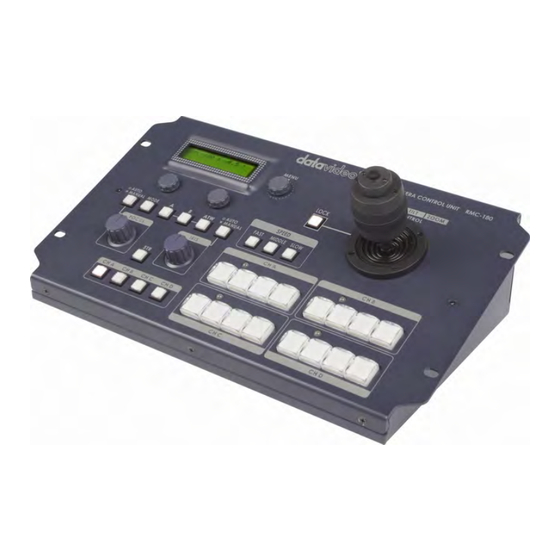

CCU Control Box
RMC-180
Quick Start Guide
www.datavideo-tek.com

Advertisement

Table of Contents
loading

Related Manuals for Datavideo RMC-180

Summary of Contents for Datavideo RMC-180

  • Page 1 CCU Control Box RMC-180 Quick Start Guide www.datavideo-tek.com...

  • Page 2: Table Of Contents

    Table of Contents Warnings and Precautions ......................2 Warranty ............................. 3 Disposal ............................. 3 Packing List ..........................4 Introduction ..........................4 Features ............................. 4 Front Panel ..........................5 Step by step to save camera position ..................7 Menu Setup ..........................7 Rear Panel ..........................

  • Page 3: Warnings And Precautions

    7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 4: Warranty

    Datavideo warrants that the equipment it manufactures shall be free from defects in material and workmanship for a period of 12 months from the date of product purchased. If equipment fails due to such defects, Datavideo will, at its option, repair or provide a replacement for the defective part or product.

  • Page 5: Packing List

    The RMC-180 is special designed for remote controlling the Panasonic PTZ Camera AW-HE100 with the video calibration functions with it. One of RMC-180 can connect up to four of AW-HE100 by RJ-45 connection and up to 1,000 Meter distant away. To combine the Datavideo HD Switcher SE-2000 will be a turn key and affordable HD multi-Camera system for the application of big conference, church and surveillance market.

  • Page 6: Front Panel

    Front Panel 1. Focus 7. Lock 2. STR 8. Speed 3. CH A~D (Group Select) 9. MENU 4. IRIS 10. LCD Monitor 5. Ch A~D (Channel Select) 11. Selectors (No Function) 6. Controller 12. Mode Select...
  • Page 7 Three different modes for joystick control speed. Menu Menu button is setting the RMC-180 functions configuration. LCD Display The status of the RMC-180 is displayed within the LCD Display. Mode Select MODE – Color bar A,B – Save MODE A or MODE B...

  • Page 8: Step By Step To Save Camera Position

    Step by step to save camera position 1. Select group on CH A or CH B or CH C or CH D. 2. Push STR button , at same time you selected group will light on. 3. Push 1 of 4 light on button to save the camera position. Menu Setup 1.
  • Page 9 Step 4 - Push and turn button control the camera iris. 14. JOYSTICK SENSITIVITY Setting the joystick controls sensitivity. 18. RMC-180 FW VERSION Display the RMC-180 firmware version. 19. AW-HE100 FW VERSION Display the AW-HE100 firmware version. 20. EXIT Exit the set up menu mode.

  • Page 10: Rear Panel

    Rear Panel 1. Firmware Upgrade 2. RJ-45 Connect (To Camera) 3. Tally Input 4. Power input 12V 0.5A 5. Power On / Off switch Firmware Upgrade USB connect to computer for firmware upgrade. Camera connect (RJ-45) 4 RJ-45 ports connect to camera. Tally Input Send in red color tally signal to tally LED.

  • Page 11: Firmware Upgrade Procedure

    Firmware upgrade procedure 1. Power on RMC-180, and then connect USB port to computer. 2. Push (FOCUS AUTO / MANUAL, IRIS AUTO / MANUAL, CHA-1, CHC-4 KEY) at same time. 3. Reset RMC-180 Power. 4. RMC-180 LCD will display as below: RMC-180 Boot Loader Version 0.4...
  • Page 12 6. Into the ”RMC-180_U38”, and then delete ” bootcode.bin” file. 7. Paste “RMC180_PCBB_0v1c.bin” on the same place. 8. Reset Power, the RMC-180 LCD will display as below: CHANNEL A : Datavideo CAMERA: Failed ! RMC-180 for AW-HE100...

  • Page 13: Service & Support

    It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below.
