Table of Contents
Related Manuals for Minelab EXPLORER II
Summary of Contents for Minelab EXPLORER II

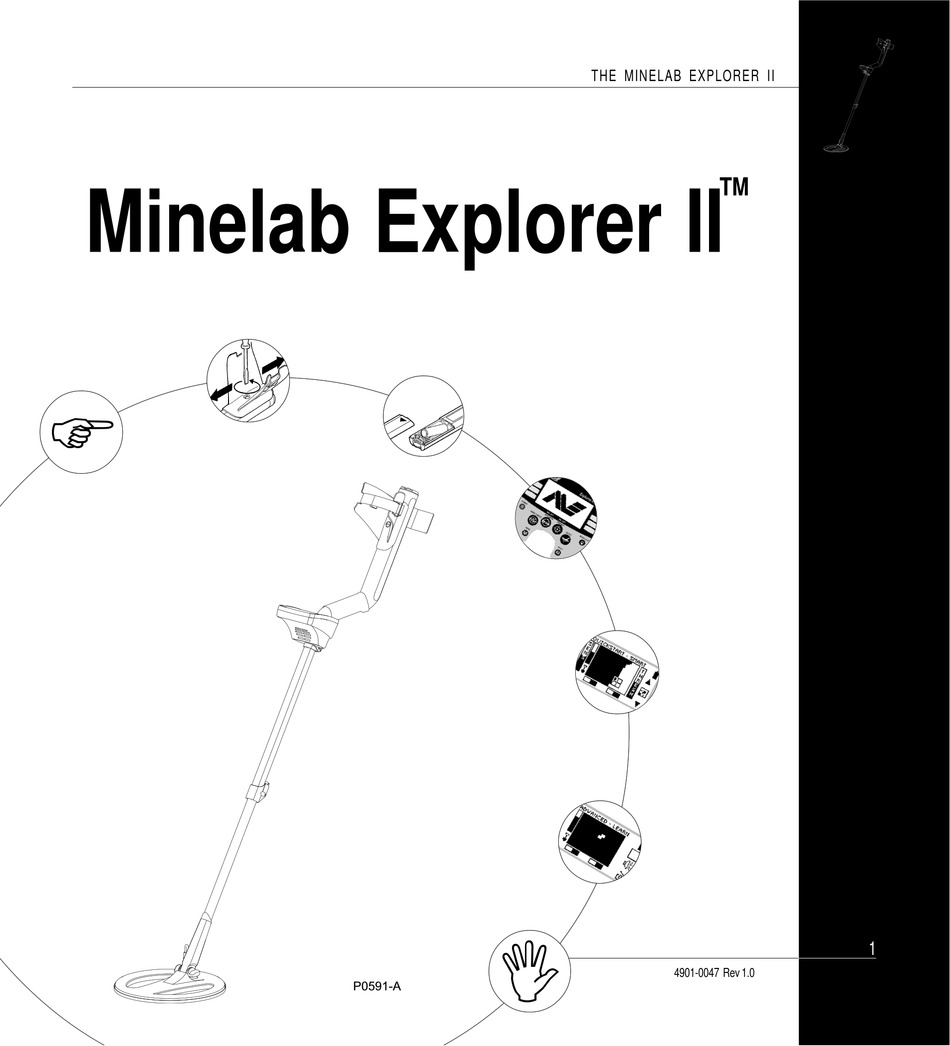

- Page 1 THE MINELAB EXPLORER II ™ Minelab Explorer II " 4901-0047 Rev 1.0 P0591-A...
- Page 2 Certain descriptions and illustrations may differ (in this manual) from the exact model that you purchased. In addition, Minelab reserve the right to respond to ongoing technical progress by introducing changes in design, equipment and technical features at any time.
-
Page 3: Table Of Contents
Introducing the Minelab Explorer II ......................3 Minelab’s unique technology ........................4 ASSEMBLY ..........................9 Unpacking your Explorer II [easy reference] ..................10 Unpacking your Explorer II ........................11 Assembling the detector ......................... 12 Connecting the search coil ........................13 The shaft assembly .......................... - Page 4 THE MINELAB EXPLORER II www.minelab.com contents TABLE OF CONTENTS QUICKSTART ........................37 Getting started ............................38 Beginner use ............................39 Quickstart display [easy reference] ....................... 40 Quickstart’s Smartfind display ....................... 42 The Iron Mask ............................45 Quickstart’s Digital display ........................47 Modifying the display ..........................
- Page 5 THE MINELAB EXPLORER II contents TABLE OF CONTENTS ADVANCED USE ......................... 67 Advanced mode’s Main Menu [easy reference] ................. 68 Starting in Advanced mode ........................69 Advanced Mode’s displays [easy reference] ..................70 Advanced mode’s Learn display [easy reference] ................71 Learning targets ............................
- Page 6 Advanced menu structure ........................97 Troubleshooting ............................98 Service repair form ..........................99 Warranty ............................... 101 Technical specifications for the Minelab Explorer II ................102 Explorer model features ........................103 Glossary of terms ..........................104 Detector care and safety ........................108...
-
Page 7: Introduction
THE MINELAB EXPLORER II Introduction The Explorer II is the most technologically advanced detector ever produced. It is possible to start treasure hunting as soon as you have assembled the detector, but it is worth familiarizing yourself with its many features. -
Page 8: About This Manual
However experienced you are at and this User’s Manual. using a metal detector, it is important that you read this chapter to understand how to use the Explorer II 2. ASSEMBLY in Quickstart mode. This chapter provides details and instructions on assembling and adjusting the Explorer II. -
Page 9: Introducing The Minelab Explorer Ii
Minelab Electronics wish you every success in your treasure hunting. Contact Minelab If you have any questions or comments regarding the Explorer II or any other Minelab product, please feel free to contact us via your local Authorized Minelab dealer, or write to us: Minelab Electronics Pty Ltd... -
Page 10: Minelab's Unique Technology
THE MINELAB EXPLORER II www.minelab.com MINELAB’S UNIQUE TECHNOLOGY The Explorer II is one of a new generation of detectors from Minelab. Its sleek, sturdy design, innovative control panel and comprehensive targeting options set it apart from any other detector available today. - Page 11 Turn the detector off and then PRESS AND HOLD THE POWER BUTTON until a six-note musical tune is sounded (rising C-major chord). The Minelab logo and the words ‘FACTORY PRESETS’ will be briefly displayed on the screen (as shown above).
- Page 12 THE MINELAB EXPLORER II www.minelab.com Full Band Spectrum (FBS) Discrimination When developing Full Band Spectrum (FBS) technology, Minelab’s scientists looked at improving the already successful Broad Band Discrimination is the ability of a Spectrum (BBS) technology used in previous Minelab detectors.
- Page 13 (e.g. 1.5 kHz) penetrate deepest, but sensitivity to smaller targets Ground Compensation is low. The Explorer II uses a sophisticated approach to the elimination of On the other hand, higher ground mineralisation. It uses advanced digital filtering to eliminate frequencies have a more the influence of ground signals.
- Page 14 THE MINELAB EXPLORER II www.minelab.com...
-
Page 15: Assembly
THE MINELAB EXPLORER II Assembly This chapter provides details and instructions on assembling and adjusting the Explorer II. -
Page 16: Unpacking Your Explorer Ii
THE MINELAB EXPLORER II www.minelab.com UNPACKING YOUR EXPLORER II easy reference RECHARGEABLE BATTERY PACK DOCUMENTATION ACCESSORY BOX CONTAINING CAR CHARGER & MAINS CHARGER UPPER SHAFT ASSEMBLY LOWER SHAFT ASSEMBLY SEARCH COIL HANDLE ASSEMBLY P0592-A MAIN CARTON ACCESSORY BOX DOCUMENTATION PACK •... - Page 17 UNPACKING YOUR EXPLORER II List of Parts The box in which the Explorer II is shipped should contain the items illustrated on the facing page. Please check that all of these items are in the box. If any of these components are missing, contact your Minelab dealer immediately.
-
Page 18: Assembling The Detector
Handle assembly Shaft assembly Search coil P0591-A Please follow these instructions to assemble the Explorer II. Refer to the drawings to identify parts and how they are positioned. The detector’s components are organized into three categories: • the search coil;... -
Page 19: Connecting The Search Coil
THE MINELAB EXPLORER II CONNECTING THE SEARCH COIL The search coil transmits electromagnetic signals into the ground and receives the response. Rubber Washer Coil Cable Coil Yoke Yoke Nut Yoke Bracket Yoke Bolt Search Coil P0608-A Figure 2.1 Connecting the search coil... - Page 20 THE MINELAB EXPLORER II www.minelab.com Check the orientation of the search coil and shaft ensuring STEP 3 that the open side of the yoke faces the ground. (Figure 2.2) To join the shaft to the search coil, slide the STEP 4 yoke into the yoke bracket on top of the coil.
-
Page 21: The Shaft Assembly
THE MINELAB EXPLORER II THE SHAFT ASSEMBLY The shaft assembly is made up of the upper and lower shafts connected by the shaft camlock. The assembly houses the coil cable and connects the search coil to the handle assembly. These instructions assume that the search coil is connected to the lower shaft. -
Page 22: Connecting The Shaft Assembly
THE MINELAB EXPLORER II www.minelab.com CONNECTING THE SHAFT ASSEMBLY Connecting the shaft assembly to the handle assembly Figure 2.6–2.9 NOTE Shaft orientation: camlock is on lower side of upper shaft. To connect the shaft assembly to the handle assembly: (Figure 2.6) Release the control box camlock lever to the... - Page 23 THE MINELAB EXPLORER II Secure upper shaft in position by locking the control box STEP 5 camlock. (Figure 2.9) Adjust shaft to the desired length and then lock STEP 6 with shaft camlock lever. (Figure 2.9) Tilt the search coil to the most comfortable...
-
Page 24: The Handle Assembly
THE MINELAB EXPLORER II www.minelab.com THE HANDLE ASSEMBLY The handle assembly is made up of the armrest, straps and the control box. It is connected to the shaft assembly by the control box camlock. Adjusting the armrest assembly Figure 2.10... - Page 25 THE MINELAB EXPLORER II Fitting the armrest strap Figure 2.11–2.13 To fit and adjust the armrest strap: (Figure 2.11) Thread the strap through the buckle openings STEP 1 as illustrated. (Figure 2.12) Clip both buckles into the openings at each STEP 2 outer side of the armrest.
-
Page 26: Headphones
THE MINELAB EXPLORER II www.minelab.com HEADPHONES Attaching headphones Figure 2.14 The use of headphones when treasure hunting with the Explorer II will avoid disturbing others in the area. The reduced power Headphone demands of the headphones will also extend the battery life. Socket The socket for the headphone plug is located in the top right of the rubber seal at the top of the handle assembly. -
Page 27: Replacing And Fitting The Search Coil
THE MINELAB EXPLORER II REPLACING AND FITTING THE SEARCH COIL Rubber Washer Coil Cable Coil Yoke Yoke Nut Yoke Bolt Yoke Bracket Search Coil P0608-A Figure 2.14 Replacing the search coil Replacing the search coil Figure 2.14–2.16 CAUTION DO NOT attempt to remove the coil cable from the search coil. - Page 28 THE MINELAB EXPLORER II www.minelab.com (Figure 2.15) Gently pull the coil cable from inside the yoke/ STEP 4 lower shaft. (Figure 2.16). Carefully feed the coil cable of the new coil STEP 5 back into yoke and lower shaft. Continue to feed the cable into the shaft unitl the connector is visible at the top of the shaft.
- Page 29 THE MINELAB EXPLORER II...
- Page 30 THE MINELAB EXPLORER II www.minelab.com...
-
Page 31: Batteries
THE MINELAB EXPLORER II Batteries The Explorer II is powered by alkaline batteries or a rechargeable Nickel Metal Hydride (NiMH) battery pack. This chapter provides details on battery installation, use and performance. -
Page 32: The Battery Pack
THE BATTERY PACK The Explorer II is supplied with a sealed rechargeable Nickel Metal Hydride (NiMH) battery pack and a battery pack designed to accept alkaline AA batteries. Removal instructions apply to both types of pack. Battery installation instructions apply to alkaline battery replacement only. - Page 33 THE MINELAB EXPLORER II Recharging NiMH battery pack with the mains charger Figure 3.3 The Explorer II is provided with a sealed Nickel Metal Hydride (NiMH) battery pack and a charger which plugs into a conventional wall socket. NOTE The NiMH battery pack supplied with your detector Figure 3.3...
- Page 34 Recharging NiMH battery pack with the car charger Recharging The Explorer II is provided with a car charger that boosts the voltage of the car battery (usually about 12V) to a voltage sufficiently high to charge the NiMH battery pack.
-
Page 35: Battery Performance
Battery Performance Notes supporting performance figures ALKALINE Alkaline batteries will power the Explorer II for up to 14 hours of hours constant use. The NiMH 1600 battery pack will power the detector 12.5 hours NiMH 1600 mAh for up to 12.5 hours of constant use and the NiMH 1800 battery pack...
