Summary of Contents for Minelab E-TRAC
- Page 1 The evolution of discovery...
-
Page 2: What's In The Box

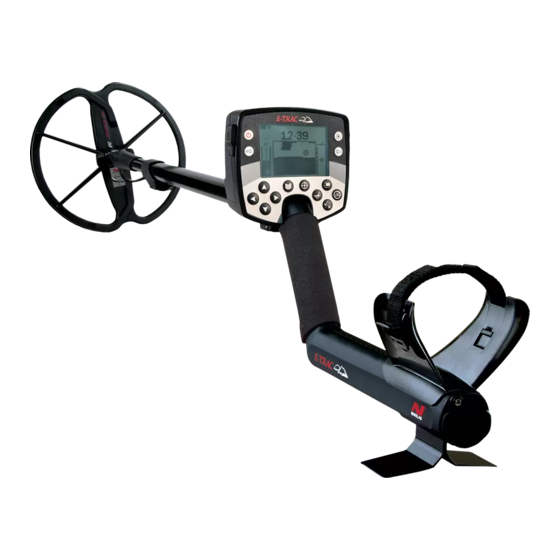

The new-from-the-ground-up E-Trac is bristling with technology and has some very smart new tricks up its sleeve! This detector is a new model, the premiere agship of the Minelab eet and does not replace anything else – instead it adds to the model line-up and creates a new benchmark in software functional- ity, performance and class-leading capability. - Page 3 The Menu button in the centre controls the access to all E-Trac’s selectable Menu choices. Pinpoint takes the E-Trac out of a discrimination motion mode and puts it into a temporary all metal, non- discrimination mode. Note: it is not advisable to search in the pin point mode.
- Page 4 Minelab engineers have really put into this wonderfully exciting new machine! One of the most exciting new functions is E-Trac Xchange: the ability to communicate with a personal computer to upload and share detecting programs, a great innovation and step forward in making the hobby of metal detecting as personable as choosing your favourite music for your iPod.
- Page 5 Quickmask™ This fantastic new feature allows you to adjust the level of Ferrous and Conductive rejection, independent of the Pattern / Digital Smart nd™ Discrimination Pattern. Quickmask™ is a great feature for very quickly checking targets for discrimination purposes because it is easy to do by adjusting either of the two slider controls (Navigation Buttons described further down) to adjust the level of Ferrous and Conductive discrimination to see where a target “drops out at”...
-
Page 6: E-Trac Modes
ON via the Preferences Menu in order to see any of the icons displayed (more on this later) Remember, a user Mode is [a start point] for a new owner of E-Trac to get going on his / her... -
Page 7: Discrimination Menu
The conductivity scale has a wider range of IDs (from 1 to 50) and the ferrous range is expanded also (1-35). So on E-Trac, the Ferrous scale is on a vertical adjustment and the Non-Ferrous or Conductivity scale is on a horizontal adjustment. - Page 8 Sensitivity individually for each set of signals, to provide the most stable Target ID. Most ground types cause some interference and E-Trac uses this to adjust the detector to the correct Auto Sensitivity.
-
Page 9: Audio Menu
In the Audio menu all the familiar choices are present with the addition of a few new settings. One very nice feature that will be sure to appeal to lots of E-Trac owners is the ability to select the number of Tones... -
Page 10: Expert Menu
The correct Ground setting will reduce false signals from the soil. So therefore, a good question would be: “How would I know which setting I should set E-Trac to”? One of the answers to that lies in the Sensitivity range of the E-Trac, particularly the Auto or A setting. If the A ranges upwards and stabilizes at a high setting then it could be determined that the ground is ‘normal’... -
Page 11: Preferences Menu
The Factory Preset is: Normal E-Trac o ers its owners two distinctly separate Pin Point settings – in one or the other setting the information coming back via your speaker or headphones can be quite telling giving lots of valuable information prior to putting a spade to the turf at all. -
Page 12: Other New Features
E-Trac. I will give ‘a small word to the wise’ here…allow some time to get used to the very di erent feel of E-Trac as you become accustomed to it and to help nd your own, personal “best balance &... - Page 13 Performance in the Great Outdoors I was lucky enough to have been given the opportunity to trial E-Trac for an extended spell and during that time there was no time wasted as I wanted to put it through its paces at some of my sites. As it was early spring and, due to crops being in, access to some of my sites was o -limits –...
- Page 14 Conclusion Well, after reading this far it is easy to see that E-Trac is a true and genuine tour-de-force… Brand new technology, lots of proven and established Minelab technology, and then some! The machine re ects energy, vision and creativity bringing such a radically advanced new metal detector to market.
-
Page 15: Technical Specifications
Automatic & Manual selection of 11 channels Pinpoint Non-motion with modulated audio and visual Crosshair on LCD, 2 Modes – Normal and Sizing User Modes 4 Minelab Modes and 4 My Modes Discrimination 2 Dimensional Smartfind™ Discrimination Target Identification 2 Dimensional Smartfind™ Size / Conductivity and Ferrous characteristics Conductivity 1-50, Ferrous 1-35 Sensitivity Adjustment Fully Automatic;...
