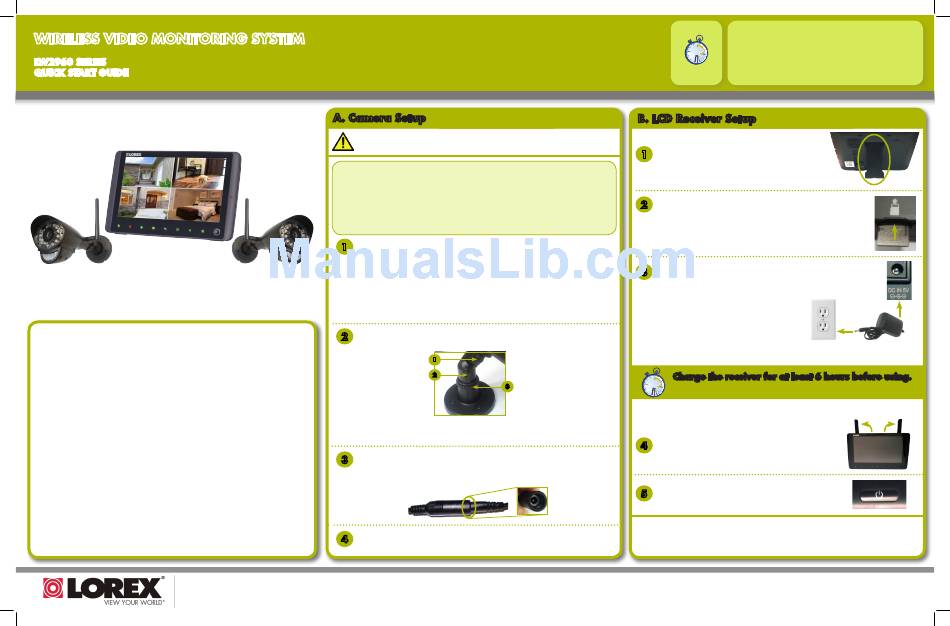

Lorex LW2960 SERIES Quick Start Manual

WIRELESS VIDEO MONITORING SYSTEM
LW2960 SERIES
QUICK START GUIDE
This system comes with the following
components:

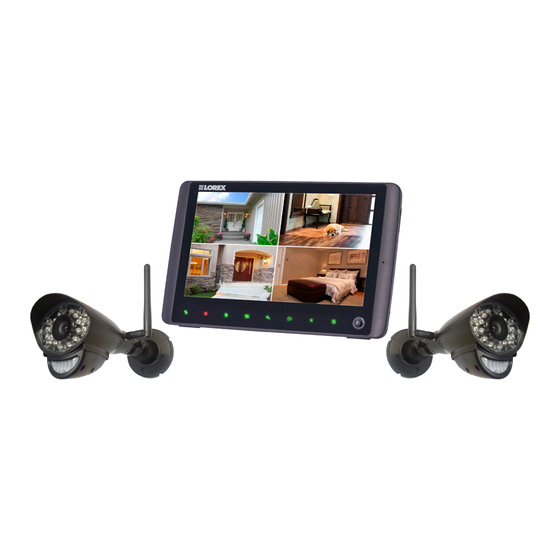

• 9" wireless LCD video monitor
• Indoor / outdoor color camera(s)*
• SD memory card*
• Mounting hardware kit(s)*
• Power adapters*
• Ethernet cable
*Number of cameras, and microSD card capacity may vary
by model. Check your package for specific content information.
www.lorextechnology.com
A. Camera Setup
Before installing camera(s), carefully plan where and how it will be positioned,
and where you will route the cable that connects the camera to the power adapter.
*

Installation Tips

• Cameras are rated for indoor/outdoor installation, but are not intended for direct
exposure to rain or snow. For outdoor applications install under shelter protected
from the elements.
• Wireless cameras require a power source to operate.
• Ensure power outlets are sheltered from the elements.
Use the included mounting screws to attach the camera(s) to the
1
mounting surface:
a. Mark the positions of the screw holes on the mounting surface.
b. Drill holes and insert the drywall anchors (included) as needed.
c. Firmly attach camera(s) to the surface using the included screws.
NOTE: If you run the power cable through the mounting surface,
connect power before attaching the camera to the wall.
Loosen the thumbscrews (1, 2) and the adjustment ring (3) by turning
2
them counter clockwise.
Adjust the angle of the camera(s) as needed, then tighten the
thumbscrews and the adjustment ring.
Connect one end of the camera's power adapter to the camera and the
3
other end to an electrical outlet. Make sure the power connector is fully
inserted to avoid water getting in the plug.
Remove the protective film from the front of the camera(s). If the film is
4
not removed, it will block the microphone and will affect picture quality.
1
2
3
Time
NOTE: AVOID INSTALLING IN A LOCATION
THAT REQUIRES THE WIRELESS SIGNAL TO
PASS THROUGH CEMENT, CONCRETE, OR
METAL STRUCTURES. THIS WILL REDUCE THE
Under 20 TRANSMISSION RANGE.
minutes*
B. LCD Receiver Setup
Pull out the receiver stand for convenient
1
placement on a flat surface.
Insert the included microSD card into the microSD card slot on
2
the LCD receiver until you hear a "click."
NOTE: The receiver is compatible with most major brands of
microSD card up to 64 GB.
Connect one end of the receiver's power adapter to the back
3
of the receiver. Connect the other end to an electrical outlet.
NOTE: Make sure to first connect the
camera(s) to an electrical outlet before
powering on the receiver. This will
ensure a proper connection.
Charge the receiver for at least 6 hours before using.
The receiver has a rechargeable battery for up to 3.5 hours of portable use.
4
Pull up the antennas on the back of the LCD receiver.
5
Push the power button on top of the LCD receiver.
NOTE: If one or more cameras do not appear when selected (i.e., Camera 2 is
plugged in but does not appear on channel 2), follow the pairing process
described in the user's guide.
LW2960_SERIES_QSG_EN_R1 Page 1
