Lorex LW2700 SERIES Quick Start Manual

WIRELESS DIGITAL SECURITY SYSTEM
LW2700 / LW2900 SERIES
QUICK START GUIDE

Getting Started

*
This Wireless Digital Security
System comes with the following
components:
†
• Color Two-way Audio Outdoor
Cameras*
• Camera Stand(s)*
• LCD Monitor/Wireless Receiver
• SD Memory Card
• Audio/Video Cable
• Remote Control
• Tabletop Stand
• Mounting Hardware Kit(s)*
• Wireless Antennas (for camera [s])*
• Power Adapters (for receiver &
camera[s])*
• Instruction Manual
*
Number of cameras may vary by
model. Check your package for specific
content information.
† Not intended for direct exposure to rain or
snow.
www.lorextechnology.com
NOTE: AVOID INSTALLING IN A LOCATION
WHICH REQUIRES THE WIRELESS SIGNAL
TO PASS THROUGH CEMENT, CONCRETE
AND METAL STRUCTURES. THIS WILL
REDUCE THE TRANSMISSION RANGE.

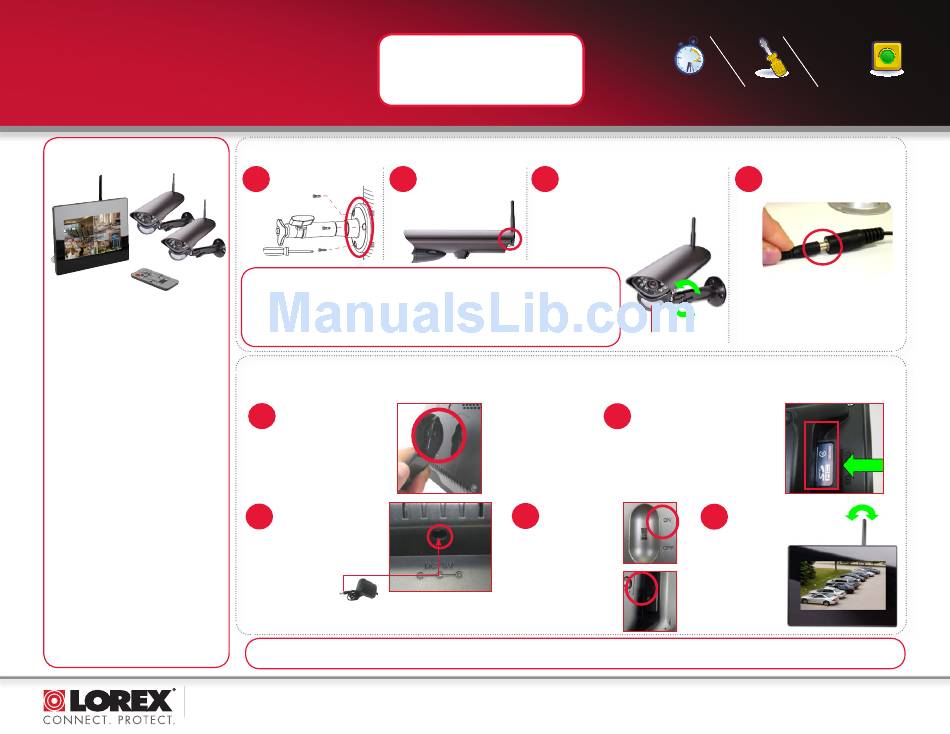

A. Camera Setup
1 2
Mount camera stand to Attach the included
the wall. Antenna to the camera
by screwing it on to the
back as shown
below.
NOTE: Before you install a camera, carefully plan where
and how it will be positioned, and where you will route the
cable that connects the camera to the power adaptor.
Before starting permanent installation, verify its
performance by observing the image on a monitor when
the camera is positioned where it will be permanently
installed.
B. LCD Receiver Setup
The LCD Receiver can be setup for use on a tabletop, or mounted to a wall or underneath a counter or cupboard. See Receiver Mounting Options section below for more details.
Plug the included stand
1
into the slot as shown
below. Turn the stand
counter-clockwise until
it clicks into place. For
different viewing angles,
rotate the stand further.
Connect one end of the
3
Receiver Power Adaptor
to the receiver and the
other end to an electrical
outlet.
ATTENTION: Make sure to first connect and power on the
camera(s) before powering on the receiver; this will ensure
a proper connection.
NOTE: If one or more of the cameras do not appear when selected (i.e. Camera 2 is turned on but does not appear on channel 2),
follow the Pairing process as described on Page 44 and 45 of the instruction manual.
3 Secure Camera to the mounting
stand. Adjust the angle of the camera
until the desired view is set. Tighten
the thumbscrews to secure the
desired camera position.
NOTE: Wireless cameras require a power
source to operate.
NOTE: When adding cameras that were not
included in the original box, you will need
to pair up the camera with the receiver.
Please refer to the Camera Pairing
Section of the User Manual. PIR motion sensor
NOTE: Insert the included SD card into
The LCD receiver 2
can also be wall, ceiling the SD Card slot on the LCD
or under-counter
receiver until you hear a "click."
mounted. See page 16 of
The card will not be flush when
the Instruction Manual
completely inserted.
for details.
NOTE: The receiver is compatible
with most major brands of SD
card up to 16 GB.
LW2700 Series:
4
Slide the power
switch on the
rear panel to the
"ON" position.
LW2900 Series:
Slide the power
switch on the
side panel to the
"ON" position.
LW2700/LW2900 Series Quick Start Guide_R1
under 15 minutes under 30 minutes
Hand Tools
Time Tools Skills - Easy
Under 20 Minutes*
* Installation time may vary Hand Tools
based on application and
camera location
Skill Level
4 easy Connect one end of the camera Intermediate
Power Adapter to the camera and
the other end to an electrical outlet.
Connect power adaptor to local
120V AC power outlet.
IMPORTANT: The motion detection
range is up to 24ft (7m) to minimize
false alarms. Keep this in mind when
selecting suitable installation location.
Adjust the antenna on the
5
receiver as necessary to
provide the clearest
reception.
under 60 minutes over 60 minutes
Skill Level
Hardware
Hi Speed
Router
easy Intermed
Plug & Play connections,
On screen set up
advanced
