and Basic GPS Mapping Techniques
1
Introduction

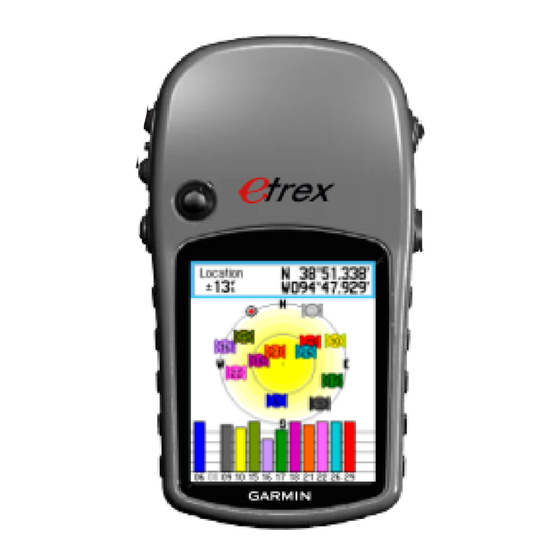

This manual is intended to provide users with a basic understanding of a Garmin eTrex GPS receiver
and how it can help to support day to day operations. For detailed information about this receiver, refer
to the owner's manual that is included with the receiver.
1.1
What is a Global Positioning System?
The Global Positioning System is a space-based global navigation satellite system. It provides reliable
location and time information anywhere on Earth and at all times when there is an unobstructed line of
site to at least four GPS satellites. It was created by the U.S. Department of Defense in 1973.
1.2

How it works?

The Global Positioning System consists of three segments:
1. Space Segment
The space segment is composed of orbiting satellites positioned in medium Earth orbit at an altitude of
approximately 20 200 kilometers (12 550 miles). The satellites orbit around the Earth in six circular
planes broadcasting the signal from space. Each satellite makes two complete orbits each day. About
eight satellites are visible at any particular time from any point on the ground.
2. Control Segment
The Control Segment is composed of:
Control Stations
•
Dedicated Antennas
•
Dedicated Monitor Stations
•
The control segment tracks the flight paths of the satellites and regularly contacts each satellite with a
navigational updates.
3. User Segment
The user segment is composed of tens of millions of users on-the-ground, in-the-air, water etc.
Setting up a GPS Unit
Manual

Advertisement

Table of Contents
loading

Related Manuals for Garmin eTrex

Summary of Contents for Garmin eTrex

  • Page 1: How It Works

    Manual Introduction This manual is intended to provide users with a basic understanding of a Garmin eTrex GPS receiver and how it can help to support day to day operations. For detailed information about this receiver, refer to the owner's manual that is included with the receiver.

  • Page 2: Getting Started

    ➢ Remove the battery compartment cover from the back of the unit ➢ Insert the batteries, observing the proper polarity The SD card should be included in the Garmin eTrex folder bundle. It should be installed in the slot on the left side of the batteries.
  • Page 3 ➢ Lift the weather cover from the USB unit on the back of the unit ➢ Connect the USB cable to the USB port on your computer and the USB port on the back of the unit ➢ Transfer the data Installing the batteries and a microSD card 2.1.3 Key Functions...

  • Page 4: Loading A Map

    ➢ Once the area of interest is found, download the appropriate file to the computer. ➢ Unzip the file, this will extract the file called gmapsupp.img Load the map onto the Garmin device by putting the device into USB Mass Storage mode, and copying over the file:...

  • Page 5: Map Setup

    Map Setup Map Setup Set up a map on the Map Page: ➢ Press Quit/Page key until arriving at the Map Page ➢ Press Menu/Find key, select Setup Map and press Enter/Rocker key Use the Rocker key and move it left and right between different Map setups. Setup: General Setup Rocker ➢...

  • Page 6: Track Log Setup

    Track Log Setup These steps make sure that the Garmin eTrex is recording track logs with a sample rate once per second and recording the track logs to the data card. Setting the frequency of the track log recording to the highest possible (one second) will ensure the most complete track recording.
  • Page 7 System setup System Setup Menu Page Main Menu ➢ Press twice or key until you arrive to the Setup Enter System Enter ➢ Select the icon, and press , then select the icon, and press Enter Normal Enter ➢ Highlight , press , select , and press...

  • Page 8: Time Setup

    Time Setup Time Setup Menu Page Main Menu ➢ Press twice or key until you arrive to the Setup Enter Time Enter ➢ Select icon, press , then select the icon, and press Time Format Enter 24 Hour ➢ Highlight , press , and select Time Zone...
  • Page 9 Basic GPS mapping techniques The basic mapping techniques described are specifically addressed for achieving the best results when collecting points of interest, ways and areas, using a hand-held GPS units, such as the Garmin eTrex device. Collect satellite data and establish location The steps to initialize the GPS receiver are already described above (Initializing the GSP receiver).
  • Page 10 There are many different ways to collect Points of Interest. This step explains how to collect these points , also known as waypoints, using a hand-held GPS unit. To collect a point: ➢ Stand in front of an object you wish to collect Enter Mark Waypoint ➢...
  • Page 11 Collecting Ways Ways are lines connecting different locations. Ways can be highways, roads, paths, railway lines, bus lines, ship lines, bicycle routs, hiking trails etc. Before you start collecting ways, you need to set the Track Log as described above in the Track Log Setup.
  • Page 12 Collecting a point in the middle of an area and sketching out an area: Collecting a point in the middle and sketching out an area Collecting points on the perimeter of the area: Walking the perimeter of an area and collecting points at the edges...
