Satellite Terminal System
Equipment Mounting
6.1
Tools Required
Qty.
1
3/8" drive ratchet.
1
Adjustable wrench.
1
7/16" x 3/8" drive socket, or 7/16" drive wrench.
(Metric equivalent: 12mm, 6 pt.)
1
1/2" x 3/8" drive socket, or 1/2" box wrench.
(Metric equivalent: 13mm, 6 pt.)
1
5/16" box wrench, or nut driver
1
7/64" Allen wrench

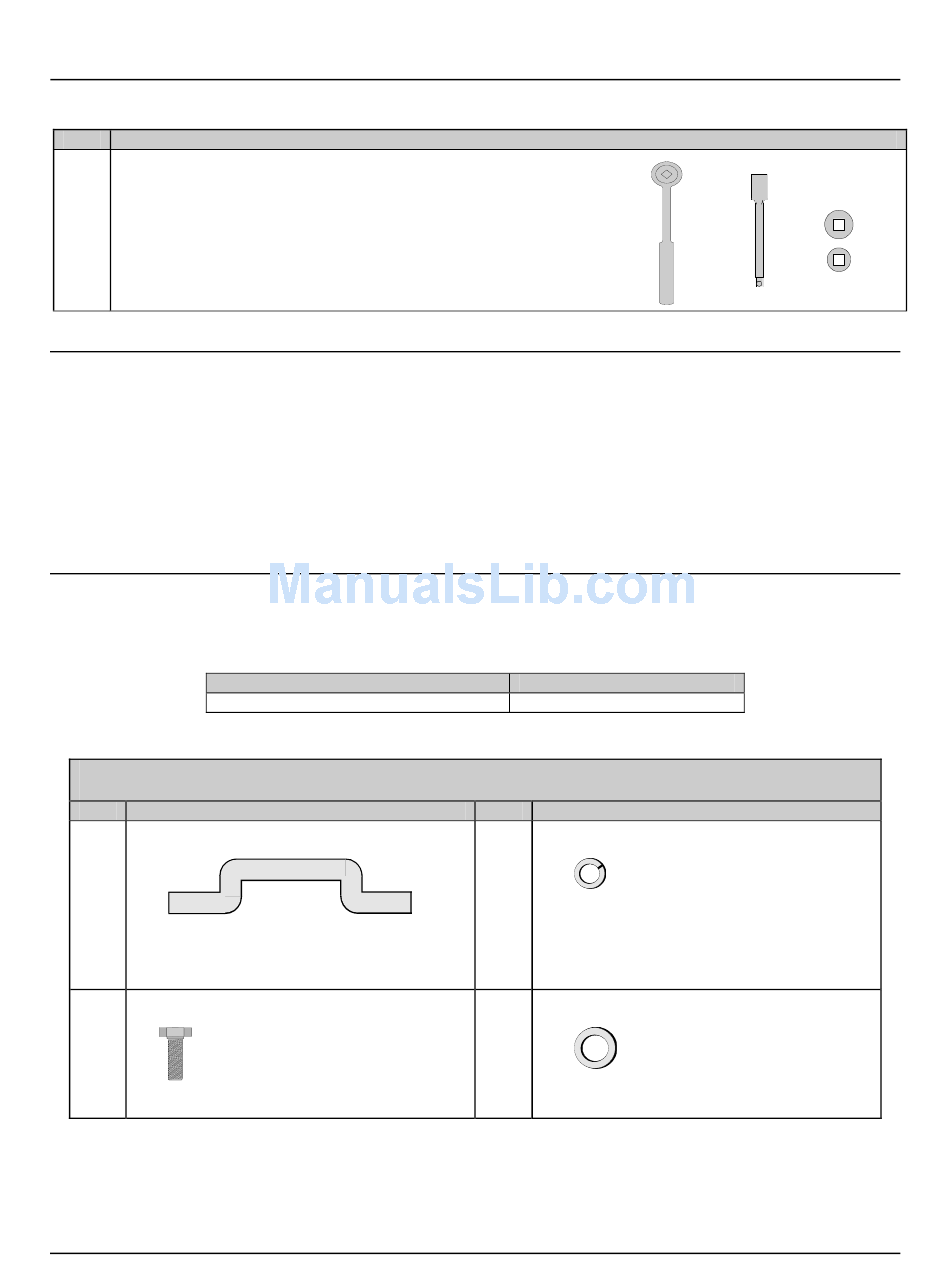

6.2
Converter Unit Installation
The following information describes the steps performed and optional hardware required
for installing the converter unit on an antenna spar arm or a pole.
6.2.1
Spar Arm Mount
6.2.1.1
Optional Spar Arm Installation Kits for Converter, SSPA, and
LNB
Antenna Type Mounting Kit
KST-2000A/B Converter Only
Qty.
2
Spar support bracket. (Spar Mount Only)
Comtech EF Data Part #s:FP/3175
4
1/4-20 x 1" bolt.
Comtech EF Data Part #:HW/ 1/4-20x1-BLT
Kit KT/8324-1 include:
Description
Description
Kit Part Number
KT/8324-1
Qty.
4
1/4" split washer.
Comtech EF Data Part #:HW/1/4-SPLIT.
4
1/4" flat washer.
Comtech EF Data Part #:HW/1/4-FLT.
6–2
Revision 2
MN/KST2000L.IOM
