Pole Mount - Comtech EF Data KST-2000L Installation And Operation Manual

Satellite Terminal System
Equipment Mounting
6.2.2

Pole Mount

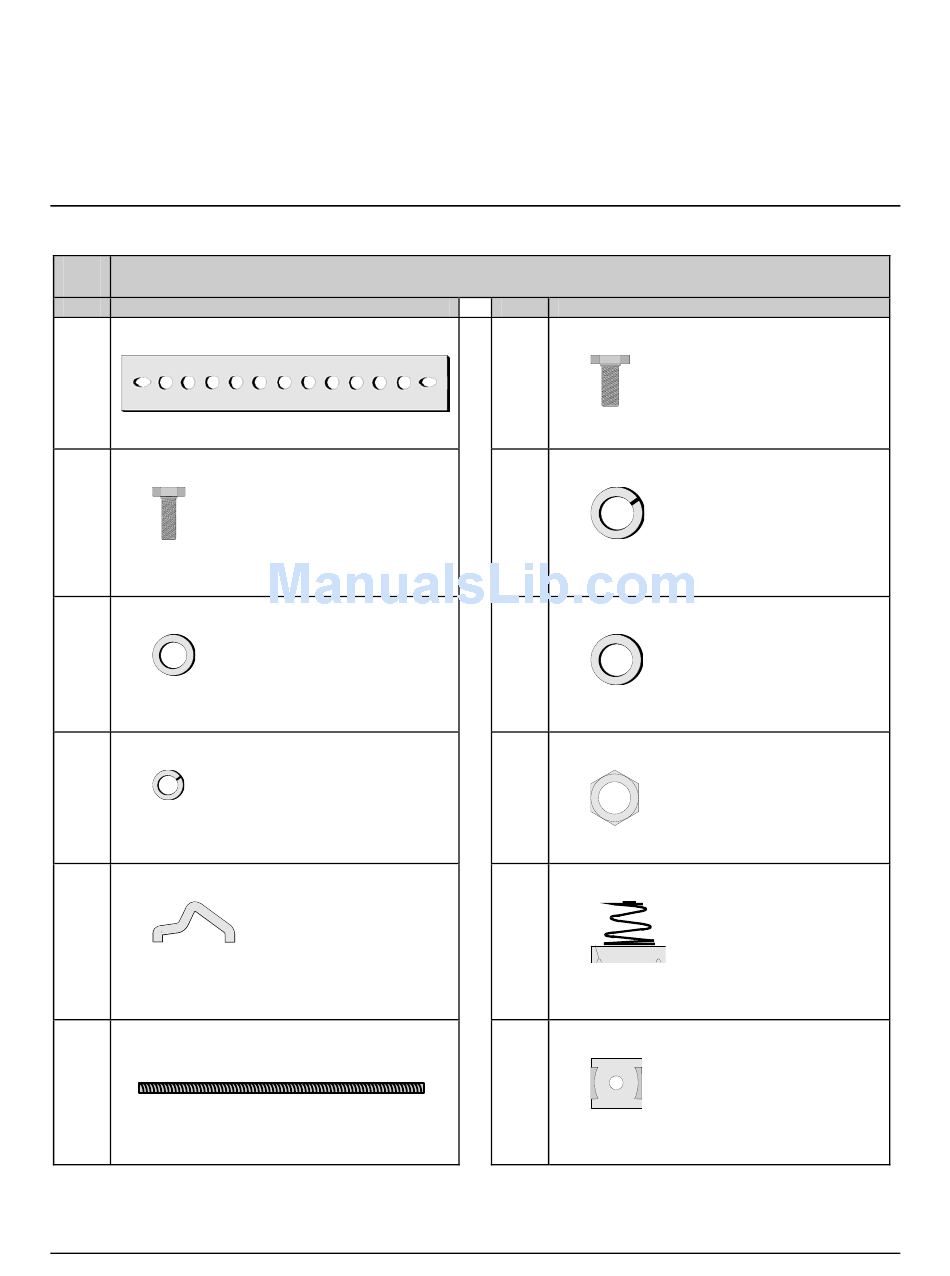

6.2.2.1 Optional Pole Mount Installation Kit for Converter
Qty.
4 Unistrut — 14" long.
Comtech EF Data Part # FP/3595.
6 1/4-20 x 5/8" bolt.
Comtech EF Data Part # 03P1131.
Used to attach Unistruts to RFT.
6 1/4" flat washer.
Comtech EF Data Part # HW/1/4-FLT.
Used to attach Unistruts to RFT.
6 1/4" split washer.
Comtech EF Data Part # HW/1/4-SPLIT.
Used to attach Unistruts to RFT.
8 Pipe block.
Comtech EF Data
Part # HW/BLK-PIPE2-8.
Used for round pole mount only.
4 Threaded rod, 5/16-18 x 14".
Comtech EF Data
Part # HW/RD5/16-18X14.
Kit KT/8094 includes:
Description Qty.
8 5/16-18 x 1" bolt.
Comtech EF Data Part # HW/5/16-18X1BLT.
20 5/16" split washer.
Comtech EF Data Part # HW/5/16-SPLIT.
20 5/16" flat washer.
Comtech EF Data Part # HW/5/16-FLT.
12 5/16-18 hex nut.
Comtech EF Data
Part # HW/5/16-18HEXNT.
12 5/16-18 spring nut.
Comtech EF Data
Part # HW/5/16-18SPNUT.
8 Flat fitting plate, 5/16".
Comtech EF Data
Part # HW/FIT-PLT-5/16.
6–4
Revision 2
MN/KST2000L.IOM
