Omron NE-C29-E Instruction Manual

Compressor nebuliser
Hide thumbs
Table of Contents

Advertisement

Quick Links

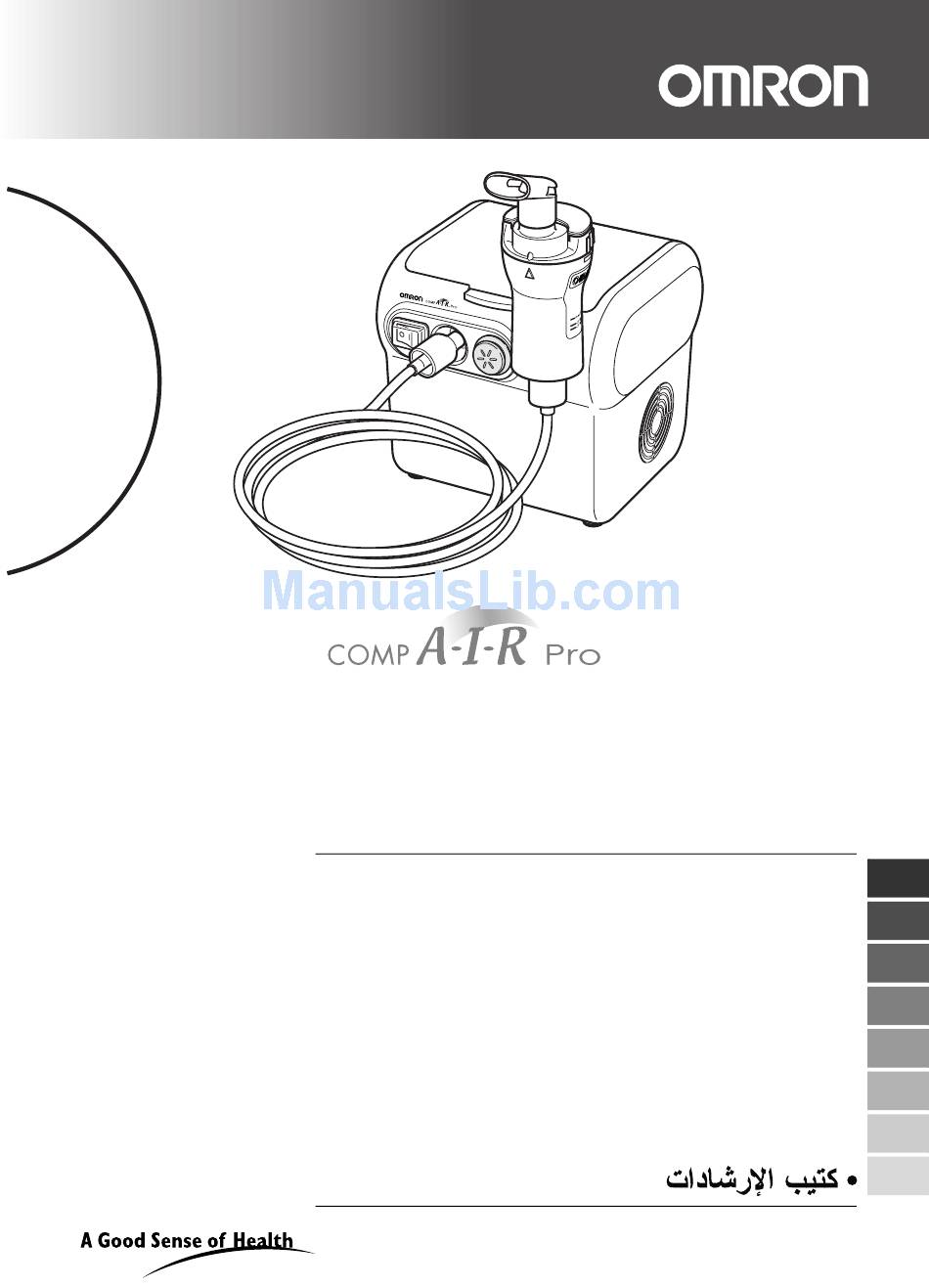

Compressor Nebuliser
NE-C29-E
Model
• Instruction Manual
• Mode d'emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
TM
IM-NE-C29-E-02-11/06
EN
FR
DE
IT
ES
NL
RU
AR

Advertisement

Table of Contents
loading

Related Manuals for Omron NE-C29-E

Summary of Contents for Omron NE-C29-E

  • Page 1 Compressor Nebuliser NE-C29-E Model • Instruction Manual • Mode d’emploi • Gebrauchsanweisung • Manuale di istruzioni • Manual de instrucciones • Gebruiksaanwijzing • РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ IM-NE-C29-E-02-11/06...

  • Page 2: Table Of Contents

    Before using the unit Contents Before using the unit Introduction ....................3 Important safety instructions ..............4 1. Know your unit ..................7 2. Guide to using the Comp Air Pro ............9 Operating instructions 3. Preparing the nebuliser for use ............10 4.

  • Page 3: Introduction

    Introduction Thank you for purchasing the OMRON Comp Air Pro. This product was developed in conjunction with respiratory therapists for the successful treatment of asthma, chronic bronchitis, allergies and other respiratory disorders. The compressor forces air to the nebuliser. When the air enters the nebuliser, it converts the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled.

  • Page 4: Important Safety Instructions

    Important safety instructions Read all the information in the instruction manual and any other literature included in the box before using the device. When using an electrical product, especially when children are present, basic safety precautions should always be followed including the following: Warning: Indicates a potentially hazardous situation which, if not avoided, could result in serious injury.
  • Page 5 Important safety instructions • Do not immerse the main unit in water or other liquid. • Do not use or store the device in humid locations, such as a bathroom. • Do not operate the unit with a damaged cord or plug. •...
  • Page 6 • Plug the device into the appropriate voltage outlet. Do not overload power outlets or use extension cords. • Do not wind the power cord around the main unit. • Changes or modifications not approved by OMRON Healthcare will void the user warranty. General Safety Precautions: •...

  • Page 7: Know Your Unit

    1. Know your unit Rear View A. Compressor (Main Unit) D. Inhalation Attachments A1.Power Switch D1.Mouthpiece A2.Air Connector D2.Adult Mask (PVC) A3.Filter Cover D3.Child Mask (PVC) (* Air filter inside.) A4.Nebuliser Kit Holder D4.Nosepiece A5.Ventilation Slots E. Nebuliser Kit A6.Storage Compartment Cover E1.Cap A7.Power Cord E2.Inhalation Air Inlet...
  • Page 8 1. Know your unit Accessories F. Spare Air Filters x 5 H. Warranty Card G. Instruction Manual Material of attachment Nebuliser Kit, Mouthpiece, Nosepiece, Adapter for Polypropylene Child Mask (SEBS): Adult Mask (PVC), Child Mask (PVC): Adult Mask (SEBS), Child Mask (SEBS): SEBS Air Tube: PVC and Polypropylene...

  • Page 9: Guide To Using The Comp Air Pro

    2. Guide to using the Comp Air Pro Preparing the Nebuliser for Use (Section 3) Note: Clean and disinfect the nebuliser kit and applicable inhalation attachments before using the device for the first time, or if it has not been used for more than one week. Taking Medication (Section 4) Notes: •...

  • Page 10: Operating Instructions

    Operating instructions 3. Preparing the nebuliser for use Warning: Clean and disinfect the nebuliser kit, mouthpiece and optional nosepiece or masks before using them for the first time after purchase, if the device has not been used for a long period of time, or if more than one person uses the same device.
  • Page 11 3. Preparing the nebuliser for use Remove the vaporiser head from the medication tank. Add the correct amount of prescribed medication to the medication tank. Caution: The capacity of the medication tank is 2 to 7 ml. Note: Scales on the nebuliser kit are for reference only.
  • Page 12 3. Preparing the nebuliser for use Attach the desired inhalation attachment, as described below. Attaching the mouthpiece Make sure you also attach the cap, when using the mouthpiece. Attach the cap to the inhalation air inlet. Attach the mouthpiece to the inhalation top. Attaching the adult mask (PVC) Attach the mask to the inhalation top.
  • Page 13 3. Preparing the nebuliser for use Attach the air tube. Attach the air tube to the air connector on the compressor. Attach the other end of the air tube to the air tube connector on the medication tank. Notes: • Make sure that the air tube is securely connected. Otherwise, air may leak from the air tube during use.

  • Page 14: Taking Medication

    4. Taking medication Hold the nebuliser kit as indicated on the right. Caution: Do not tilt the nebuliser kit so that it is at an angle of greater than 45°. Medication may flow into the mouth. ° Press the power switch to the on ) position.
  • Page 15 4. Taking medication Inhale medication according to your doctor’s and/or health care adviser’s instructions. Using the mouthpiece Prepare your mouthpiece according to Section 3.9. Insert the mouthpiece into your mouth and inhale the medication breathing normally. Exhale as normal through the mouthpiece. Using the nosepiece Prepare your nosepiece according to Section 3.9.
  • Page 16 4. Taking medication When treatment is complete, turn the power off. Check that there is no condensation or moisture in the air tube and unplug the device from the power outlet. Power Plug Warning: Condensation may occur in the air tube. Do not store the air tube while it contains condensation or moisture.

  • Page 17: Care And Maintenance

    Care and maintenance 5. Cleaning and daily disinfecting Cleaning Following the cleaning instructions after each use will prevent any remaining medication in the tank from drying, resulting in the device not nebulising effectively and also for preventing infections. Warning: Thoroughly rinse the nebuliser and the mask, nosepiece or mouthpiece with clean hot tap water after each use, and disinfect the parts of the nebuliser kit and applicable inhalation attachments after the last treatment of the day.

  • Page 18: Disinfecting The Nebulising Parts

    5. Cleaning and daily disinfecting If the compressor is dirty, wipe it clean with a soft cloth moistened with water or mild detergent. Caution: The compressor is not waterproof. If the outside of the air tube is dirty, wipe it clean with a soft cloth moistened with water or mild detergent.

  • Page 19: Maintenance And Storage

    6. Maintenance and storage To keep your device in the best condition and protect the device from damage follow these directions: Caution: • Do not leave the unit unattended with infants or persons who cannot express their consent. • Do not subject the device or the parts to any strong shocks such as dropping the device on the floor.

  • Page 20: Changing The Air Filter

    Do not boil the air filter cover. Remove the air filter cover, wash it, and make sure it is dry and reattached correctly. • Please contact your OMRON dealer for additional air filters, or if the parts supplied with the device are damaged or missing.

  • Page 21: Troubleshooting

    • If the suggested remedy does not solve the problem, do not try to repair the device - no parts of the unit are user serviceable. Return the unit to an authorized OMRON retail outlet or distributor. • The device should be serviced once a year by an approved OMRON service centre.

  • Page 22: Technical Data

    9. Technical data Name: Comp Air Pro Model: OMRON NE-C29-E Type: Non-heating compressor nebuliser Electrical: 220 - 240V, 50/60 Hz Power Consumption: 138VA ° ° Operating Temperature/ C to +40 C 30% to 85% RH Humidity: ° ° Storage Temperature/...
  • Page 23 9. Technical data Technical data for the OMRON Comp Air Pro compressor with the OMRON V.V.T. (Virtual Valve Technology) Nebuliser kit: Particle Size: *MMAD **approximately 3µm Medication Tank 7 ml maximum Capacity: Appropriate Medication 2 ml minimum - 7 ml maximum...
  • Page 24 This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. This medical device manufactured by OMRON Healthcare conforms to this IEC60601-1-2:2001 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: •...
  • Page 25 This product should not be mixed with other commercial wastes for disposal. This product does not contain any hazardous substances. Subsidiary OMRON HEALTHCARE UK LTD. Opal Drive Fox Milne, Milton Keynes MK15 0DG, United Kingdom Niederlassung OMRON Medizintechnik Handelsgesellschaft m.b.H.

  • Page 26: Optional Parts And Accessories

    10.Optional parts and accessories Omron V.V.T. Nebuliser Kit Air Tube (PVC, 207cm) Mouthpiece Order No. 9956270-0 Order No. 9956273-5 Order No. 9956268-9 Nebuliser Kit Air Tube (Silicon, 100cm) Nosepiece Order No. 9956269-7 Order No. 9956274-3 Mouthpiece Adult Mask (PVC) Child Mask (PVC) Adult Mask (SEBS) Order No.
