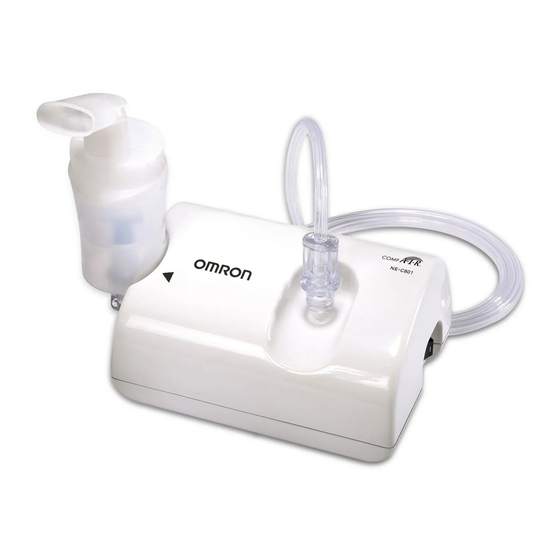

Compressor Nebuliser
NE-C801
Model
Instruction Manual
NE-C801S-AU_07/2013
5341252-6A

Advertisement

Table of Contents
loading

Related Manuals for Omron NE-C801

Summary of Contents for Omron NE-C801

  • Page 1 Compressor Nebuliser NE-C801 Model Instruction Manual NE-C801S-AU_07/2013 5341252-6A...

  • Page 2: Table Of Contents

    Before using the device Contents Before using the device Introduction ....................3 Intended use ....................3 Important safety instructions............... 4 1. Know your unit ..................8 2. Guide to using the device ..............10 Operating instructions 3. Preparing the nebuliser for use ............11 3.1 Connecting AC adapter..............

  • Page 3: Introduction

    Introduction Thank you for purchasing the OMRON COMP AIR. This product was developed in conjunction with respiratory therapists for the efficient management of asthma, chronic bronchitis, allergies and other respiratory disorders. The compressor forces air to the nebuliser kit. When the air enters the nebuliser kit, it converts the prescribed medication into an aerosol of microscopic droplets that can easily be inhaled.

  • Page 4: Important Safety Instructions

    • Do not immerse the compressor in water or other liquid. • Do not use or store the device in humid locations, such as a bathroom. • Use only original OMRON AC adapter. Use of unsupported AC adapter may damage the device.

  • Page 5: Cleaning And Disinfecting

    Important safety instructions (Cleaning and disinfecting) Observe the rules below when cleaning or disinfecting parts. Failure to observe these rules may result in damage, inefficient nebulisation or infection. For the instructions, refer to “Cleaning and disinfecting” section. • Clean and disinfect the nebuliser kit, mask, mouthpiece or optional nosepiece before using them when as follows: - the first time after purchase.
  • Page 6 • Do not misuse the cord of the AC adapter. • Do not wind the cord of the AC adapter around the compressor or AC adapter. • Changes or modifications not approved by OMRON HEALTHCARE will void the user warranty.
  • Page 7 Important safety instructions General Safety Precautions: • Inspect the device and parts before using them each time, and check that there are no problems. In particular, be sure to check the following: - That the vaporiser head, nozzle or air tube are not damaged. - That the nozzle is not blocked.

  • Page 8: Know Your Unit

    1. Know your unit Nebuliser Kit Compressor (Main Unit) Nebuliser Kit Holder Air Tube Plug Air Tube Connector Air Tube Plug Power Switch Rear View Air Tube (PVC, 100cm) Air Filter Cover Power *Air filter inside Connector Nebuliser Kit Inhalation Attachments Mouthpiece Inhalation Air Inlet Inhalation Top...

  • Page 9: Optional Accessories

    1. Know your unit Accessories Carrying Bag Instruction Manual × Spare Air Filters Compressor Nebuliser NE-C801 Model Instruction Manual NE-C801S-AU_07/2013 5341252-6A AC adapter Optional Accessories Nosepiece...

  • Page 10: Guide To Using The Device

    Operating instructions 2. Guide to using the device Preparing the Nebuliser for Use - Section 3 (page 11-14) Warning: Clean and disinfect the nebuliser kit, mouthpiece and optional nosepiece or masks before using them for the first time after purchase, or if the device has not been used for a long period of time, or if more than one person uses the same device.

  • Page 11: Preparing The Nebuliser For Use

    3. Preparing the nebuliser for use Warning: Clean and disinfect the nebuliser kit and the mask, mouthpiece or optional nosepiece before using them for the first time after purchase, or if the device has not been used for a long period of time, or if more than one person uses the same device.

  • Page 12: Adding Medication And Assembling The Parts

    3. Preparing the nebuliser for use Adding medication and assembling the parts Remove the mouthpiece and cap from the nebuliser kit. Remove the inhalation top from the medication tank. Rotate the inhalation top anti-clockwise. Lift the inhalation top out of the medication tank.
  • Page 13 3. Preparing the nebuliser for use Attach the desired inhalation attachment, as described below. Attaching the mouthpiece Attach the cap to the inhalation air inlet. Attach the mouthpiece to the inhalation top. Attaching the nosepiece (optional) Attach the cap to the inhalation air inlet. Attach the nosepiece to the inhalation top.
  • Page 14 3. Preparing the nebuliser for use Attach the air tube. Twist the air tube plug slightly and push it firmly into the air tube connector on the compressor. Twist the air tube plug slightly and push it firmly into the air tube connector on the medication tank.

  • Page 15: Taking Medication

    4. Taking medication Hold the nebuliser kit as indicated on the right. Caution: Do not tilt the nebuliser kit at an Right angle angle of greater than 45° in all ° ° direction. Medication may flow into the mouth. Press the power switch to the on ( ) position.

  • Page 16: Care And Maintenance

    Care and maintenance 4. Taking medication Inhale medication according to your doctor’s and/or health care adviser’s instructions. Prepare the inhalation attachment according to Section 3 (page 13). Using the mouthpiece Insert the mouthpiece into your mouth and inhale the medication breathing normally. Exhale as normal through the mouthpiece.
  • Page 17 4. Taking medication When treatment is complete, turn the power off. Check that there is no condensation or moisture in the air tube and unplug the device from the power outlet. Warning: Condensation may occur in the air tube. Do not store the air tube while it contains condensation or moisture.

  • Page 18: Cleaning And Disinfecting

    5. Cleaning and disinfecting Cleaning Following the cleaning instructions after each use will prevent any remaining medication in the tank from drying, resulting in the device not nebulising effectively and also for preventing infections. Warning: Thoroughly rinse the nebuliser kit and the mask, mouthpiece or optional nosepiece with clean hot tap water after each use, and disinfect the parts of the nebuliser kit and applicable inhalation attachments after the last treatment of the day.

  • Page 19: Disinfecting The Nebulising Parts

    5. Cleaning and disinfecting If the compressor is dirty, wipe it clean with a soft cloth moistened with water or mild detergent. Caution: The compressor is not waterproof. If the outside of the air tube is dirty, wipe it clean with a soft cloth moistened with water or mild detergent (neutral detergent).
  • Page 20 5. Cleaning and disinfecting : applicable : not applicable Parts Disinfecting method Materials Alcohol Disinfecting ethanol Sodium hypochlorite Milton* (0.1%, 15min.) Quaternary ammonium Osvan* (0.1%, 10min.) Chlorhexidine Hibitane* (0.5%, 30min.) Amphoteric Surfactant Tego 51* (0.2%, 15min.) Boiling * an example of commercially available disinfectant. (The concentration and residence time specified in the table are under the conditions where the service life of the parts is tested with each disinfectant used as described in its instruction manual.

  • Page 21: Maintenance And Storage

    6. Maintenance and storage To keep your device in the best condition and protect the device from damage follow these directions: Caution: • Do not leave the device unattended with infants or persons who cannot express their consent. • Do not subject the device or the parts to any strong shocks such as dropping the device on the floor.

  • Page 22: Changing The Air Filter

    • Do not wash or clean the filter. If the air filter becomes wet, replace it. Damp air filters can cause blockages. • Please contact an authorized OMRON distributor for additional air filters, or if the parts supplied with the device are damaged or missing.

  • Page 23: Troubleshooting

    20 interval before using the minutes? device again. Note: If the suggested remedy does not solve the problem, do not try to repair the device - no parts of the unit are user serviceable. Please contact an authorized OMRON distributor.

  • Page 24: Technical Data

    Notes: • Subject to technical modification without prior notice. • This OMRON product is produced under the strict quality system of OMRON HEALTHCARE Co., Ltd., Japan. • The device may not work if the temperature and voltage conditions are different to those defined in the specifications.
  • Page 25 9. Technical data Technical data for the OMRON NE-C801 Compressor with the OMRON V.V.T. (Virtual Valve Technology) Nebuliser kit: Particle Size: **MMAD Approx. 3µm MMAD = Mass Median Aerodynamic Diameter Medication Tank 7ml maximum Capacity: Appropriate Medication 2ml minimum - 7ml maximum...
  • Page 26 This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. This medical device manufactured by OMRON HEALTHCARE conforms to this EN60601-1-2:2007 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: •...

  • Page 27: Optional Parts And Accessories

    10. Optional parts and accessories Omron V.V.T. Nebuliser Kit Air Tube (PVC, 100cm) Mouthpiece N-01 Set Model: NEB-TP-L10E Model: NEB-MP-E Model: NEB-NSET3-81E Mouthpiece Vaporiser Head Nosepiece Model: NEB-BF-81E Model: NEB-NP-E Nebuliser Kit No. : N-01 Adult Mask (PVC) Child Mask (PVC)
  • Page 28 OMRON HEALTHCARE EUROPE B.V. Scorpius 33, 2132 LR Hoofddorp THE NETHERLANDS OMRON HEALTHCARE SINGAPORE PTE LTD. 438A Alexandra Road, #05-05/08 Asia Pacific HQ Alexandra Technopark, Singapore 119967 www.omronhealthcare-ap.com OMRON HEALTHCARE MANUFACTURING VIETNAM CO., LTD. Production facility Binh Duong Province, VIETNAM...
