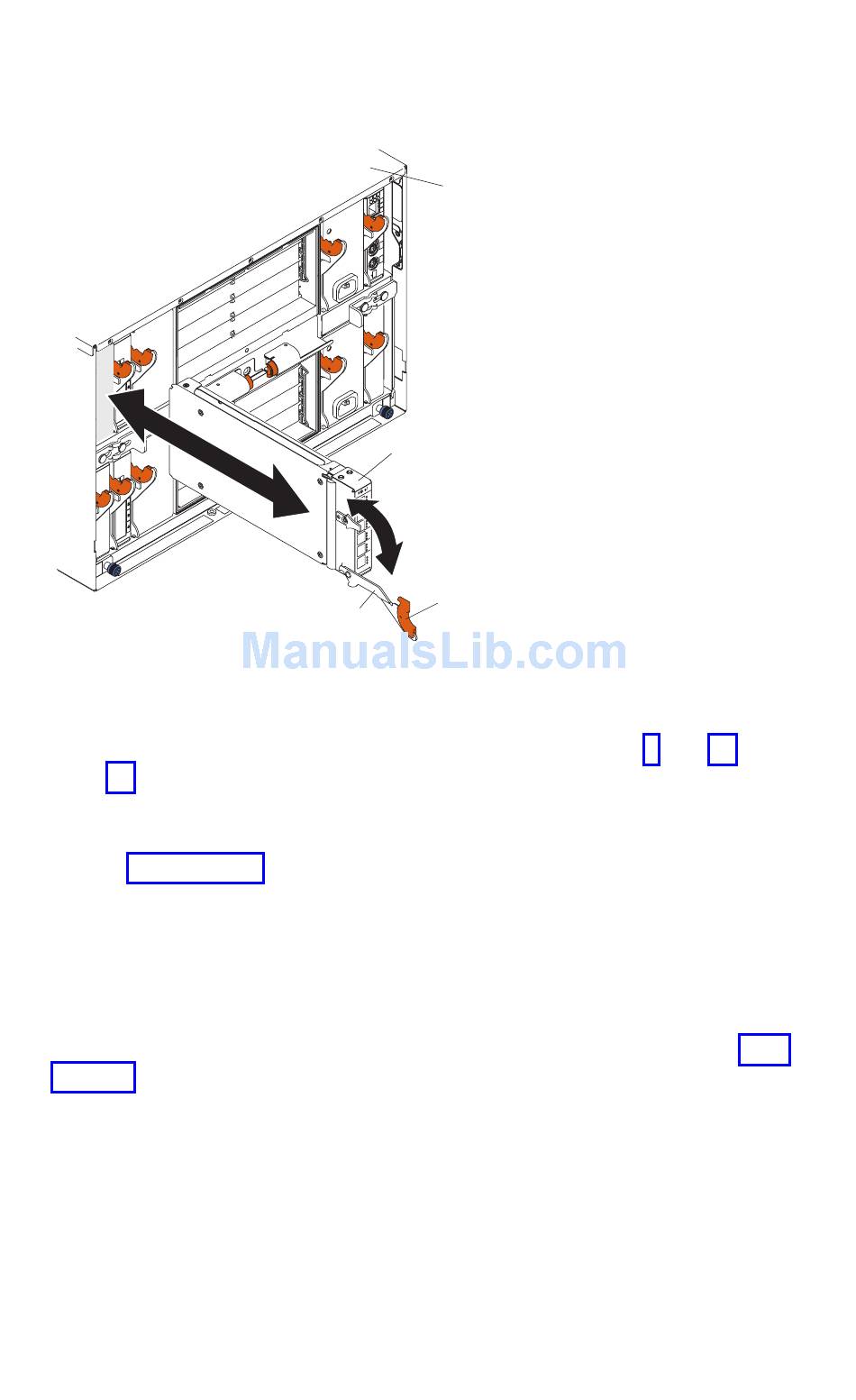

5. Pull the release latch toward the bottom of the switch module as shown in
the following illustration. The module moves out of the bay
approximately 0.6 cm (0.25 inch).
6. Slide the switch module out of the bay and set it aside.
7. Place either another switch module or a filler module in the bay.
Important: Complete this step within 1 minute (see steps 9 and 10 on
page 16 for more information).
8. If you placed another switch module into the bay and if you are using the
external switch-module ports, insert any SFP modules that you removed
in step 4 on page 17 into external Fibre Channel port 0 and Fibre Channel
ports 15 through 19. For SFP-module installation instructions, see the
documentation that comes with the SFP module.
9. Use LC-LC or LC-SC fiber-optic cables to connect the switch-module
external ports to external Fibre Channel devices. For more information, see
the documentation that comes with the cable options.
10. Replace the acoustic attenuation module, if you removed it in step 2 on
page 17.
18
Brocade 4 Gb SAN Switch Module: Installation Guide
Fibre Channel
switch module
Latch
Release
lever
BladeCenter
unit
