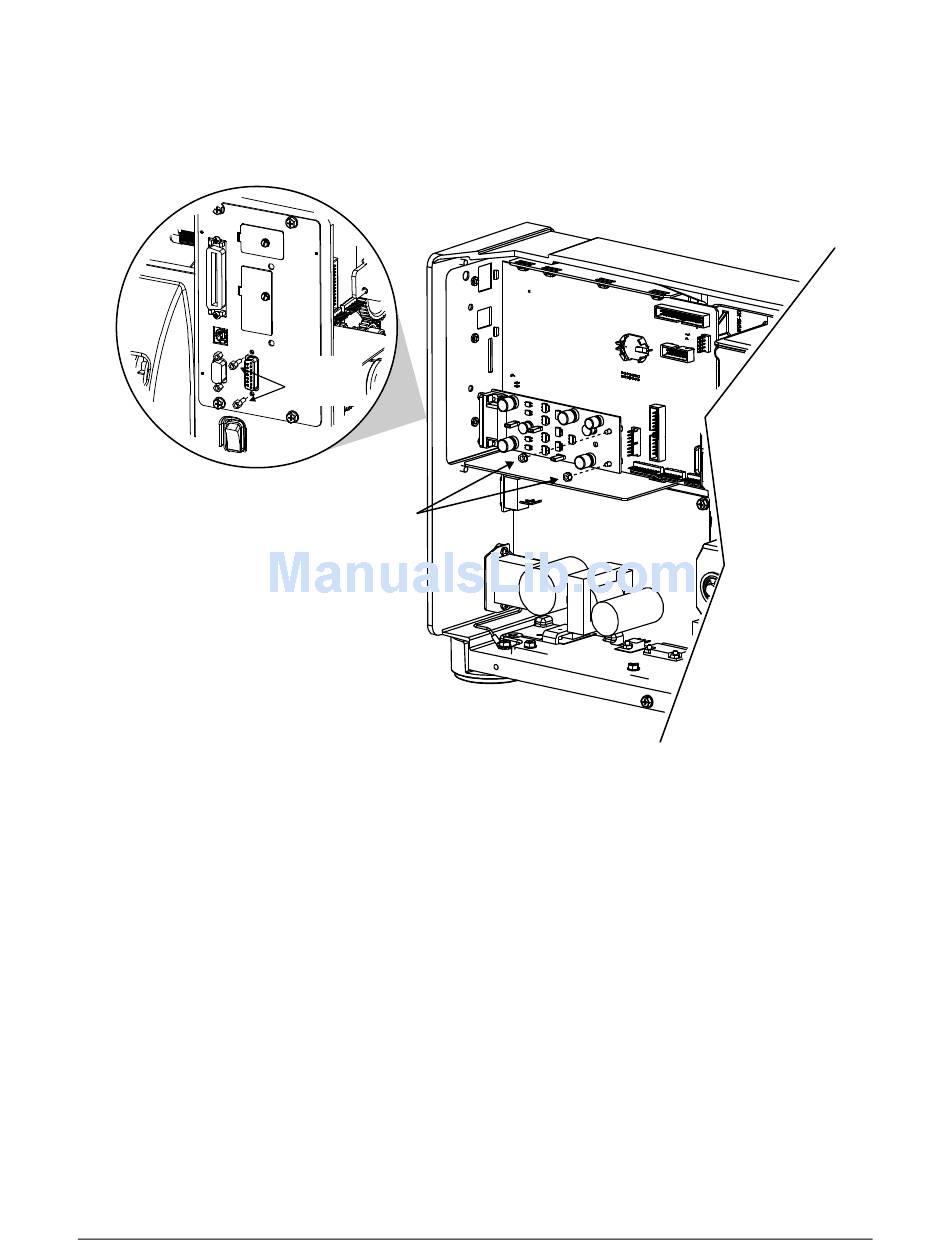

F) Install the GPIO Card into the printer. First insert the "Port" end into the cut-out in the
rear of the printer. Then pivot the GPIO Card onto the two Standoffs.
G) Loosely install the two previously removed Jack Screws and the two 5.5mm Nuts.
H) Tighten the two Jack Screws and the two 5.5mm Nuts. Proceed to "Configuring the
Hardware" on the next page.
Jack
Screws
5.5mm
Nuts
4
