Installation manual:
5008

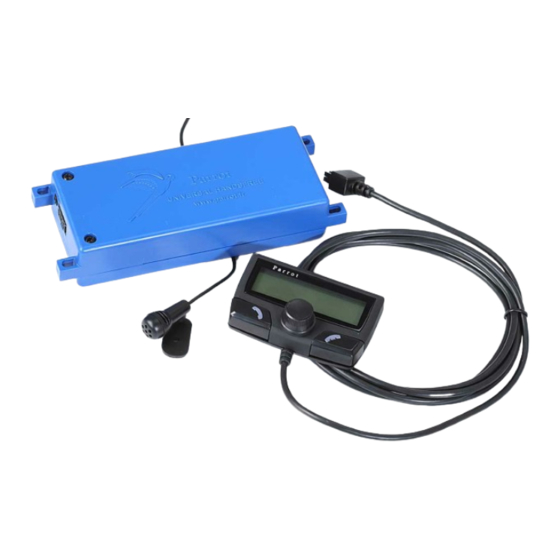

Parrot MKi + Parrot
CK3100 range
5008
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
The brand name PEUGEOT 5008 and the PEUGEOT logo are the property of AUTOMOBILES PEUGEOT.
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
This document is only valid for the vehicle model 5008® year 2009 to 2011, excluding all other models in the same range and excluding later
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
modifications made to the vehicle by the manufacturer.
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
The Parrot brand name and logos are the exclusive property of Parrot SA.
Advertisement
Related Manuals for Parrot Parrot MKi + Parrot CK3100 range 2008
Summary of Contents for Parrot Parrot MKi + Parrot CK3100 range 2008
- Page 1 This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is The brand name PEUGEOT 5008 and the PEUGEOT logo are the property of AUTOMOBILES PEUGEOT. solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All This document is only valid for the vehicle model 5008®...
- Page 2 5008 Fitting time (estimated) / Main features Disassembly 20min ACC wire Kit installation 30min Refitting 20min UNIKA Testing 15min FRONT SPEAKER TEL mode Total 1h25min MUSIC mode Tools Plastic trim removal tools FACOM / BERNER - Multimeter or Test lamp - Hose clamp - Electrical tape FACOM Sleeve...
- Page 3 5008 Disassembly This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All rights reserved ©...
- Page 4 5008 Disassembly 1 / 2 Insert the removal tools into the Unclip, pull and lift the radio making slots on each side of the radio. sure you properly disconnect the connector and the antenna. Using the plastic trim tools, unclip Then remove them without the display and the air vent.
- Page 5 5008 Disassembly 2 / 2 Using the plastic trim tools, release Remove the door seal on the the cabin light without disconnecting driver’s side. This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation.
- Page 6 5008 Finding an ACC wire On the DIAG socket, unclip the Using a jumper or a pigtail left-hand side, then push the connection connect a wire to the socket to the back and bring it out YELLOW wire on the top left. through the top.
- Page 7 5008 Microphone feeding 1 / 2 Run the microphone cable inside and Make a hole in the cabin light towards the windscreen. vanes. Using the plastic trim tools, run the Stick the bracket (supplied) to the cable under the headliner and into windscreen after thoroughly cleaning the windscreen post the surface.
- Page 8 5008 Microphone feeding 2 / 2 Run the cable under the dashboard into the glove box housing and towards the radio, attaching it with wire ties. This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation.
- Page 9 5008 Feeding the accessory cable Pass a guide from the glove box Pass the cable through the hole at towards the radio housing. the bottom inside the glove box. Mount the supplied cover on the Then bring it out leaving cable.
- Page 10 5008 Fitting the hands-free system 1 / 2 Connect the adaptor to the original connector. Connect all of the wires to the blue box as shown in the diagram below. Test before refitting, then slide the assembly behind the screen after refitting the radio. adapter This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes.
- Page 11 5008 Fitting the hands-free system 2 / 2 Run the bracket cable between Stick the bracket supplied to the the screen and the air vents. left of the WARNING button after having cleaned the surface. Then re-fit the screen and the air vents. (BE CAREFUL not to cut the cable) This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes.
- Page 12 5008 Testing Before refitting the system, switch the kit on using the ignition (or by starting the car). By pushing the central knob of the remote control, check: 1 - That the menu is displayed on the screen. (Language or iPod.) 2 - That the system can be muted.
- Page 13 5008 Reassembly Refit the system using the following procedure: 1 - Reconnect the adaptor and the antenna and refit the radio. (Put the blue box with the cables on top.) 2 – Re-fit the screen. (Be CAREFUL not to cut the cable.) 3 - Clip the fuse box cover back on.
