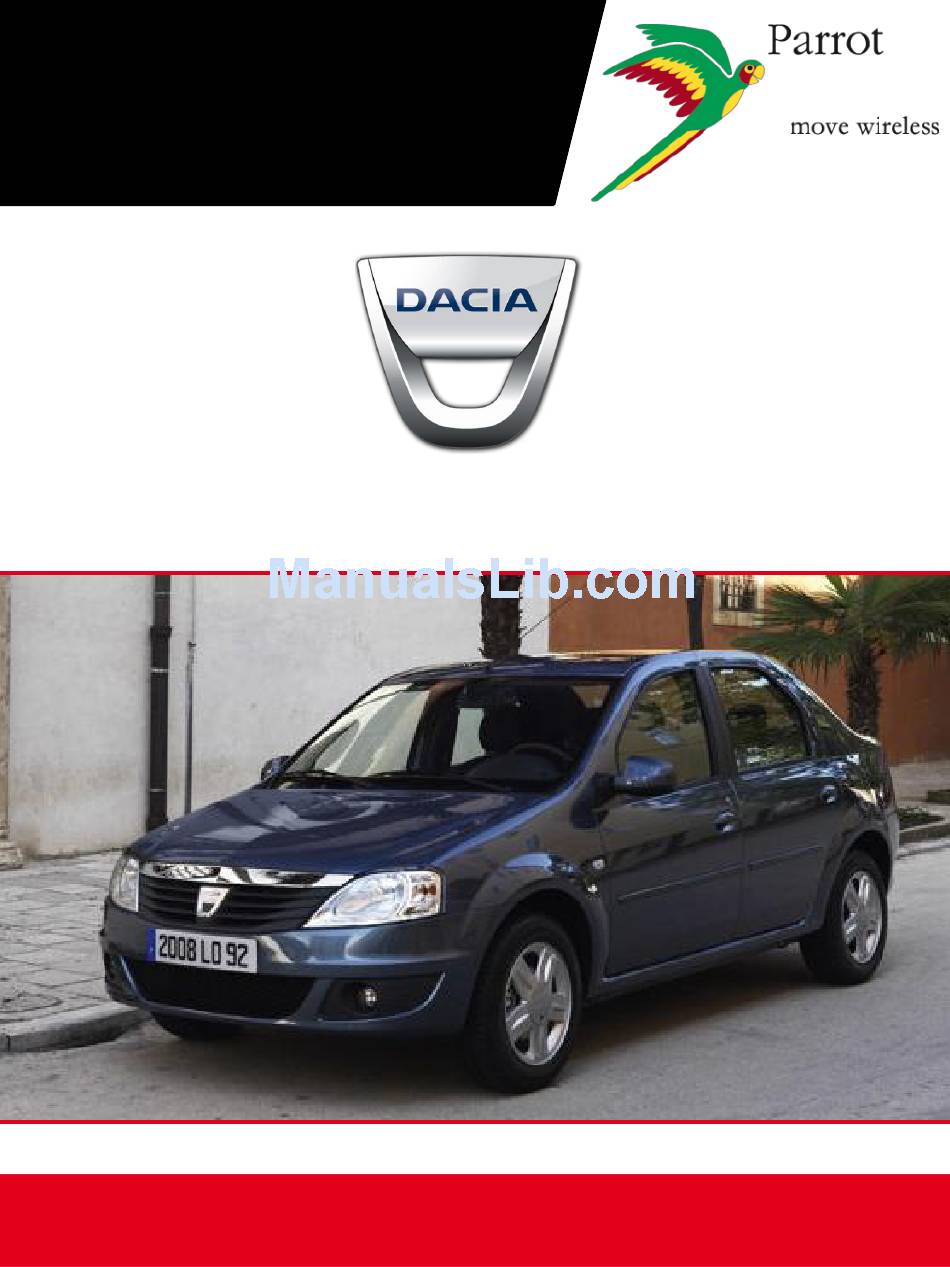

LOGAN
Installation manual:
Parrot MKi + Parrot
CK3100 range
LOGAN
This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in
The brand name DACIA LOGAN and the DACIA logo are the property of DACIA.
compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible
This document is only valid for the vehicle model LOGAN® year 2008 to 2011, excluding all other models in the same range and excluding later
for the quality of the installation. All rights reserved © Copyright 2011 PARROT SA RCS PARIS 394 149 496. May not be reproduced without the
modifications made to the vehicle by the manufacturer.
authorisation of Parrot SA. Pictures for information only.
The Parrot brand name and logos are the exclusive property of Parrot SA.
Advertisement
Related Manuals for Parrot Parrot MKi + ParrotCK3100 range LOGAN
Summary of Contents for Parrot Parrot MKi + ParrotCK3100 range LOGAN
- Page 1 This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in The brand name DACIA LOGAN and the DACIA logo are the property of DACIA. compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible This document is only valid for the vehicle model LOGAN®...
- Page 2 LOGAN Fitting time (estimated) / Main features Disassembly 15min +IGN Mounting kit 20min Reassembly 15min UNIKA Testing 15min FRONT LOUDSPEAKER TEL mode Total 1h 05min MUSIC mode Tools Plastic trim removal tools -Multimeter or Test lamp FACOM / BOJO - Wire tie -Electrical tape FACOM DX-25 kit (n°4 tools) Accessories required...
- Page 3 LOGAN Disassembly This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible for the quality of the installation.
- Page 4 LOGAN Disassembly Insert the removal tools into the Unclip the radio, pull it out and slots on each side of the radio. unplug the connectors and the antenna then remove the radio. Using the plastic trim removal Remove the passenger side door tools, unclip the car stereo and seal.
-
Page 5: Glove Box
LOGAN Microphone passage Glue the bracket (supplied) to the Run the cable under the headliner windscreen, after having to the passenger side support. thoroughly degreased the surface. Run the cable along the passenger Then pass the cable under the side windshield support while dashboard on the bottom of the replacing the door seal. - Page 6 LOGAN Feeding the accessory cable In the bottom of the glove box, Then bring it out into the radio insert the cable into the hole housing, taking care to leave next to the DIAG socket. enough length. This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible for the quality of the installation.
- Page 7 LOGAN Fitting the hands-free system 1 / 2 On the kit connector (supplied), reverse the fuses (i.e. swap the red and orange wires) and connect all the cables to the blue box as shown in the diagram below. Test everything before reassembling...
- Page 8 LOGAN Fitting the hands-free system 2 / 2 Glue the bracket (supplied) under Pass the cable into the air the cover of the central console conditioning housing while clipping between the air vents, after the console cover (TAKE CARE carefully degreasing the surface. avoid cutting the screen cable).
- Page 9 LOGAN Testing Before refitting the system, switch the kit on using the ignition (or by starting the car). By pushing the central knob of the remote control, check: 1 - that the menu is displayed on the screen (language or iPod etc) 2 - that the radio system is muted when the kit is in use (click in the blue box)
- Page 10 LOGAN Reassembly Refit the system using the following procedure: 1 - reconnect the connectors and the antenna to the radio and slide it into its housing. This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible for the quality of the installation.
