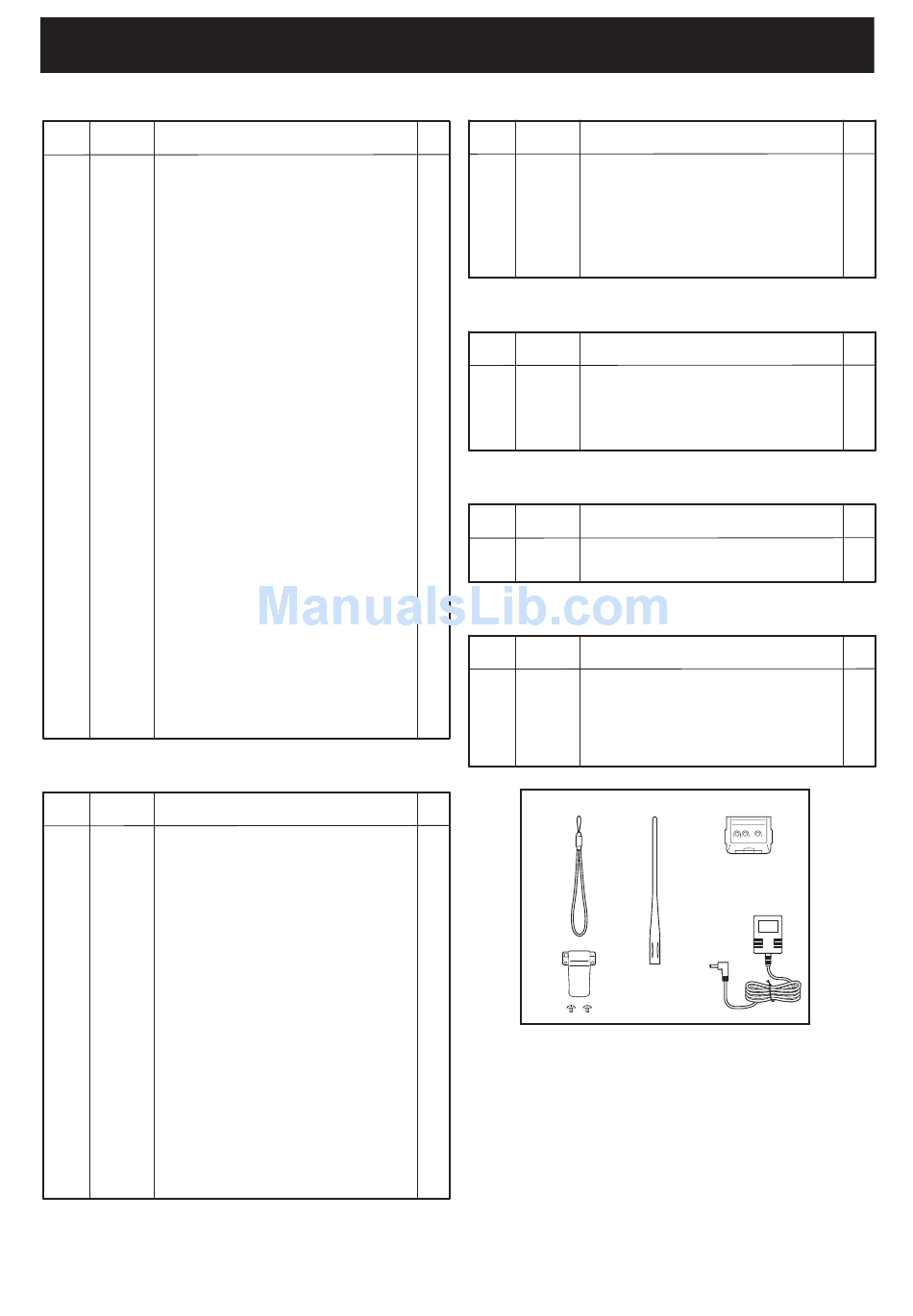

SECTION 7
[CHASSIS PARTS]
REF ORDER
NO. NO.
J1 6910017840 2905 ANT CONNECTOR
S702 2250000630 TP70D974E20-21F-3066
W1 8900016810 OPC-1792 (Incl. W2)
W2 8900016791 OPC-1763A
MP1 8210024420 3066 REAR PANEL
MP2 8210024300 3066 PTT PANEL
MP3 8310070540 3066 LOCK PLATE
MP4 8310070550 3066 T-HOLDER
MP5 8930073710 3066 MIC CAP
MP6 8930073700 3066 DC CAP
MP7 8930073730 3066 MAIN SEAL
MP8 8930073720 3066 PTT RUBBER
MP9 8930073740 3066 T-RUBBER
MP10 8930073880 3066 BP SHEET
MP11 8930073870 3066 SHEET
MP12 8930073750 3066 SHAFT
MP13 8610012870 KNOB N-342 (Incl. MP21)
MP14 8610012890 KNOB N-342 COVER
MP15 8610013520 KNOB N-364
MP16 8930073850 O-RING (BP)
MP17 8850002830 PLAIN WASHER (AO)
MP18 8930053590 O-RING (AG)
MP19 8830001160 VR NUT (K)
MP20 8830001470 VR NUT (N)
MP21 8610007510 KNOB SPRING NO.7800
MP22 8930059830 2600 SHEET
MP23 8850002770 PLAIN WASHER (AM)
MP24 8810009511 SCREW BT B0 2X4 NI-ZC3 (BT)
MP25 8810009181 0-TAP FLAT WASHER B0 2X5 NI-ZC3 (BT)
MP26 8810010450 0-TAP SCREW PH M2X3 SUS SSBC
MP27 8810009161 SCREW BT B0 2X20 SUS SSBC
MP28 8810010750 SCREW BTB0 2X6SUS SSBC (BT)
MP29 8810010191 SCREW BiH M2X4 SUS SSBC
MP30 8810010630 0-TAP SCREW 3 PH M2X3 SUS SSBC
MP31 8950007300 3066 CONTACT SPRING
MP32 8930057022 THERMALLY SHEET (AE)-2
MP34 8930074690 3066 T-SHEET
MP35 8510018710 3066 MIC SHIELD
MP36 8930070590 SHIELD TAPE (S)
MP37 8930074980 SHIELD SPONGE (CF)
MP38 8510018950 3066 SHIELD PLATE
[LOGIC UNIT]
REF ORDER
NO. NO.
DS1 5030002880 HLM7972-010100
MC300 7700002850 EM6022P-65B-G
SP1 2510001420 PSC-2849PA
W1 7120000470 ERDS2T0
W2 8900007682 OPC-741A-1
MP1 8210024350 3066 FRONT PANEL ASSY (Incl. MP8)
MP2 8310070860 3066 WINDOW PLATE (B)
MP3 8930073580 3066 LED LENS
MP4 8930073640 3066 KEY
MP5 8930073860 3066 WINDOW SHEET
MP6 8210022450 2888 REFLECTOR
MP7 8930074790 3066 LCD SPONGE
MP8 8930018220 870 SARAN NET
MP9 8930048840 2135 MIC SPONGE
MP10 8930061110 2681 MIC TAPE
MP11 8810009511 SCREW BT B0 2X4 NI-ZC3 (BT)
MP12 8930062970 DOUBLE SIDE TAPE (AN)
MP13 8930074970 3066 WHITE SHEET
MP24 8510017840 OG-321610G
MP500 8510017840 OG-321610G
MP501 8510017840 OG-321610G
MP510 8510017840 OG-321610G
MP511 8930074500 3066 A-SPRING
MP512 8930074510 3066 B-SPRING
*: Refer to SECTION 9 "BOARD LAYOUTS."
SCREW abbreviations
MECHANICAL PARTS
DESCRIPTION
DESCRIPTION
A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
[MAIN UNIT]
REF ORDER
QTY.
NO. NO.
J702 6510024131 IMSA-9637S-40Y905
1
J703 6510022880 AXK5S30340P
1
S700 2260002840 SKHLLFA010
S701 2260002840 SKHLLFA010
1
1
MP300 8510016470 2775 VCO CASE
MP301 8510016460 2775 VCO COVER
1
MP302 8510017840 OG-321610G
1
1
1
1
[RF UNIT]
1
1
REF ORDER
1
NO. NO.
1
1
J800 6510025370 AXK816145YG
1
J1000 6450000870 HEC2711-01-020
1
J1001 6510024410 AXK6S30545
1
1
MP100 8410002610 2888 PA HEATSINK
1
MP101 6910014760 OG-503040
1
1
1
1 [VCO UNIT]
1
REF ORDER
1
NO. NO.
1
7
J1 6510025380 AXK716147G
10
2
MP1 8510017470 2888 VCO CASE
2
2
4
1 [ACCESSORIES]
1
REF ORDER
1
NO. NO.
2
1
EP1 3310002150 FA-S270C
1
EP2 (Optional) BP-256
1
EP3 (Optional) BC-167D
1
EP4 6910018620 BLACK HANDY STRAP
1
MP1 (Optional) MB-111 (Incl. MP2)
MP2 8810010470 SCREW truss M3X4 SUS SSBC
EP4
QTY.
1
1
1
1
1
1
1
MP1
1
1
1
MP2
1
1
1
1
1
8
1
1
1
1
1
1
1
1
7 - 1
DESCRIPTION
DESCRIPTION
DESCRIPTION
DESCRIPTION
EP1 EP2
EP3
QTY.
1
1
1
1
1
1
1
QTY.
1
1
1
1
1
QTY.
1
1
QTY.
1
1
1
1
1
2
