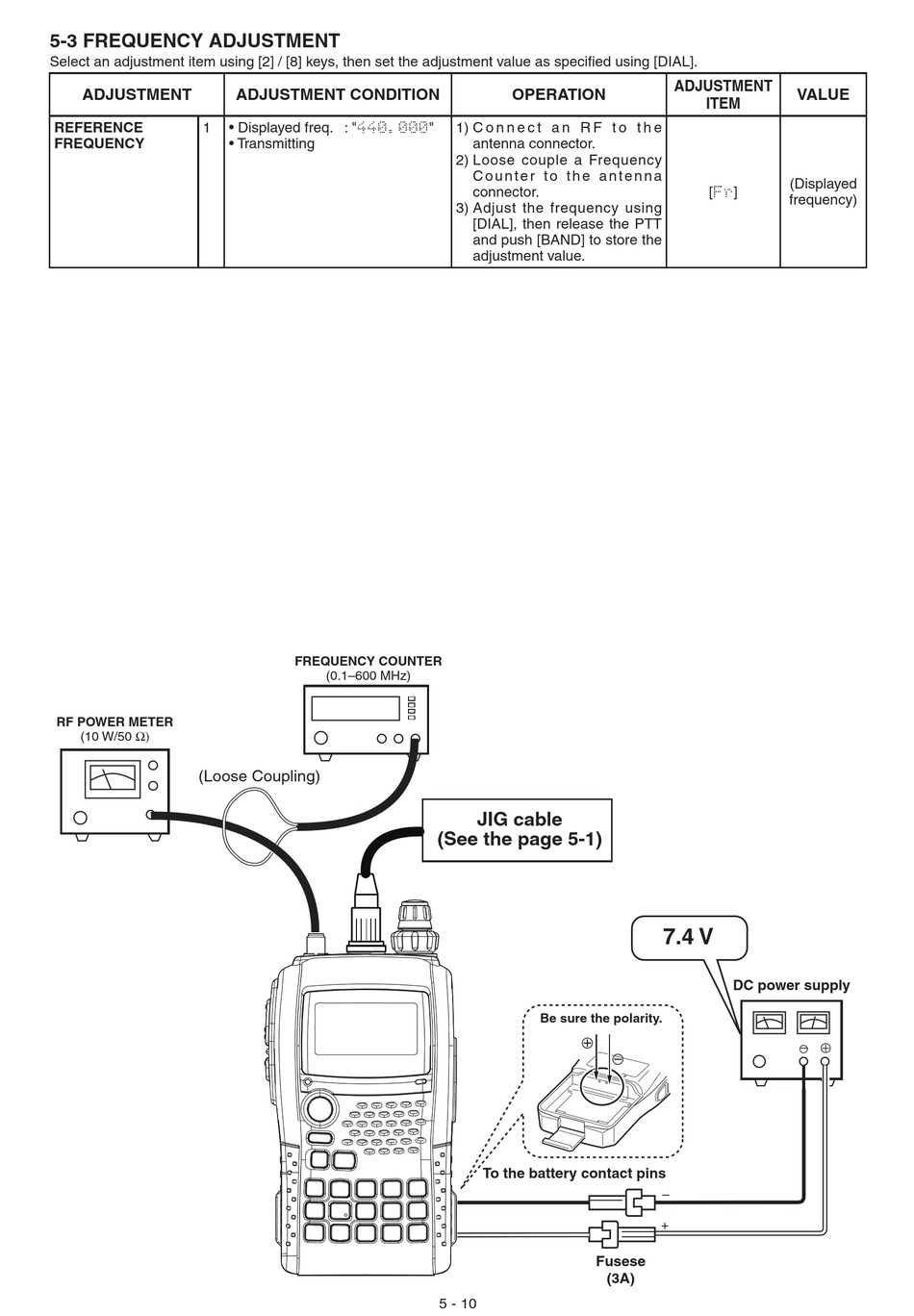

5-3 FREQUENCY ADJUSTMENT

Select an adjustment item using [2] / [8] keys, then set the adjustment value as specifi ed using [DIAL].
ADJUSTMENT
REFERENCE 1
FREQUENCY
RF POWER METER
(10 W/50 Ω)
(Loose Coupling)
ADJUSTMENT CONDITION
• Displayed freq. : "
• Transmitting
FREQUENCY COUNTER
(0.1–600 MHz)
OPERATION
" 1) C o n n e c t a n R F t o t h e
antenna connector.
2) Loose couple a Frequency
C o u n t e r t o t h e a n t e n n a
connector.
3) Adjust the frequency using
[DIAL], then release the PTT
and push [BAND] to store the
adjustment value.
JIG cable
(See the page 5-1)
Be sure the polarity.
To the battery contact pins
Fusese
5 - 10
ADJUSTMENT
ITEM
[ ]
7.4 V
DC power supply
–
+
(3A)
VALUE
(Displayed
frequency)
−
⊕
