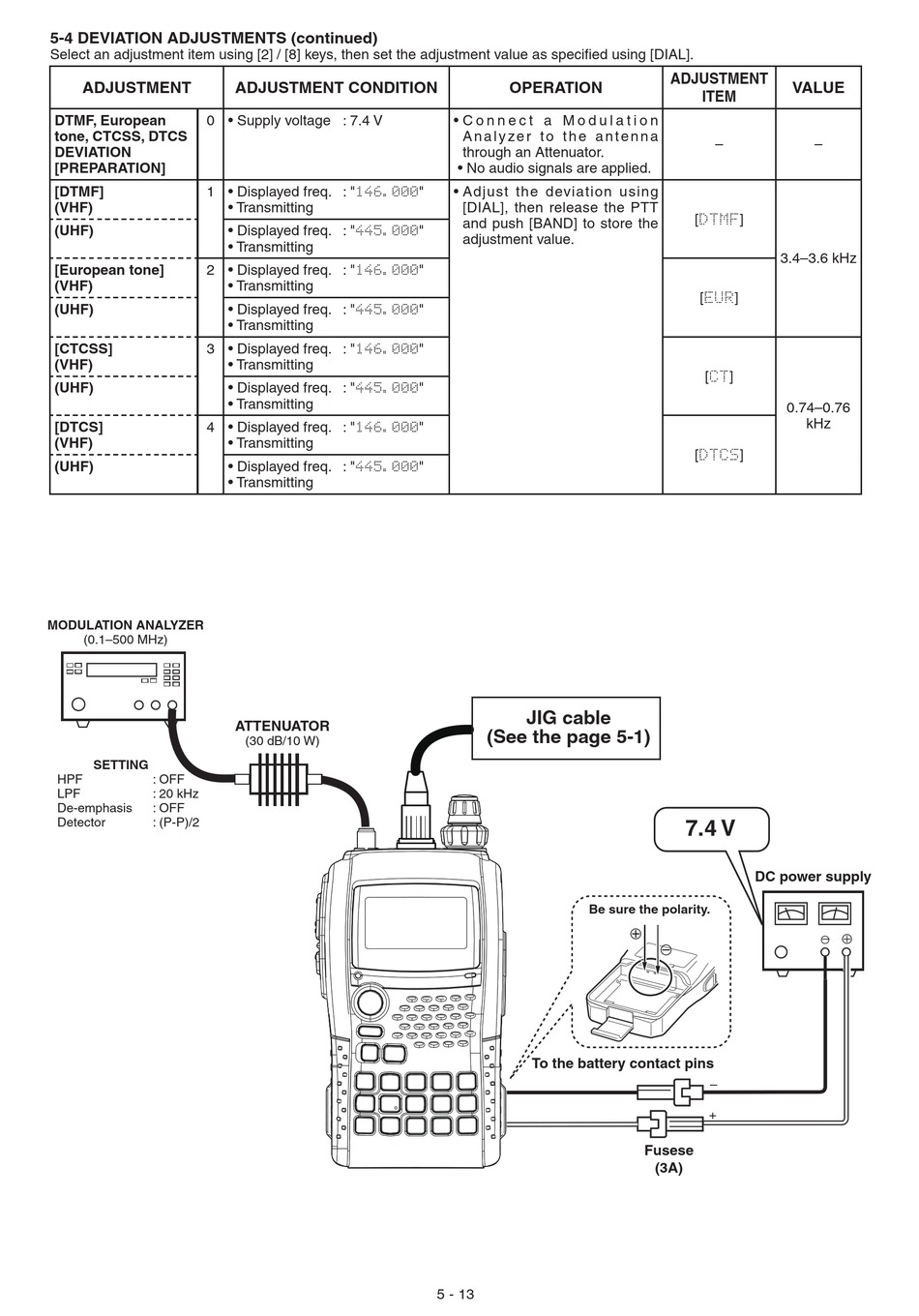

5-4 DEVIATION ADJUSTMENTS (continued)
Select an adjustment item using [2] / [8] keys, then set the adjustment value as specifi ed using [DIAL].
ADJUSTMENT
DTMF, European 0 • Supply voltage : 7.4 V
tone, CTCSS, DTCS
DEVIATION
[PREPARATION]
[DTMF] 1 • Displayed freq. : "
(VHF)
(UHF)
[European tone] 2 • Displayed freq. : "
(VHF)
(UHF)
[CTCSS] 3 • Displayed freq. : "
(VHF)
(UHF)
[DTCS] 4 • Displayed freq. : "
(VHF)
(UHF)
MODULATION ANALYZER
(0.1–500 MHz)
SETTING
HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P-P)/2
ADJUSTMENT CONDITION
• Transmitting
• Displayed freq. : "
• Transmitting
• Transmitting
• Displayed freq. : "
• Transmitting
• Transmitting
• Displayed freq. : "
• Transmitting
• Transmitting
• Displayed freq. : "
• Transmitting
ATTENUATOR
(30 dB/10 W)
OPERATION
• C o n n e c t a M o d u l a t i o n
A n a l y z e r t o t h e a n t e n n a
through an Attenuator.
• No audio signals are applied.
" • Adjust the deviation using
[DIAL], then release the PTT
and push [BAND] to store the
"
adjustment value.
"
"
"
"
"
"
JIG cable
(See the page 5-1)
Be sure the polarity.
To the battery contact pins
5 - 13
ADJUSTMENT
VALUE
ITEM
– –
[ ]
3.4–3.6 kHz
[ ]
[ ]
0.74–0.76
kHz
[ ]
7.4 V
DC power supply
–
+
Fusese
(3A)
−
⊕
