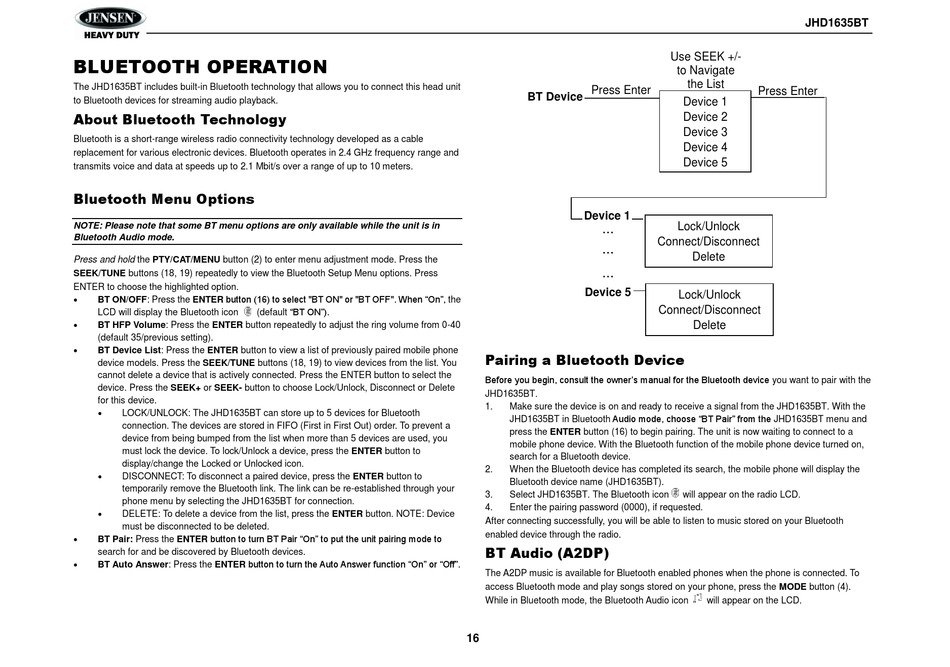

BLUETOOTH OPERATION

The JHD1635BT includes built-in Bluetooth technology that allows you to connect this head unit
to Bluetooth devices for streaming audio playback.
About Bluetooth Technology
Bluetooth is a short-range wireless radio connectivity technology developed as a cable
replacement for various electronic devices. Bluetooth operates in 2.4 GHz frequency range and
transmits voice and data at speeds up to 2.1 Mbit/s over a range of up to 10 meters.

Bluetooth Menu Options

NOTE: Please note that some BT menu options are only available while the unit is in
Bluetooth Audio mode.
Press and hold the PTY/CAT/MENU button (2) to enter menu adjustment mode. Press the
SEEK/TUNE buttons (18, 19) repeatedly to view the Bluetooth Setup Menu options. Press
ENTER to choose the highlighted option.

BT ON/OFF: Press the ENTER button (16) to select "BT ON" or "BT OFF". When "On", the
LCD will display the Bluetooth icon

BT HFP Volume: Press the ENTER button repeatedly to adjust the ring volume from 0-40
(default 35/previous setting).

BT Device List: Press the ENTER button to view a list of previously paired mobile phone
device models. Press the SEEK/TUNE buttons (18, 19) to view devices from the list. You
cannot delete a device that is actively connected. Press the ENTER button to select the
device. Press the SEEK+ or SEEK- button to choose Lock/Unlock, Disconnect or Delete
for this device.

LOCK/UNLOCK: The JHD1635BT can store up to 5 devices for Bluetooth
connection. The devices are stored in FIFO (First in First Out) order. To prevent a
device from being bumped from the list when more than 5 devices are used, you
must lock the device. To lock/Unlock a device, press the ENTER button to
display/change the Locked or Unlocked icon.

DISCONNECT: To disconnect a paired device, press the ENTER button to
temporarily remove the Bluetooth link. The link can be re-established through your
phone menu by selecting the JHD1635BT for connection.

DELETE: To delete a device from the list, press the ENTER button. NOTE: Device
must be disconnected to be deleted.

BT Pair: Press the ENTER button to turn BT Pair "On" to put the unit pairing mode to
search for and be discovered by Bluetooth devices.

BT Auto Answer: Press the ENTER button to turn the Auto Answer function "On" or "Off".
(default "BT ON").
Press Enter
BT Device
Device 1
...
...
...
Device 5

Pairing a Bluetooth Device

Before you begin, consult the owner's manual for the Bluetooth device you want to pair with the
JHD1635BT.
1. Make sure the device is on and ready to receive a signal from the JHD1635BT. With the
JHD1635BT in Bluetooth Audio mode, choose "BT Pair" from the JHD1635BT menu and
press the ENTER button (16) to begin pairing. The unit is now waiting to connect to a
mobile phone device. With the Bluetooth function of the mobile phone device turned on,
search for a Bluetooth device.
2. When the Bluetooth device has completed its search, the mobile phone will display the
Bluetooth device name (JHD1635BT).
3. Select JHD1635BT. The Bluetooth icon
4. Enter the pairing password (0000), if requested.
After connecting successfully, you will be able to listen to music stored on your Bluetooth
enabled device through the radio.

BT Audio (A2DP)

The A2DP music is available for Bluetooth enabled phones when the phone is connected. To
access Bluetooth mode and play songs stored on your phone, press the MODE button (4).
While in Bluetooth mode, the Bluetooth Audio icon
16
JHD1635BT
Use SEEK +/-
to Navigate
the List
Press Enter
Device 1
Device 2
Device 3
Device 4
Device 5
Lock/Unlock
Connect/Disconnect
Delete
Lock/Unlock
Connect/Disconnect
Delete
will appear on the radio LCD.
will appear on the LCD.
