Goodman GMP Installation & Operating Instructions Manual

Power vented multi-position gas furnace
Hide thumbs Also See for GMP:
Table of Contents

Advertisement

Quick Links

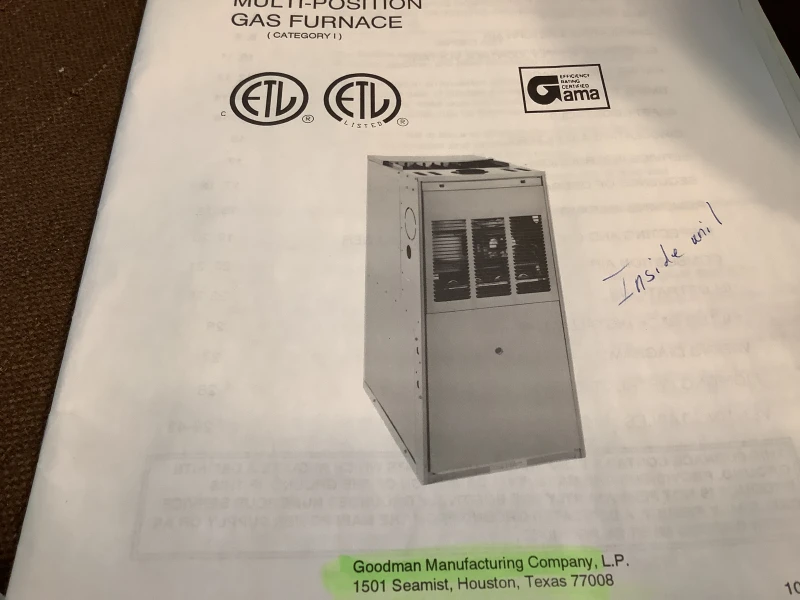

INSTALLATION & OPERATING
POWER VENTED MULTI-POSITION
(CATEGORY I)
IF THIS FURNACE IS INSTALLED IN AN ENCLOSED AREA, SUCH AS A GARAGE OR UTILITY
ROOM, WITH ANY OTHER CARBON MONOXIDE PRODUCING DEVICE (i.e., AUTOMOBILE,
SPACE HEATER, ETC.) INSURE THAT THE ENCLOSED AREA IS PROPERLY VENTILATED.
CARBON MONOXIDE (REFERRED TO AS CO) CAN CAUSE PERSONAL INJURY OR DEATH
THIS FURNACE IS DESIGN CERTIFIED FOR INSTALLATION IN BUILDINGS CONSTRUCTED
ON SITE ONLY.
IO-137H
INSTRUCTIONS
for GMP & GMPE

GAS FURNACE

WARNING
WARNING
WARNING
Goodman Manufacturing Company, LP
2550 North Loop West, Suite 400
Houston, Texas 77092
www.goodmanmfg.com
12/01

Advertisement

Table of Contents
loading

Related Manuals for Goodman GMP

Summary of Contents for Goodman GMP

  • Page 1: Gas Furnace

    INSTALLATION & OPERATING INSTRUCTIONS for GMP & GMPE POWER VENTED MULTI-POSITION GAS FURNACE (CATEGORY I) WARNING IF THIS FURNACE IS INSTALLED IN AN ENCLOSED AREA, SUCH AS A GARAGE OR UTILITY ROOM, WITH ANY OTHER CARBON MONOXIDE PRODUCING DEVICE (i.e., AUTOMOBILE, SPACE HEATER, ETC.) INSURE THAT THE ENCLOSED AREA IS PROPERLY VENTILATED.

  • Page 2: Replacement Parts

    REPLACEMENT PARTS Replacement parts for this appliance is available through your contractor or local distributor. For the location of your nearest distributor consult the white business pages, the yellow page section of the local telephone book or contact; SERVICE PARTS DEPARTMENT GOODMAN MANUFACTURING CO., LP 1501 SEAMIST HOUSTON, TEXAS 77008...

  • Page 3: Table Of Contents

    INDEX WARNINGS & GENERAL INFORMATION ................4, 5 CLEARANCES, LOCATION ..................... 5, 6 VENTING............................6 GAS PIPING TABLE......................... 7, 8 CIRCULATING & RETURN AIR .................... 8 - 10 ELECTRICAL SUPPLY, CONTROL VOLTAGE ..............10, 11 RATING THE FURNACE...................... 11, 12 TIMING THE GAS METER......................
  • Page 4 BASEMENT UNLESS SUCH LOCATION IS PROVIDED WITH APPROVED MEANS FOR REMOVAL OF UNBURNED GAS. GENERAL INFORMATION The GMP and GMPE series of gas furnaces may be installed in the upflow, horizontal or downflow configuration. Unless otherwise noted, the instructions contained within are valid for all of these configurations.
  • Page 5 These Installation and Operating Instructions are intended for use by fully qualified installation technicians. Some localities require the installer/servicer to be licensed. If in doubt, check with local authorities. INSTALLATION: In the USA this furnace must be installed according to the latest edition of the ANSI Z223.1 booklet entitled “National Fuel Gas Code”...

  • Page 6: Venting

    ACCESSIBILITY CLEARANCE, WHERE GREATER, SHOULD TAKE PRECEDENCE OVER MINIMUM FIRE PROTECTION CLEARANCE. A gas fired furnace for installation in a residential garage must be installed so that the ignition source and burners are located not less than eighteen inches (18”) above the floor and is protected or located to prevent physical damage by vehicles.
  • Page 7 GAS PIPING & GAS PIPE CAPACITY TABLE Check the rating plate to make certain that the unit is equipped to burn the type of gas supplied. Care should be taken after the installation of this appliance that the gas control valve is not sub- jected to high gas supply line pressure.
  • Page 8 SIZE* 1 1/4 1050 1 1/2 1600 1100 * Nominal size of Iron Pipe in inches. After the length of pipe has been determined, select the pipe size that will provide the minimum cu- bic feet per hour of gas flow for the required input of the appliance. In the case where more than one appliance utilizes the same supply pipe be sure to consider the sum of all appliances.
  • Page 9 Note: When a combination of outdoor and indoor air is used the system should be designed and adjusted so that the temperature reaching the appliance will not drop below 50 F during heating operation. When this type of system is used the volume of air must not be reduced. Plenum chambers and air ducts must be installed in accordance with the Standard for the Installa- tion of Air Conditioning and Ventilating Systems, NFPA # 90A, or the Standard for the Installation of Warm Air Heating and Air Conditioning Systems, NFPA # 90B.
  • Page 10 WHERE THE MAXIMUM REQUIRED AIR FLOW IS 1800 CFM OR GREATER THE BOTTOM OR BOTH SIDES MUST BE UTILIZED FOR RETURN AIR SUPPLY. NEVER USE THE REAR OF THE FURNACE FOR THE RETURN AIR CONNECTION. WARNING A SOLID METAL BASEPLATE IS SUPPLIED ON THIS FURNACE. THIS BASEPLATE MUST BE IN PLACE WHEN THE FURNACE IS INSTALLED WITH SIDE(S) RETURN AIR DUCTS.

  • Page 11: Rating The Furnace

    The following method should be used in measuring the amp draw of the control circuit to assure proper adjustment of the thermostat heat anticipator RATING THE FURNACE The furnace is supplied with orifices sized for natural gas at altitudes up to 2,000 feet using a heating value of approximately 1,000 Btu/hr, and should not normally require change.

  • Page 12: Timing The Gas Meter

    EXAMPLE: Corrected input for a 100,000 Btu/hr. appliance installed at an altitude of 6.000 ft. utilizing natural gas with a heating value of 1,000 Btu/ft is determined by- Corrected Input = 100,000 - (6,000 X .04) X (100,000 / 1,000) Corrected Input = 100,000 - (240 X 100) Corrected Input = 100,000 - 24,000 Corrected Input = 76,000...
  • Page 13 inability to maintain the proper pressure range will require reorificing. After reorificing, repeat the above steps to insure that the furnace input is adjusted properly. • Turn off gas and electrical supply, remove manometers and replace any plugs that were re- moved.
  • Page 14 This furnace uses a vent pressure switch that prevents the furnace from operating should any por- tion of the vent system become restricted or a venter failure occur. To check this switch, place the furnace in operation and remove the hose from the switch. The gas burners will extinguish. Re- placing the hose will allow the furnace to operate normally.

  • Page 15: Circulating Air Filters

    CIRCULATING AIR FILTERS One of the most common cause of a problem in a forced air heating system is a blocked or dirty filter. Circulating air filters must be inspected monthly for dirt accumulation and replaced if neces- sary. Failure to maintain clean filters can cause premature heat exchanger failure. A new home may require more frequent replacement until all construction dust and dirt is re- moved.

  • Page 16: Service Instructions

    MOTOR LUBRICATION AND MAINTENANCE The circulating air blower is equipped with bearings that are permanently lubricated by the motor manufacturer and require no lubrication. At the time of the monthly filter inspection clean the exte- rior of the circulating air motor, especially around the perimeter air holes to prevent the possibility of overheating due to an accumulation of dust or dirt on the windings and motor casing.

  • Page 17: Removing An Existing Appliance

    HEATING MODE • The furnace control checks for an open main limit (this limit is normally closed). If the main limit is open, the furnace will remain inoperable until the limit is closed. During an open limit the cir- culating air blower and vent blower will be energized. The status light will blink four (4) times. •...

  • Page 18: Inspecting And Cleaning The Heat Exchanger

    a) Seal any unused openings in the venting system; b) Inspect the venting system for proper size and horizontal pitch, as required in the National Fuel Gas Code, ANSI Z223.1 or the CAN/CGA B149 Installation Codes and these instructions. Deter- mine that there is no blockage or restriction, leakage, corrosion and other deficiencies which could cause an unsafe condition;...
  • Page 19 • With a stiff wire brush on a flexible handle remove any loose scale from the heat exchanger at both the flue and burner openings. • With a vacuum remove any loose scale dislodged and any additional debris found in the heat exchanger.
  • Page 20 IO137...

  • Page 21: Combustion Air

    CLEARANCES FROM COMBUSTIBLE SURFACES VENT PIPE CLEARANCE TO COMBUSTIBLES 6” USING ADEQUATE COMBUSTION / SINGLE WALL CONNECTOR COMBUSTION AIR MUST BE OR 1” USING B-1 VENT SUPPLIED TO THE CLOSET. AIR FOR COMBUSTION OR CLEARANCES TO COMBUSTIBLES VENTILATION MAY NOT BE FRONT 3”(24”...

  • Page 22: Horizontal Installation

    VENT RETURN SUPPLY SUPPORT OR SUSPEND UNIT IN THREEE PLACES: LEFT, RIGHT, AND CENTER. HORIZONTAL INSTALLATION RETURN VENT PIPE OPTIONAL NON-COMBUSTIBLE SUB BASE (SBM-XXX) NECESSARY WHEN INSTALLED ON COMBUSTIBLE FLOORING WITHOUT COOLING COIL MAINTAIN PROPER CLEARANCES TO COMBUSTIBLES SUPPLY AIR DOWNFLOW INSTALLATION IO137...
  • Page 23 ROTATION OF VENT BLOWER THE VENTER ASSEMBLY MAY BE ROTATED TO FIT THE VENTING REQUIREMENTS. REMOVE THE FOUR PERIMETER SCREWS, ROTATE THE VENTER TO THE DESIRED POSITION AND REINSERT AND TIGHTEN THE SCREWS. THE ORIFICE PLATE MUST BE ROTATED ALONG WITH THE VENTER ASSEMBLY FOR PROPER COMBUSTION AND IGNITION.
  • Page 24 BLOWER OFF DELAY In the heating mode, the time period between the extinguishing of the burners and the circu- lating blower turning off, is known as the “Blower Off Delay.” This time is factory preset at 150 seconds. The 150 second delay can be changed to 120 or 90 seconds by changing the position of a jumper on the Ignition Control.
  • Page 25 GMP ONLY IO137...
  • Page 26 GMPE ONLY IO137...

  • Page 27: Lighting Instructions

    LIGHTING INSTRUCTIONS These instructions are also on the furnace FOR YOUR SAFETY READ BEFORE OPERATING WARNING: Improper installation, adjustm- If you do not follow these instructions exactly, ent, alteration, service a fire or explosion may result causing property or maintenance can damage, personal injury or loss of life.
  • Page 28 EXTERIOR MASONRY CHIMNEYS - CATEGORY I furnaces only. An exterior masonry chimney is defined as a “Masonry chimney exposed to the outdoors on one or more sides below the roof line.” The ability to use a clay lined masonry chimney depends on a parameter not associated with interior chimneys.
  • Page 29 GENERAL VENTING REQUIREMENTS The requirements contained herein apply to both Category I draft hood equipped and fan as- sisted combustion appliances. At no time should a venting system listed for a Category II, III, or IV appliance be sized with these tables. The alternate sizing methods described in the National Fuel Gas Code (NFPA54/ANSI Z223.1-1996) may also be used to size the venting system for a draft hood equipped appliance.
  • Page 30 ity must be reduced by 20% (0.80 X VERTICAL WALL maximum vent capacity). b) The minimum capacity (FAN MIN.) shall 8’ MIN. LISTED be determined by referring to the corre- sponding single appliance table (tables 1 LOWEST DISCHARGE & 2). In this case, for each appliance the OPENING entire vent connector and common vent MINIMUM...
  • Page 31 13. A Category I appliance must never be con- of the listed appliance categorized vent nected to a chimney servicing a solid fuel area, draft hood outlet area or flue collar appliance. If fireplace chimney flue is used area unless designed according to ap- to vent this appliance, the fireplace open- proved engineering methods.
  • Page 32 22. Listed, corrugated metallic chimney liner 27. Numbers followed by an asterisk(*) in Table systems in masonry chimneys shall be 5 & 6, indicate the possibility of continuous sized by using tables 3 or 4 for common condensation, depending upon locality. venting with the maximum capacity re- Consult appliance manufacturer, local serv- duced by 20% (0.80 X maximum capacity)
  • Page 33 EXAMPLES USING SINGLE APPLIANCE VENTING TABLE Single Fan Assisted Appliance Suppose an installer has an 80,000 Btu / hr. input fan assisted appliance that must be installed using 10 ft. of lateral connector attached to a 30 ft. high Type B vent. Two 90° elbows are needed for the installation.
  • Page 34 Common vent diameter - The total input to the common vent is 135,000 Btu / hr. Using Ta- ble 4, common vent capacity, read down the total vent height “H” column to 30ft and across this row to find the smallest vent diameter in the Fan + Nat column that has a Btu / hr rating equal to or greater than 135,000 Btu / hr.
  • Page 35 TYPICAL VENTING APPLICATIONS IO137...
  • Page 36 Masonry Chimney Liner Dimensions TABLE 9 With Circular Equivalents Nominal Liner Inside Dimensions In Inside Diameter or Equivalent Equivalent Area Size - Inches Liner - Inches Diameter - Inches Square Inches 4 x 8 2 1/2 x 6 1/2 12.2 19.6 28.3 38.3...
  • Page 37 IO137...

  • Page 38: Vent Tables

    VENT TABLES Capacity of Type B Double-Wall Vents with Type B Double-Wall Connectors Serving a Single Category I Appliance TABLE 1 Vent and Connector Diameter - D (inches) 3” 4” 5” 6” 7” 8” Height Lateral Appliance Input Rating in Thousands of Btu Per Hour (ft) (ft) Min Max Max Min Max Max Min Max Max Min Max Max Min Max Max Min Max Max...
  • Page 39 VENT TABLES Capacity of Type B Double-Wall Vents with Single-Wall Metal Connectors Serving a Single Category I Appliance TABLE 2 Vent and Connector Diameter - D (inches) 3” 4” 5” 6’ 7” 8” 9” 10” Height Lateral Appliance Input Rating in Thousands of Btu Per Hour Min Max Max Min Max Max Min Max Max Min Max Max Min Max Max Min Max Max Min Max Max Min Max Max (ft) (ft) 1118...
  • Page 40 VENT TABLES Capacity of Type B Double-Wall Vents with Type B Double-Wall Connectors Serving Two or more Category I Appliances TABLE 3 Vent Connector Capacity Vent Connector Diameter - D (inches) 3” 4” 5” 6” 7” 8” 9” Vent Connector Appliance Input Rating Limits in Thousands of Btu Per Hour Height Rise...
  • Page 41 VENT TABLES Capacity of Type B Double-Wall Vent with Single-Wall Connectors Serving Two or more Category I Appliances TABLE 4 Vent Connector Capacity Vent Connector Diameter - D (inches) 3” 4” 5” 6” 7” 8” 9” Vent Connector Appliance Input Rating Limits in Thousands of Btu Per Hour Height Rise (ft)
  • Page 42 VENT TABLES Capacity of Masonry Chimney with Type B Double-Wall Vent Connectors Serving a Single Category I Appliance TABLE 5 Connector Diameter - D (inches) To be used with chimney areas within the size limits at bottom 3” 4” 5” 6”...
  • Page 43 VENT TABLES Capacity of Masonry Chimney with Single-Wall Vent Connectors TABLE 6 Serving a Single Category I Appliance Connector Diameter - D (inches) To be used with chimney areas within the size limits at bottom 3” 4” 5” 6” 7” 8”...
  • Page 44 VENT TABLES Capacity of Masonry Chimney with Type B Double-Wall Connectors Serving Two or More Category I Appliance TABLE 7 Vent Connector Capacity Vent Connector Diameter - D (inches) 3” 4” 5” 6” 7” 8” 9” Vent Connector Appliance Input Rating Limits in Thousands of Btu Per Hour Height Rise (ft)
  • Page 45 VENT TABLES Capacity of Masonry Chimney with Type B Double-Wall Connectors Serving Two or More Category I Appliances TABLE 8 Vent Connector Capacity Type B Double-Wall Vent Connector Diameter - D (inches) 3” 4” 5” 6” 7” 8” Vent Connector Appliance Input Rating Limits in Thousands of Btu Per Hour Height Rise...
