Operator's
Manual
U.S. Patent No. 6,105,192; No. 6,557,207; No. 6,760,947; No. 5,383,251
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read this book
prior to operating or attempting any service or maintenance procedure to your ALTO machine could result
in injury to you or to other personnel; damage to the machine or to other property could occur as well. You
must have training in the operation of this machine before using it. If your operator(s) cannot read this
manual, have it explained fully before attempting to operate this machine.
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books write to: ALTO, 2100 Highway 265, Springdale, Arkansas 72764.
Form No. 71268A 10/06
CLARKE TECHNOLOGY
SCRUBTEC
BOOST 70
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Clarke Scrubtec Boost 70
Summary of Contents for Clarke Scrubtec Boost 70
- Page 1 All directions given in this book are as seen from the operator’s position at the rear of the machine. For new books write to: ALTO, 2100 Highway 265, Springdale, Arkansas 72764. Form No. 71268A 10/06 CLARKE TECHNOLOGY Printed in the U.S.A.
-
Page 2: Table Of Contents
Parts List ............................45 Brake Assembly Drawing and Parts List ......................46 Vacuum Motor Drawing and Parts List ......................47 Transaxle Repair Parts ............................ 48 Connection Diagram ............................49 Electrical Schematic ............................50 CLARKE TECHNOLOGY Operator's Manual SCRUTBTEC BOOST 70... -
Page 3: Operator Safety Instructions
Failure to read the Owner's Manual prior to operating or attempting any service or maintenance procedure to your Clarke Technology machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. - Page 4 Do not use this machine as a step or furniture. Do not ride on this machine. CAUTION: Your machine warranty will be voided if anything other than genuine Clarke Technology parts are used on your machine. Always use Clarke Technology parts for replacement.
-
Page 5: Introduction & Machine Specifications

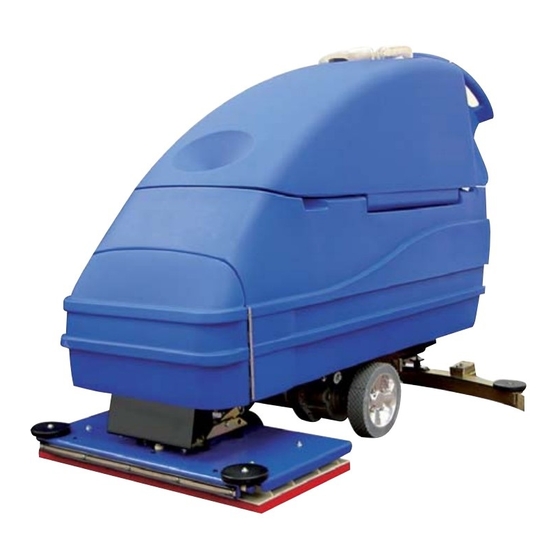

Introduction & Machine Specifications Clarke Technology’s newly designed Scrubtec Boost 70 automatic scrubber is efficient and superior floor cleaning machines. It uses an orbital movement to scrub a path 28 inches wide. A squeegee wipes the floor while the vacuum motor removes the dirty solution from the floor - all in one pass. -
