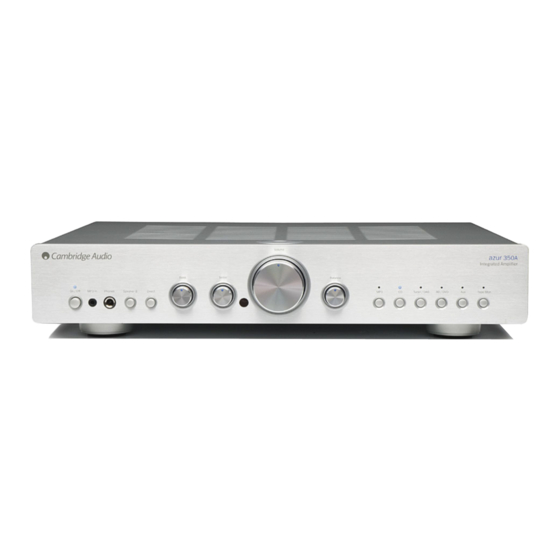

- Page 1 Integrated amplifier User’s manual azur 350A Your music + our passion...
-
Page 2: Table Of Contents
Contents Introduction Introduction ....................2 Thank you for purchasing your Azur 350A. We are confident that you will enjoy many years of listening pleasure from it. Like all Cambridge Audio Important safety instructions ..............3 products, the Azur 350A adheres to three core principles – stunning performance, ease of use and incredible value. -
Page 3: Important Safety Instructions
(2009/125/EC) Directives when used and installed according to this the apparatus. instruction manual. For continued compliance only Cambridge Audio 11. Only use attachments/accessories specified by the manufacturer. accessories should be used with this product and servicing must be referred to qualified service personnel. -
Page 4: Limited Warranty
Positioning can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. You will need to ship this product in either Choose the installation location carefully. Avoid placing it in direct sunlight its original packaging or packaging affording an equal degree of or close to a source of heat. -
Page 5: Rear Panel Connections
350A Rear panel connections Mains Voltage Selector Switch: 115V/220-230V Designed and engineered in London, England AC~50/60Hz azur 350A Integrated Amplifier Power AC Rated Power Consumption: 230W www.cambridge-audio.com Left Right Right Left Right Left Tuner / DAB BD / DVD... -
Page 6: Front Panel Controls
Front panel controls Volume azur 350A Integrated Amplifier Bass Treble Balance On / Off MP3 In Phones Speaker B Direct Tuner / DAB BD / DVD Tape Mon Power On/Off Infrared sensor Switches the unit on or off. Receives IR commands from the supplied Azur remote control. A clear, unobstructed line of sight between the remote control and the sensor is required. -
Page 7: Remote Control
The Azur 350AC Navigator remote control can control the basic functions of Apple iPods when mounted in Cambridge Audio iPod dock or Apple’s Universal Dock. The six source select buttons are used to directly select Refer to your dock’s instruction manual on how to the input source to the amplifier. -
Page 8: Connections
Connections Loudspeakers Check the impedance of your speakers. When using a pair of speakers, you can use types with an impedance of between 4 and 8 Ohms. The red coloured speaker terminals are positive (+) and the black speaker terminals are negative (-). Make sure correct polarity is maintained at each speaker connector or the sound can become weak and “phasey”... - Page 9 azur 350A Speaker B connections The Speaker B connections on the back of the amplifier allow for a second set of speakers to be used (ie speakers located in another room). The Speaker B button on the front panel allows this second set of speakers to be switched on and off.
-
Page 10: Technical Specifications
Technical specifications Troubleshooting Power output 45 watts (into 8Ω) There is no power Ensure the AC power cord is connected securely. THD (unweighted) <0.02% @ 1kHz, 80% of rated power <0.15% 20Hz - 20kHz, 80% of rated power Ensure the plug is fully inserted into the wall socket and is switched on. Frequency response (-1dB) 5Hz - 50kHz Check the unit is switched on at the rear panel. - Page 11 azur 350A...
- Page 12 Cambridge Audio is a brand of Audio Partnership Plc Registered Office: Gallery Court, Hankey Place, London, SE1 4BB, United Kingdom Registered in England No. 2953313 www.cambridge-audio.com © 2010 Cambridge Audio Ltd...
