Summary of Contents for Cambridge Audio AZUR 350A

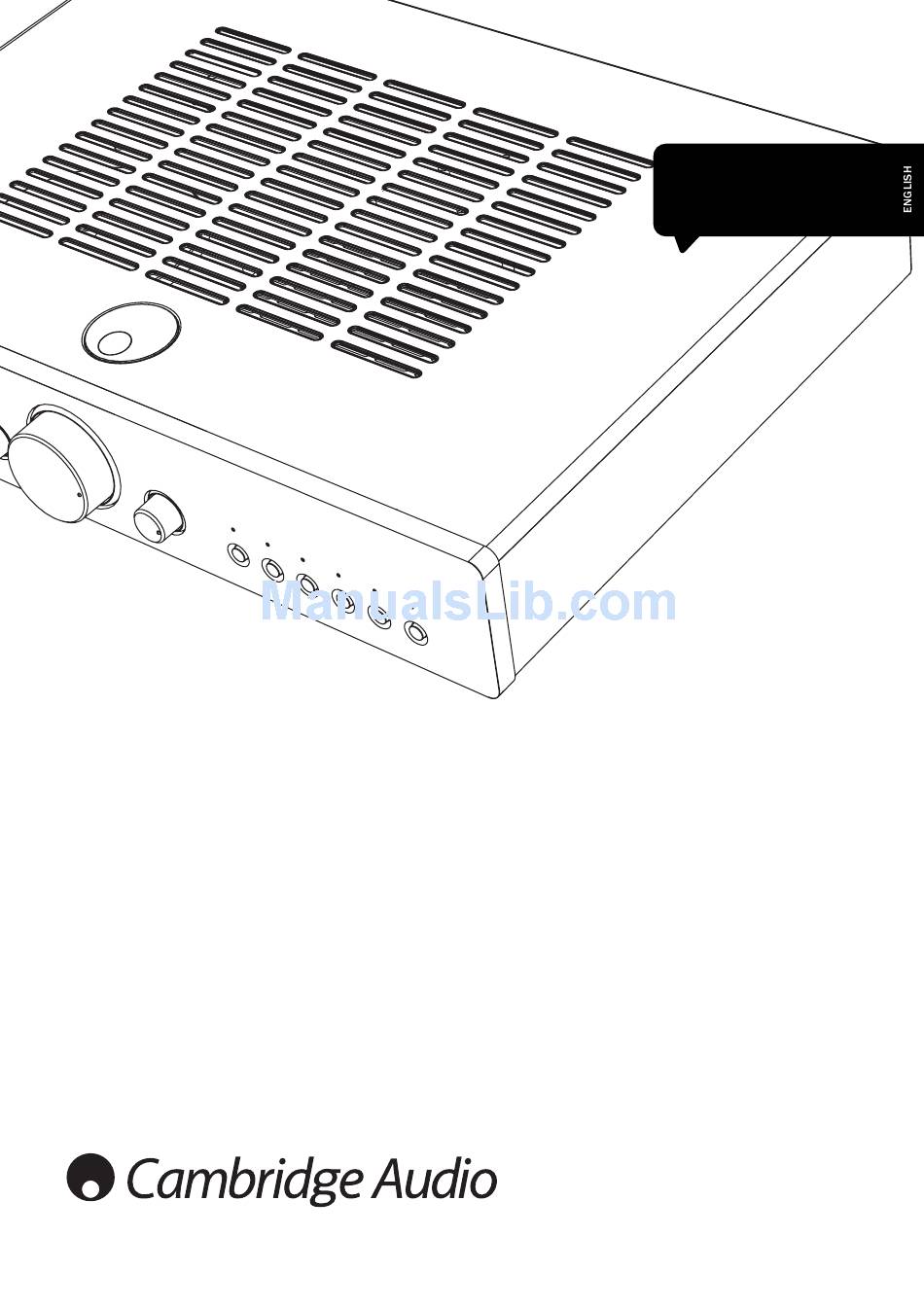

- Page 1 Integrated amplifier User’s manual azur 350A Your music + our passion...
-
Page 2: Table Of Contents
Contents Introduction Introduction ....................2 Thank you for purchasing your Azur 350A. We are confident that you will enjoy many years of listening pleasure from it. Like all Cambridge Audio Important safety instructions ..............3 products, the Azur 350A adheres to three core principles – stunning performance, ease of use and incredible value. -
Page 3: Important Safety Instructions
(2009/125/EC) Directives when used and installed according to this the apparatus. instruction manual. For continued compliance only Cambridge Audio 11. Only use attachments/accessories specified by the manufacturer. accessories should be used with this product and servicing must be referred to qualified service personnel. -
Page 4: Limited Warranty
Positioning can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. You will need to ship this product in either Choose the installation location carefully. Avoid placing it in direct sunlight its original packaging or packaging affording an equal degree of or close to a source of heat. -
Page 5: Rear Panel Connections
350A Rear panel connections Right Left Right Left Mains Voltage Selector Switch: 115V/220-230V Designed and engineered in London, England AC~50/60Hz azur 350A Integrated Amplifier Tuner Tape Power AC Rated Power Consumption: 230W www.cambridge-audio.com Left Left Right Right Right Left... -
Page 6: Front Panel Controls
Front panel controls Volume azur 350A Integrated Amplifier Bass Treble Balance On / Off MP3 In Phones Speaker B Direct Tuner / DAB BD / DVD Tape Mon Power On/Off Infrared sensor Switches the unit on or off. Receives IR commands from the supplied Azur remote control. A clear, unobstructed line of sight between the remote control and the sensor is required. -
Page 7: Remote Control
Remote control The 350A is supplied with an Azur Navigator remote Bright control that operates both this amplifier and Cambridge Alters the brightness of the display backlight. There are Audio Azur range CD players. Insert the supplied AAA three levels of brightness: Bright, Dim and Off. -
Page 8: Connections
Connections Loudspeakers Check the impedance of your speakers. When using a pair of speakers, you can use types with an impedance of between 4 and 8 Ohms. The red coloured speaker terminals are positive (+) and the black speaker terminals are negative (-). Make sure correct polarity is maintained at each speaker connector or the sound can become weak and “phasey”... - Page 9 azur 350A Speaker B connections The Speaker B connections on the back of the amplifier allow for a second set of speakers to be used (ie speakers located in another room). The Speaker B button on the front panel allows this second set of speakers to be switched on and off.
-
Page 10: Technical Specifications
Ensure that nothing is blocking the remote sensor. In the event that the above solutions do not remedy your problem, please consult our frequently asked questions (FAQ) section on our website: www.cambridge-audio.com/sts/faqs For all servicing, in or out of warranty, please contact your dealer. - Page 11 azur 350A...
- Page 12 Cambridge Audio is a brand of Audio Partnership Plc Registered Office: Gallery Court, Hankey Place, London, SE1 4BB, United Kingdom Registered in England No. 2953313 www.cambridge-audio.com © 2010 Cambridge Audio Ltd...
