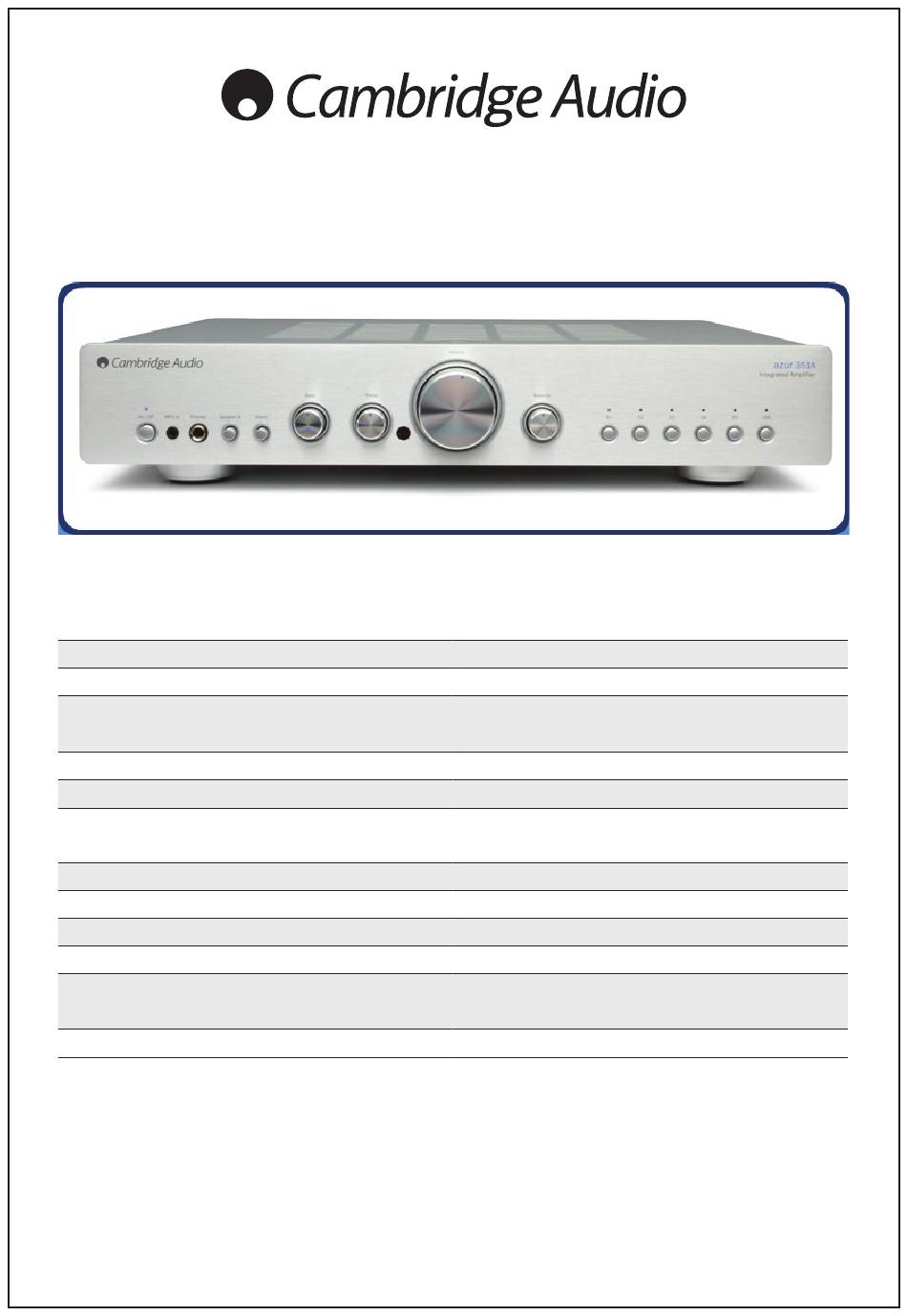

351A
Specifications
Power Output:
Weight:
THD (unweighted):
Inputs:
Outputs:
USB
Frequency Response:
S/N ratio (ref 1w):
Input Impedance:
Max. Power Consumption:
Bass/Treble controls:
Dimensions (H x W x D):
Service Manual
45 watts (into 8 ohms)
6kg (13.2lbs)
<0.02% @ 1kHz, 80% of rated power
<0.15% 20Hz - 20kHz, 80% of rated power
5 x RCA, 1 x USB (type B), 1 x 3.5mm MP3 input
Speakers A & B, 1 x Rec Out, ¼'' headphone out,
USB audio 1.0
16-bit 32kHz, 44.1kHz, 48kHz
5Hz – 50kHz
>92dB (unweighted)
47k ohms
320W
Shelving, ultimate boost/cut
+/-10dB @ 20Hz and +/-6dB @ 20kHz
86 x 430 x 340mm (3.4 x 16.9 x 13.4'')
Issue date: July 2012
