Page 1: Installation Guide

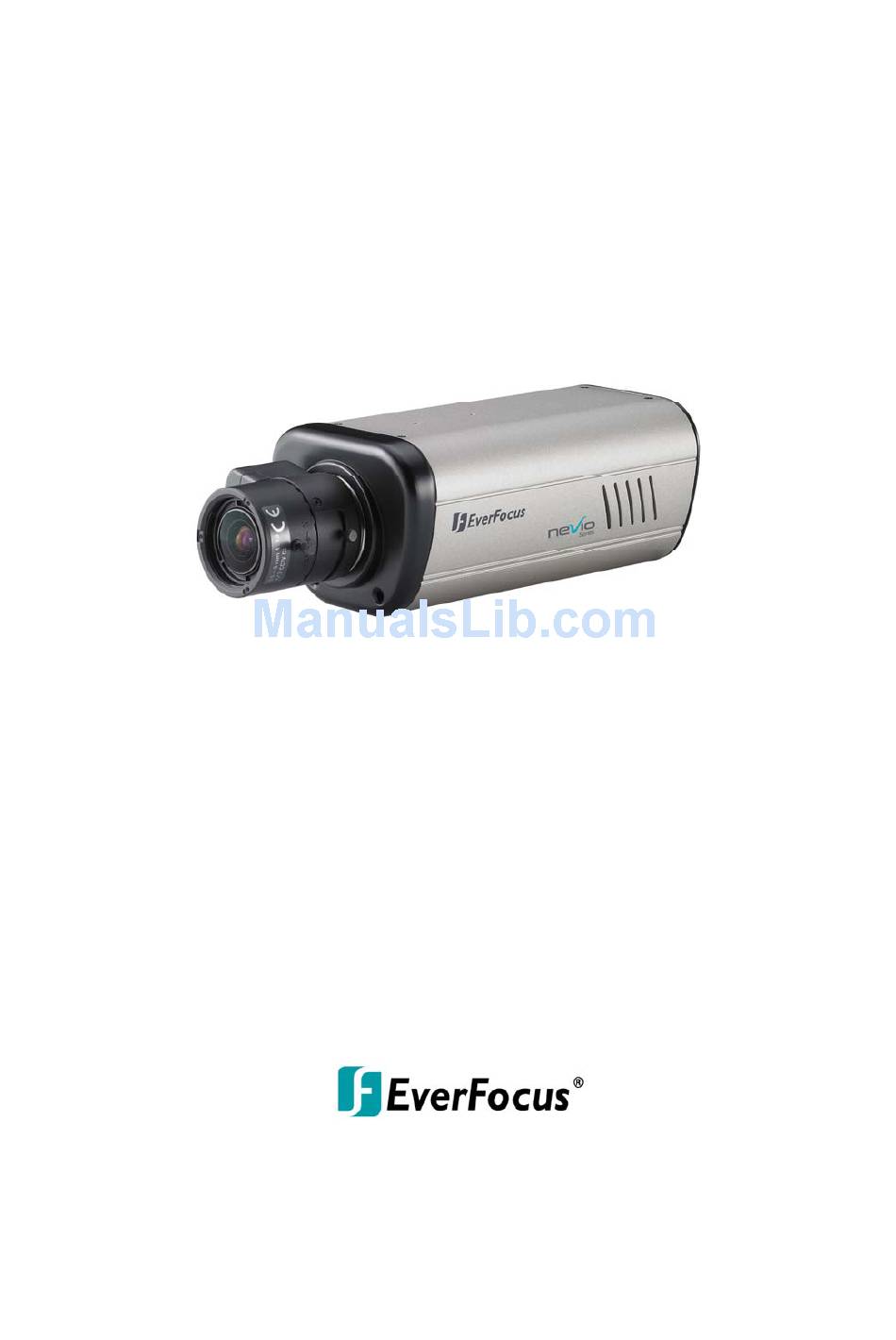

EAN900 Installation Guide Copyright © EverFocus Electronics Corp, Release: Jun. 2009 Ver. A... -
Page 2: Installation Steps
EAN900 This installation guide provides instructions for installing the EAN900 IP Camera. For all other aspects of using this product, please refer to EAN900 User’s Manual, which is available on the CD included in this package. Installation steps 1. Confirm that all of the accessories have been supplied with the network camera from the list below. -
Page 3: Minimum Computer Requirements
EAN900 - Power adaptor (x1) - Printed Installation Guide (x1) - Software APs including user’s manual CD (x1) Minimum Computer Requirements -CPU: PC Pentium IV (2.0 GHz or higher) / AMD Athlon (or higher) -VGA card: 32 MB min. 16.7 million colours, with DirectX9.0c support -Memory: 512 MB RAM min., 1 GB HD space or above... -
Page 4: Setting Up The Hardware Connection
EAN900 1. Setting Up the Hardware Connection 1. Mount a lens to the camera. (Megapixel lens recommended for high image quality.) 2. Connect the EAN900 Network Camera to a PC with a Cat.5 cable. ○, ○, ○, ○, ○, ○, ○... - Page 5 This connector is used to connect with the auto iris lens by a 4 pin male connector Pin 1 Pin 2 Pin 3 Pin 4 Direct Drive Cnt- Cnt+ Drv+ Drv- 3. Power on the EAN900 via plug in the Adapter or via PoE (Power over Ethernet).
- Page 6 EAN900 1.1 Terminal Connector Schematic Diagram Terminal connector schematic diagram...
-
Page 7: Network Connection
EAN900 2. Network Connection This section tells you how to do different types of network connections to IP cameras. a. Router or LAN connection This is the most common connection that allows multiples PC to see IP cameras/ video servers in pre-existing LAN through a router. - Page 8 EAN900 c. One to one connection from PC to IP camera You can connect directly without switch. However, only the PC connecting to camera can view the IP camera. ...
-
Page 9: Assign Ip Address
ISP or network administrators for more detail of network setting reference. IP utility (in supplied CD) is a recommended tool to assign IP address. The default network setting is DHCP. Once login to EAN900, you can change TCP/IP setting for your own environment. - Page 10 EAN900 3. The IP address of EAN900 will be automatically detected and shown in the window. Tick the selected EAN900. 4. If you want to manually change the IP setting, YOU MUST CLICK “LOGIN”. You will be asked to enter “User ID” and “Password”. This is a security measure of configuration setting, in order to modify those network configurations of EAN900.
- Page 11 EAN900 5. To change configurations, double click on the value that you wish to make change and enter the desired new value. After the change is done, press “Set Configuration” to confirm setting. Note: Most router support DHCP. However, when you have difficulty of selecting IP...
- Page 12 7. You will be asked to enter User ID and Password first. Note: Default user name is “user1” and default password is “11111111”. 8. Now, you will be lead to the live view page of EAN900. 9. Exit: Close IP Utility window to finish your setting.
- Page 13 2-6 Nakase.Mihama-ku. www.everfocus.com Chiba city 261-7118, Japan TEL: 81-43-212-8188 FAX: 81-43-297-0081 www.everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
