INTRODUCTION
The remote control system can be operated thermostati-
cally or manually from the transmitter. The system operates
on radio frequencies (RF) within a 20 foot range. Can be
used with IPI or Standing Pilot systems.

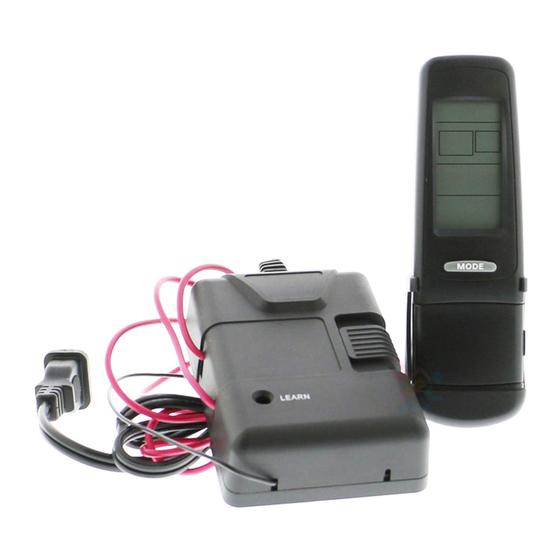

This remote control kit has a hand held transmitter that
can be used as a remote on/off or as a thermostat. The
transmitter display shows the current room temperature,
target temperature, timer setting, on/off status, low battery
indicator, current time and burner/valve operation.
If pertinent, see additional fi replace wiring diagrams on the
following pages.
INSTALLATION PRECAUTIONS
This remote control kit is tested and safe when installed in
accordance with this installation manual. Installation of this
kit MUST be done by a qualifi ed service technician. It is the
responsibility of the installer to read all instructions before
starting installation and to follow these instructions care-
fully during installation. Modifi cation of the remote control
system or any of its components will void the warranty and
may cause a fi re hazard.
CAUTION: All wiring should be done by a qualifi ed electri-
cian and shall be in compliance with local codes and with
the National Electric Code ANSI/NFPA No. 70-current (in
the United States), or with the current CSA C22.1 Canadian
Electric Code (in Canada), or in compliance with CE.
WARNING: DO NOT CONNECT 110-230 VAC WIR-
ING TO THE GAS CONTROL VALVE OF THIS AP-
PLIANCE.
Radio Frequency Remote: 433.92 MHZ
CE REQUIREMENTS
NOTE: This equipment has been tested and found to
comply with CE.
Hearth & Home Technologies • SMART-BATT-II Remote Control Instructions • 100-909 Rev. i • 5/12
SMART-BATT-II Remote Control Kits
- Installation and Operating Instructions -

FCC REQUIREMENTS

WARNING: CHANGES OR MODIFICATIONS TO
THIS UNIT NOT EXPRESSLY APPROVED BY THE
PARTY RESPONSIBLE FOR COMPLIANCE COULD
VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
NOTE: This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to pro-
vide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio TV technician
for help.
Canadian Equipment Requirements
This digital apparatus does not exceed the (Class A/Class
B)* limits for radio noise emissions from digital apparatus
set out in the Radio Interference Regulations of the Cana-
dian Department of Communications. Le présent appareil
numérique n'émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques (de la
class A/de la class B)* prescrites dans le Règlement sur
le brouillage radioélectrique edicte par le ministère des
Communications du Canada.
This device complies with RSS-210 of Industry and Science
Canada. Operation is subject to the following two condi-
tions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
