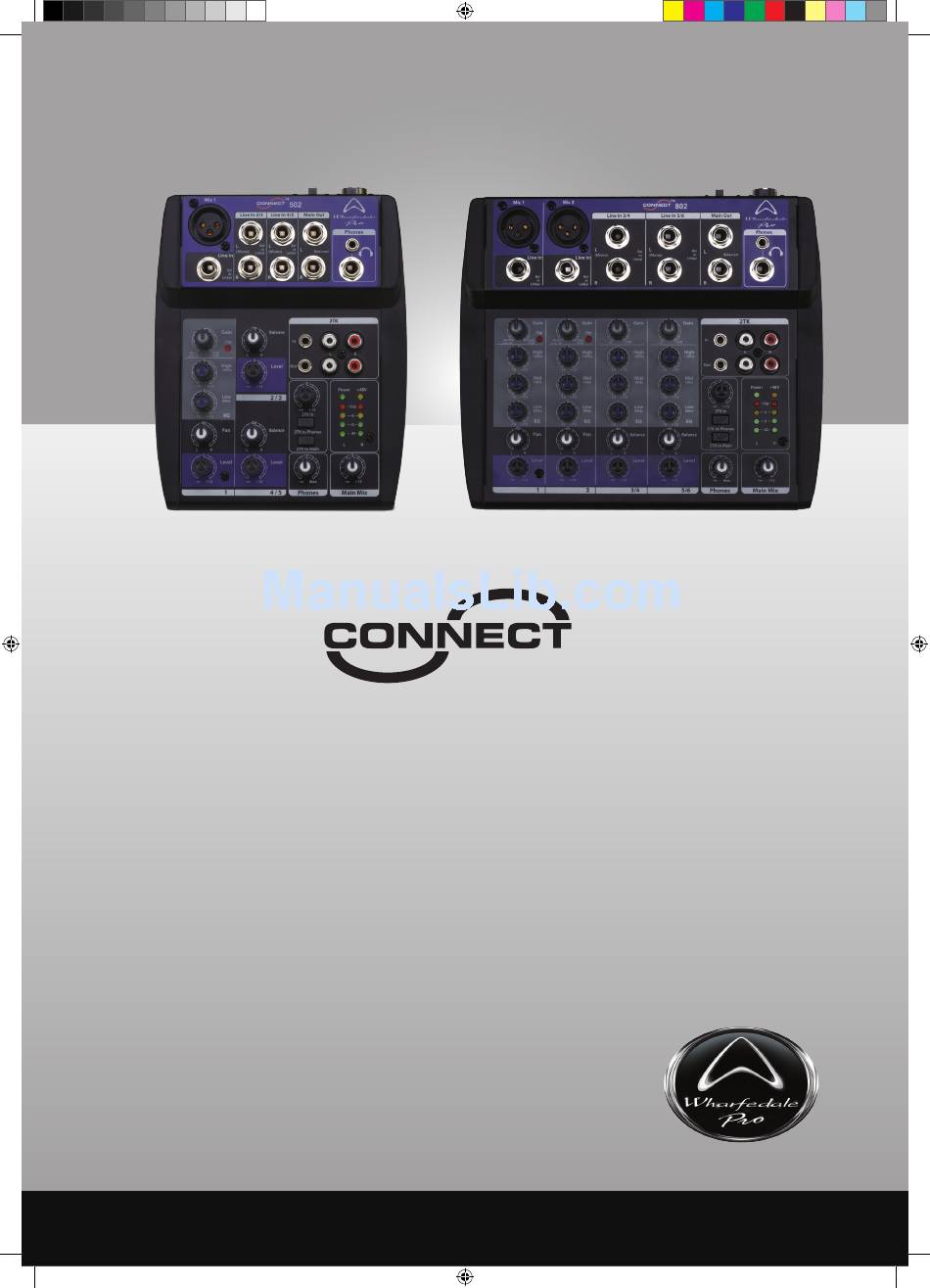

- Page 1 Series OPERATING MANUAL AND USER GUIDE www.wharfedalepro.com connect series user manual.indd 2011-6-16 9:38:46...
-
Page 2: Table Of Contents
OPERATING MANUAL AND USER GUIDE TABLE OF CONTENTS Important Warnings & Safety Information ................2 Introduction ........................4 About The Connect Series ....................4 Common Features ......................4 Connect 502 Features ...................... 5 Connect 802 Features .......................5 Mono Channel Walkthough ....................6 Stereo Channel Walkthough ....................6 Master Section Walkthough ....................7... -
Page 3: Important Warnings & Safety Information
The apparatus should not be exposed to dripping or splashing and objects filled with liquids, such as vases, should not be placed on the apparatus. 18. WARNING: The mains plug/appliance coupler is used as a disconnect device, the disconnect device shall remain readily operable. connect series user manual.indd 2011-6-16 9:38:46... - Page 4 To return your used device, please use local return and collection systems or contact the retailer where the product was purchased. They can take this product for safe environmentally friendly recycling. connect series user manual.indd 2011-6-16 9:38:46...
-
Page 5: Introduction
Connect Series mixer. ABOUT THE CONNECT SERIES The Connect Series from Wharfedale Pro are high quality compact mixers that are suitable for a wide range of applications. Professional big mixer features such as Phantom powered, balanced XLR microphone inputs give you full functionality and great sound in an ultra compact and cost effective package that is ideal for live sound, home studio recording and fixed installations. -
Page 6: Connect 502 Features
• 2 Mono Mic/Line Channels and 2 Stereo Channels • Input Gain Controls On All Channels • 3 Band EQ On All Channels • 2 Track Stereo Inputs And Outputs With ⅛” And RCA Jacks • 2 Track Destination Switches connect series user manual.indd 2011-6-16 9:38:46... -
Page 7: Mono Channel Walkthough
Mid EQ centred at 1KHz (Connect 802 only) Low EQ centred at 80Hz (Connect 802 only) Used to spatially place the channel within the stereo field Sets the amount of signal sent to the main output bus connect series user manual.indd 2011-6-16 9:38:48... -
Page 8: Master Section Walkthough
12. Controls the master level of the main mix bus REAR PANEL WALKTHOUGH AC Supply input, use only the supplied Wharfedale Pro authorised power supply Turns the Connect Mixer on or off Switches the global +48V phantom power on or off connect series user manual.indd 2011-6-16 9:38:52... -
Page 9: Wiring Diagrams
INPUTS TO CROSSOVER AMPLIFIER(S) FROM CROSSOVER SEPARATE HIGH/MID SPEAKER OUTPUT TO HIGH/MID SPEAKER FROM AMPLIFIER INPUTS TO AMPLIFIER(S) SEPARATE SPEAKER OUTPUT TO FREQUENCY SPEAKER FROM AMPLIFIER = SIGNAL (SHIELDED) CABLE = LOUDSPEAKER (NON-SHIELDED) CABLE connect series user manual.indd 2011-6-16 9:38:59... -
Page 10: Dimensional Drawings
OPERATING MANUAL AND USER GUIDE CONNECT 802 DIMENSIONAL DRAWING connect series user manual.indd 2011-6-16 9:39:01... - Page 11 CONNECT 502/802 CONNECT 502 DIMENSIONAL DRAWING connect series user manual.indd 2011-6-16 9:39:02...
-
Page 12: Block Diagram
OPERATING MANUAL AND USER GUIDE CONNECT 502 BLOCK DIAGRAM connect series user manual.indd 2011-6-16 9:39:03... - Page 13 CONNECT 502/802 CONNECT 802 BLOCK DIAGRAM connect series user manual.indd 2011-6-16 9:39:03...
-
Page 14: Specifications
AC POWER 100~120V; 220~240V, 50/60Hz Product Dimensions (H x W x D) 50.9mm x143mm x183.8mm Carton Dimensions (H x W x D) 253mm x 77mm x 226 mm Weight 1.64kg / 0.66kg (3.62lbs / 1.46lbs) connect series user manual.indd 2011-6-16 9:39:03... -
Page 15: Warranty
1.93kg / 0.95kg (4.14lbs / 2.03lbs) WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro Connect Series products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. - Page 16 IAG HOUSE, Sovereign Court, Ermine Business Park Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2011 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
