CHAPTER 1
INTRODUCTION
Chapter 1
INTRODUCTION
The MS-6309 ATX VA5 mainboard is a high-performance computer
®
mainboard based on VIA
VT82C694X chipset. The MS-6309 is designed
®
TM
for the Intel
Celeron
or Coppermine(FC-PGA) processor for inexpensive
business/personal desktop markets.
The Apollo Pro133A (VT82C694X) is a Socket-370 system logic north bridge
with the addition of 133 MHz capability for both the CPU and SDRAM
interfaces. Apollo Pro133A may be used to implement both desktop and
notebook personal computer systems from 66MHz to 133MHz based on
Socket-370 (Intel Celeron processors). The primary features of the Apollo
Pro133A-North Bridge are: Slot-1 or Socket-370 CPU (Front Side Bus)
Interface (66 / 100 / 133MHz), DRAM Memory Interface (66 / 100 / 133MHz),
AGP Bus Interface (66MHz), PCI Bus Interface (33MHz), Mobile Power
Management.
The VT82C686A PSIPC (PCI Super-I/O Integrated Peripheral Controller) is a
high integration, high performance, power-efficient, and high compatibility
device that supports Intel and non-Intel based processor to PCI bus bridge
functionality to make a complete Microsoft PC99-compliant PCI/ISA system.
1-1

Advertisement

Table of Contents
loading

Summary of Contents for MSI MS-6309 ATX VA5

  • Page 1: Chapter 1 Introduction

    CHAPTER 1 INTRODUCTION Chapter 1 INTRODUCTION The MS-6309 ATX VA5 mainboard is a high-performance computer ® mainboard based on VIA VT82C694X chipset. The MS-6309 is designed ® for the Intel Celeron or Coppermine(FC-PGA) processor for inexpensive business/personal desktop markets. The Apollo Pro133A (VT82C694X) is a Socket-370 system logic north bridge with the addition of 133 MHz capability for both the CPU and SDRAM interfaces.
  • Page 2: Mainboard Features

    CHAPTER 1 INTRODUCTION 1.1 Mainboard Features l Socket 370 for Intel ® Celeron / Coppermine processor. l Supports 233MHz, 266MHz, 300MHz, 333MHz, 350MHz, 400MHz, 450MHz, 500MHZ, 533MHz...667MHz or faster processor. Chipset l VIA ® 694X chipset. (510 BGA) - P-II FSB @133MHz - AGP 4x and PCI plus Advanced ECC Memory Controller - Support PC100/133 SDRAM, VCM technology l VIA...
  • Page 3 CHAPTER 1 INTRODUCTION On-Board IDE l An IDE controller on the VIA ® VT82C686A Chipset provides IDE HDD/ CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes. l Can connect up to four IDE devices. On-Board Peripherals l On-Board Peripherals include: - 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
  • Page 4: Mainboard Layout

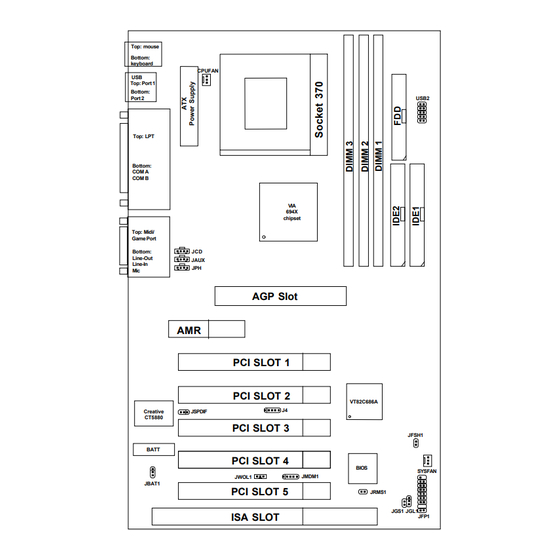

    JAUX Line-In AGP Slot PCI SLOT 1 PCI SLOT 2 VT82C686A Creative JSPDIF CT5880 PCI SLOT 3 JFSH1 BATT PCI SLOT 4 BIOS SYSFAN JMDM1 JWOL1 JBAT1 PCI SLOT 5 JRMS1 JGS1 JGL1 ISA SLOT JFP1 MS-6309 ATX VA5 Mainboard...
