I
i
.......
__2

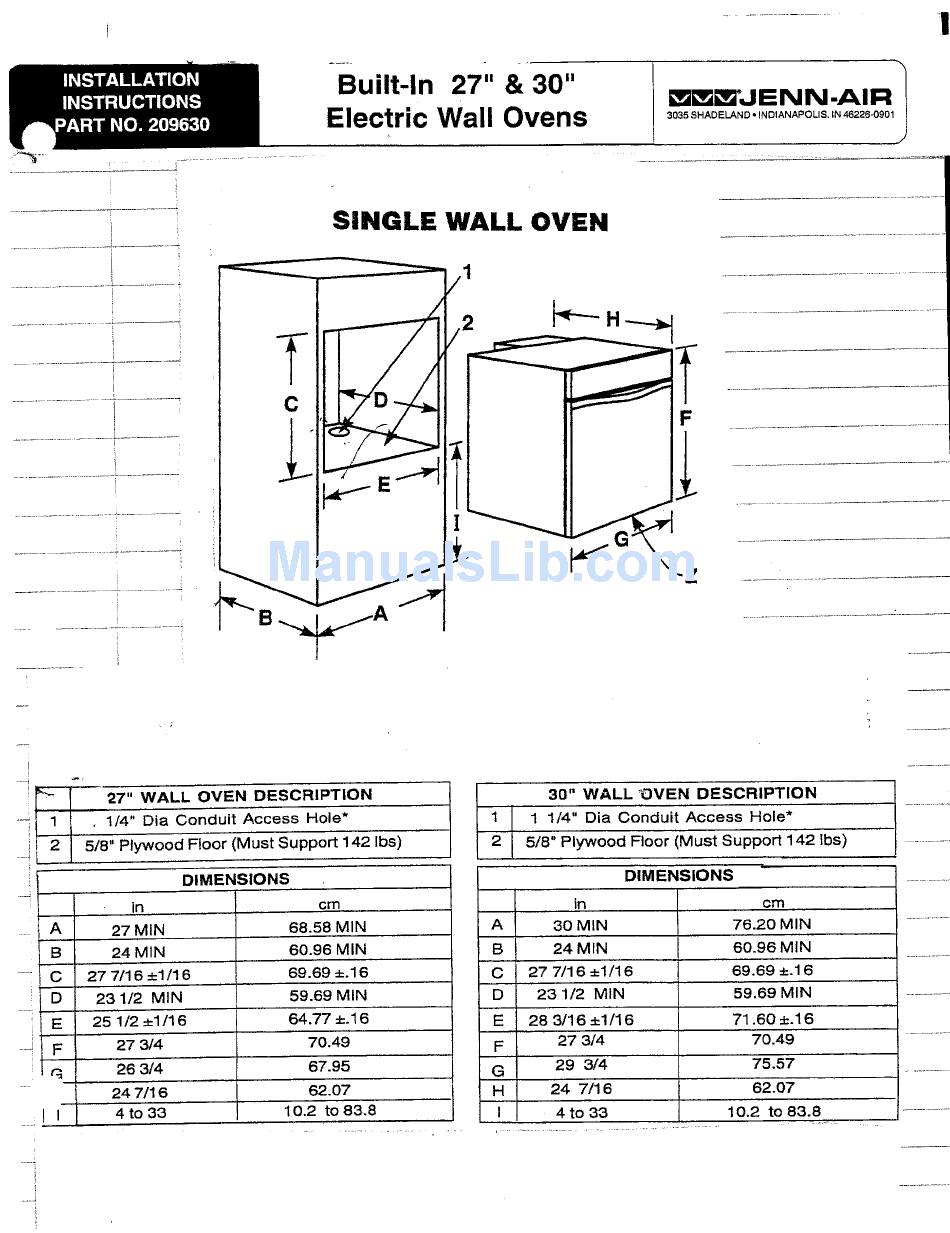

27" WALL OVEN
DESCRIPTION
12
30" WALL OVEN
DESCRIPTION
..........
+
, 1/4" Dim Conduit Access
Hole*
1 1/4" Dia Conduit Access
Hole*
5/8" Plywood Floor (Must Support 142 lbs)
5/8" Plywood Fioor (Must Support 142 lbs)
...........
DIMENSIONS
DIMENSIONS
in
cm
in
cm
A
27 MIN
68.58 MIN
A
30 MIN
76.20 MIN
..............
B
24 MIN
60.96 MIN
B
24 MIN
60.96 MIN
O
277/16±1/16
69.69 ±.16
C
277/16±1/16
69.69 ±.16
D
23 1/2 MIN
59.69 MIN
D
23 1/2 MIN
59.69 MIN
..............
E
251/2±1/16
64.77 ±,16
E
283/16±1/16
71.60 ±.16
F
27 3/4
70.49
F
27 3/4
70.49
.........
G
26 3/4
67.95
G
29 3/4
75,57
........
24 7/16
62.07
H
24 7/16
62.07
I
I
4to33
10.2 to83,8
I
4to33
10.2 to83.8
.........
i
!
................
...... !
