Onkyo DR-635 Instruction Manual

Onkyo dr-635 dvd receiver instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Contents
DVD Receiver
DR-635
Instruction Manual
Thank you for purchasing the Onkyo DVD receiver.
Read this manual carefully before using your new
DVD receiver. A good understanding of its features
and operation will allow you to achieve optimum per-
formance and enjoyment.
Keep this manual for future reference.
E
n

Advertisement

Table of Contents
loading

Related Manuals for Onkyo DR-635

Summary of Contents for Onkyo DR-635

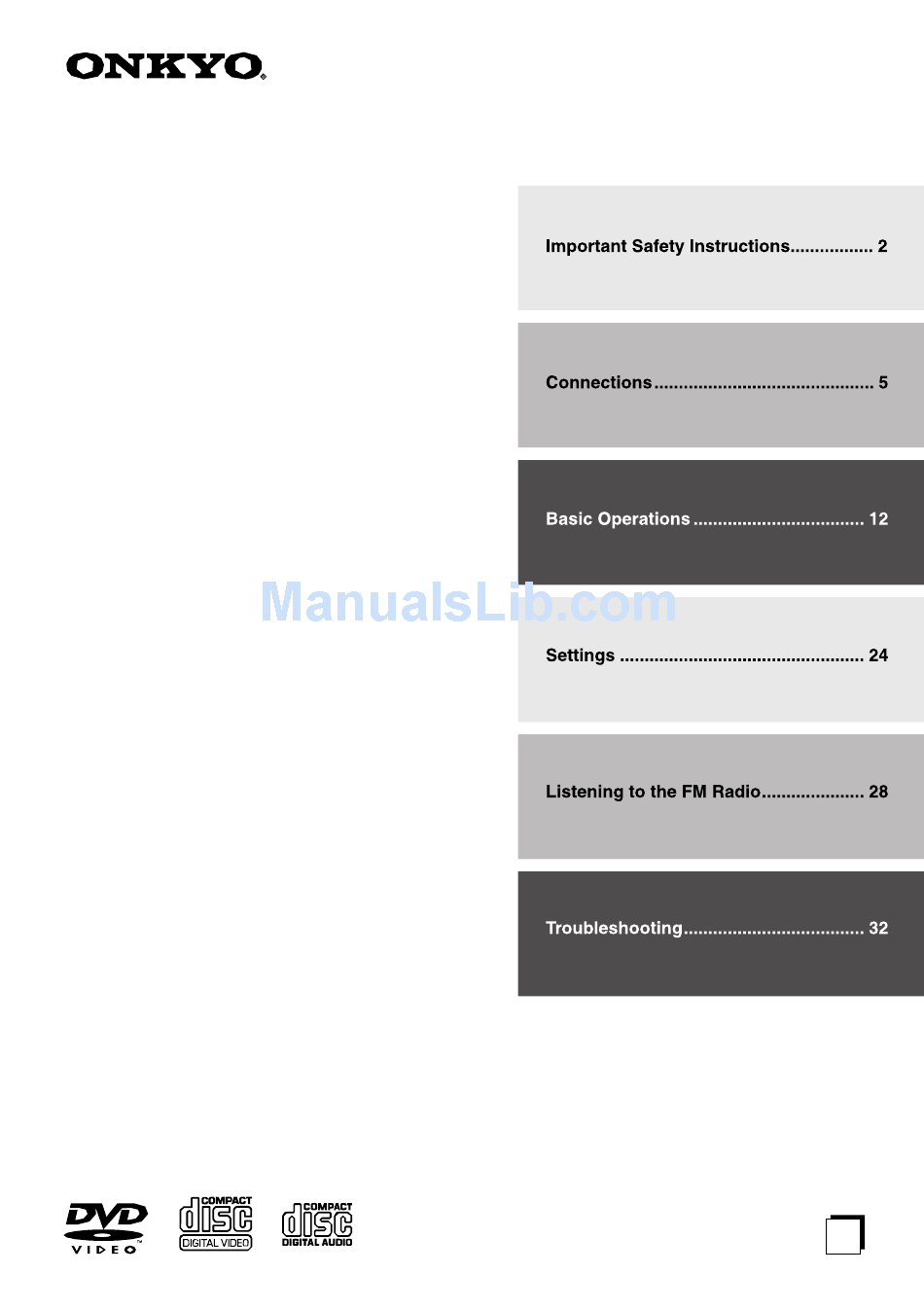

  • Page 1 Contents DVD Receiver DR-635 Instruction Manual Thank you for purchasing the Onkyo DVD receiver. Read this manual carefully before using your new DVD receiver. A good understanding of its features and operation will allow you to achieve optimum per- formance and enjoyment.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 11) Only use attachments/accessories specified by the WARNING manufacturer. RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK 12) Use only with the cart, stand, tripod, bracket, or table DO NO DO NO DO NO...
  • Page 3 Do not place this unit close to strong magnetic field. Do not place the unit on the amplifier or receiver. Don’t place this unit close to the damper, or the moisture will affect the life of the laser head. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player.

  • Page 4: Table Of Contents

    Contents IMPORTANT SAFETY INSTRUCTIONS ....2 Skipping Playback ..........17 SAFETY ................. 2 Searching for a part of a chapter or track ....17 WARNING ..............2 Selecting a Chapter or Track ......... 17 Contents ..............4 Selecting Audio ............. 18 FM Antenna .............

  • Page 5: Fm Antenna

    FM Antenna Speaker Connection Connect the supplied FM wire antenna to the FM An- tenna socket on the unit. If reception is poor, connect the outside antenna. Note: Before attaching a 75 ohm coaxial lead (the kind with a Caution: round wire going to an outside antenna), disconnect To avoid damaging the speakers with a sudden high- the supplied FM wire antenna.

  • Page 6: Connection To A Tv

    Connection to a TV HDMI video/audio output terminal Use a HDMI cable to connect the unit to a HDMI com- Caution: patible television or monitor. Switch off the power to all equipment before If the television or monitor is equipped only with a making connections.

  • Page 7: Connection To Audio Equipments Etc

    Connection to Audio Equipments etc. Remote Control Caution: The provided Remote Control allows the unit to be op- Switch off the power to all equipment before erated from a distance. making connections. When operating the Remote Control, point it towards Read the instructions of each component you the remote sensor on the front panel of the unit.

  • Page 8: Identifying The Parts

    Identifying the Parts In FM mode, use this button to select a preset channel. Main Unit In DVD or USB mode, use this button to stop playback. In FM mode, use this button to select Auto mode or Mono mode. In DVD or USB mode, use this button to start or pause playback.
  • Page 9 SUBTITLE Number buttons Use this button to select the displayed subtitles dur- Use these buttons to enter track numbers, ing DVD playback. passwords, etc. AUDIO SLEEP/TIMER Use this button to select the audio for playback. When the unit is on, use SLEEP button to set the sleep timer.

  • Page 10: Discs

    MPEG-1 digital audioM correctly in this player. If you use such discs in this unit, PEG-1 digital video Onkyo Corporation and its subsidiaries cannot be re- Video CDs are divided into tracks. sponsible for any consequences or guarantee the qual- ity of reproduction.

  • Page 11: Playable File Format

    Playable file format Never use a stabilizer. Using commercially available CD stabilizers with this unit will damage This unit can play following files recorded on a CD-R, the mechanisms and cause them to malfunction. CD-RW, DVD-R, DVD-RW or USB memory device: Do not use irregular shape discs (octagonal, heart shaped, business card size, etc.).

  • Page 12: Usb Memory Device Compatibility

    USB memory device compatibility Press the CLOCK button. Only USB flash memory can be used. Some flash memory players that charge from a USB terminal cannot be played back. Hard disk drives, CD/DVD drives, and others connected via USB cannot be used. The unit cannot copy, move, or delete files.

  • Page 13: Recording A Source

    When the recording device is connected to the Press the DVD, USB, FM, or LINE buttons to select LINE1IN jack and the LINE OUT jack, you cannnot a source. select the LINE1Source for the recording source. Dimmer The selected source is shown on the front panel’s display.

  • Page 14: Listening To A Disc

    Press the TONE button repeatedly to select Bass Press the button on the unit again to close the or Treble. tray. Some discs may automatically start playback. Press the button to start playback if playback has not started automatically. Press the VOL buttons to adjust the sound level. If a menu is shown on screen (some DVD or video discs may show such a menu), see “On-screen menu”.

  • Page 15: On-Screen Menu

    Select an item using the 10/0,1-9,10+ buttons to start playback. Press the button to advance to the next page. On-screen Menu Press the button to return to the previous page. If you press the TITLE button during playback, the menu will appear on the screen. An on-screen menu is shown when a DVD or video CD with playback control (PBC) content is loaded.

  • Page 16: Mp3 And Windows Media-Formatted Audio Files

    JPEG files Select an item using the 10/0,1-9,10+ buttons to start playback. Some discs or USB memory may automatically start playback. When in stop mode, choose a picture in the directory list by pressing the buttons. MP3 and Windows Media-formatted audio files After a short wait a thumbnail of the picture will ap- When a disc or USB is loaded, a list of directories ap-...

  • Page 17: Basic Operations For A Disc And Usb Memory Device

    Basic Operations for a Disc and Searching for a part of a chapter or track USB Memory Device To Search quickly the disc in the forward or reverse direction, press the buttons during Pausing playback (Freezing the picture) playback. Press the button when the part you want to Press the button to pause audio playback.

  • Page 18: Selecting Audio

    Selecting Audio Changing Camera Angle Many DVD discs include audio in different languages, as well as stereo and multi-channel surround versions of the sound track. CDs and video CDs allow the left, right or stereo channels to be selected. When a scene recorded with multiple angles is played, the angle icon appears on the screen.

  • Page 19: Slow Motion

    Slow Motion Repeat chapter/Repeat track/Repeat one The currently selected chapter/track/file will be For video discs only (DVD and VCD) played repeatedly. If another chapter/track/file is selected during repeat playback, the newly-selected chapter/track/file will repeat. Repeat title (DVD only) The currently selected title will be played repeatedly. Repeat all All the contents in the disc will be played repeatedly.

  • Page 20: Changing The Display Mode

    Changing the Display Mode T T T T T o select a track of the disc o select a track of the disc o select a track of the disc o select a track of the disc o select a track of the disc Press the SEARCH button 3 times.

  • Page 21: Chapter Search/Time Search (Dvd)

    For example, if the length of the current file is 3 During playback, press the SEARCH button. minutes, enter a number smaller than 3 minutes. Playback starts from the selected part. Chapter Search/Time Search (DVD) Chapter Search You can start playback from the beginning of the speci- “Select: - - -”...

  • Page 22: Programmed Playback (Dvd,Vcd,Cd)

    Programmed Playback (DVD,VCD,CD) When the selection of chapter/track numbers is completed, select “START” using the , , , Up to 20 chapters/tracks can be programmed in the buttons and press the Enter button to start desired order. programmed playback. If another source is selected, press the DVD button to select “DVD Source”.

  • Page 23: Programmed Playback (Divx®)

    ® and press the PROG button. Programmed Playback (DivX If another source is selected, press the DVD or USB button to select “DVD Source” or “USB Source”. The file is added to the programme list. Press the MENU button once to display the You can also select “DVD Source”...

  • Page 24: Settings

    Press the MENU button once to display the Turn on the unit, and the connected television or programme list. monitor. The SETUP menu is available only in the DVD Highlight the first file in the programme list using Source mode or the USB Source mode. If another buttons.

  • Page 25: General Setup

    Make this setting while playback is stopped; you can- Make this setting while playback is stopped; you can- Make this setting while playback is stopped; you can- Make this setting while playback is stopped; you can- Make this setting while playback is stopped; you can- Enter the menu item with the button.

  • Page 26: Audio Setup

    material, reducing the volume of loud sounds, and increasing the volume of quiet ones. This is useful The screen saver does not start up. for spoken word material, and nighttime listening etc. DivX ® ® Display the DivX registration code. Turns off the audio dynamic compression.

  • Page 27: Preference Setup

    Interlace Press the left button ( ) to return to the Video Setup For ordinary TV: turn on the interlace mode. Page. When your TV is not compatible with progressive HDMI Setup scan, never select “P-scan”. No picture will be shown Auto on the monitor.

  • Page 28: Password Setup

    Listening to the FM Radio Select the desired parental control level from the menu, then press Enter button. Select “FM Radio” using the FM button. You will be prompted to enter your password. Use the 10/0,1-9,10+ buttons to enter 2580 (or your privacy password if already established).

  • Page 29: Fm Mode

    FM MODE Manual Memory Presetting Pressing this button alternates between Auto mode Tune in a station. and Mono mode. Press the MEMORY button. Auto Mode FM stereo or monaural broadcasts are received in the same mode as the signal. Mono Mode To compensate for weak FM stereo reception, se- lect this mode.

  • Page 30: Rds (Display Setting Of The Fm)

    Listening to an External Source Select a preset channel using the PRESET buttons. Connect a cassette tape deck etc. to LINE 1 IN jack of the unit using commercially-available RCA cables. Or Connect the audio output jack of a portable audio player to the LINE 2 IN jack of the unit.

  • Page 31: Wake Up Timer

    SLEEP OFF The sleep timer is off. If you want to check the remaining time, press the SLEEP button once. The remaining time will be displayed for 3 seconds, and then return to the normal display. and then press the TIMER button. Wake Up Timer The unit can be programmed to turn on at a specified time.

  • Page 32: Troubleshooting

    Troubleshooting and then press the TIMER button. To keep the warranty valid, never try to repair the sys- tem yourself. If you encounter problems when using this unit, check the following points before requesting service. No power. Ensure that the AC cord of the apparatus is connected properly.
  • Page 33 Replace the battery. Aim the remote control directly at the .sensor on the front of the unit. Disc does not play Insert a readable disc and ensure that the label side faces up. Check the disc type, color system and regional code. Check for any scratches or smudges on the disc.

  • Page 34: Specifications

    Specifications DVD Player Pickup ....................Semiconductor laser, Wave length 650/780nm Signal system .............................. NTSC/PAL Video signal horizontal resolution ..................More than 480 lines (DVD) Video signal-to noise ratio ....................... More than 50dB (DVD) Component Video Frequency Resonse ....................5Hz - 13MHz Audio frequency response ..................

  • Page 35: Standard Accessories

    Standard Accessories FM antenna x 1 RCA video cable x 1 AC Cord x 1 Batteries (AAA, R03, UM-4) x 2 Remote Control (RC-774S) x 1 Warranty Registration Card x 1 Owner’s manual (this document) x 1 Design and specifications are subject to change without notice. Weight and dimensions are approximate.
  • Page 36 Unit 1&12, 9/F, Tower 1, Ever Gain Plaza, 88, Container Port Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.ch.onkyo.com/ I0911-1 SN 29400428 (C) Copyright 2009 ONKYO CORPORATION Japan. All rights reserved. * 2 9 4 0 0 4 2 8 *...
