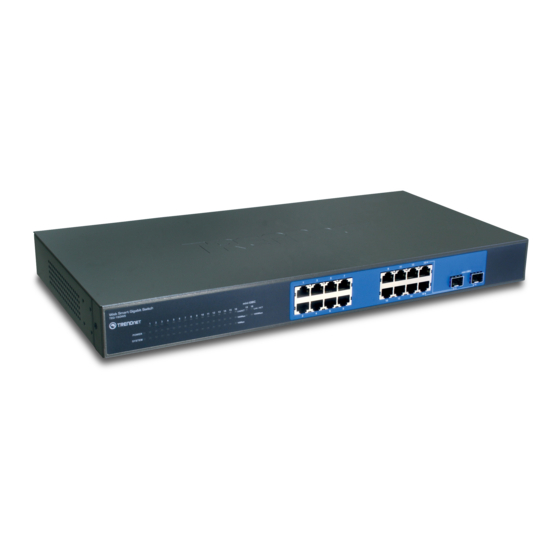

16-port gigabit web smart switch
Hide thumbs Also See for TEG-160WS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
Enlarged version

FCC Warning

This equipment has been tested and found to comply with the
regulations for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with this user's guide, may cause harmful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user will
be required to correct the interference at his or her own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.

VCCI Warning

This is a product of VCCI Class A Compliance.

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TEG-160WS

Summary of Contents for TRENDnet TEG-160WS

  • Page 1: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2 UL Warning a) Elevated Operating Ambient Temperature- If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (Tmra).

  • Page 3: Table Of Contents

      Installing the Web Management Utility ......... 19 TABLE OF CONTENT   Discovery List ................20   About This Guide ................. 1   Monitor List ................... 21   Purpose .................... 1   Device Setting ................23   Terms/Usage ..................1  ...
  • Page 4   Backup Setting ................52   Firmware Upload ............... 52   System Reboot ................53   Logout .................... 53   Technical Specifications ..............45...

  • Page 5: About This Guide

    Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package. Purpose This guide discusses how to install your TEG-160WS 16-Port Gigabit Web Smart Switch. Terms/Usage In this guide, the term “Switch” (first letter upper case) refers to your TEG-160WS 16-Port Gigabit Web Smart Switch and “switch”...

  • Page 6: Introduction

    In addition, the phenomenal bandwidth delivered by Gigabit Ethernet INTRODUCTION is the most cost-effective method to take advantage of today and This chapter describes the features of the TEG-160WS 16-Port tomorrow’s rapidly improving switching and routing internetworking Gigabit Web Smart Switch and some background information about technologies.

  • Page 7: Switching Technology

    Switching Technology VLAN (Virtual Local Area Network) Another approach to pushing beyond the limits of Ethernet technology A VLAN is a group of end-stations that are not constrained by their is the development of switching technology. A switch bridges physical location and can communicate as if a common broadcast Ethernet packets at the MAC address level of the Ethernet protocol domain, a LAN.
  • Page 8 Supports IEEE 802.3x flow control for full-duplex mode ports Supports IEEE 802.1Q VLAN Supports IEEE 802.1p Priority Queues Supports Static Port Trunk Supports IGMP Snooping Supports Jumbo Frame Supports Broadcast Storm Control Supports Port Mirroring Supports Port Setting for Speed, Flow control Easy configuration via WEB Browser Easy setting via Web Management Utility Standard 19”...

  • Page 9: Unpacking And Installation

    Open the shipping cartons of the Switch and carefully unpacks its contents. The carton should contain the following items: TEG-160WS Gigabit Web Smart Switch Multi-Language Quick Installation Guide CD-ROM (Utility & User’s Guide) Rack Mount Kit Figure 1.

  • Page 10: Rack Mounting

    Rack Mounting Connecting Network Cable The switch can be mounted in an EIA standard-size, 19-inch rack, The Switch supports 1000Mbps Gigabit Ethernet that runs in Auto- which can be placed in a wiring closet with other equipment. Attach negotiation mode and 10Mbps Ethernet or 100Mbps Fast Ethernet that the mounting brackets at the switch’s front panel (one on each side), runs both in half and full duplex mode and 1000Mbps Gigabit and secure them with the provided screws.

  • Page 11: Identifying External Components

    IDENTIFYING EXTERNAL COMPONENTS Mini-GBIC Slots (sharing with port 15~16) The Switch is equipped with two combo mini-GBIC ports, supported This chapter describes the front panel, rear panel, and LED indicators optional 1000BASE-SX/LX mini-GBIC module. of the Switch. The 1000BASE-T port 15 and 16 are the same ports with the mini- Front Panel GBIC port 15 and 16, when plug in the mini-GBIC module, the device will activate mini-GBIC, and the RJ45 port will be disabled.

  • Page 12: Understanding Led Indicators

    UNDERSTANDING LED INDICATORS 1000BASE-T Port 1~16 Status LEDs The front panel LEDs provides instant status feedback, and, helps Link/ACT: Link/Activity monitor and troubleshoot when needed. When the Link/ACT LED lights on, the respective port is successfully connected to an Ethernet network. Blinking When the Link/ACT LED is blinking, the port is transmitting or receiving data on the Ethernet network.

  • Page 13: Mini-Gbic Slots 15~ 16 Status Leds

    Mini-GBIC Slots 15~ 16 Status LEDs Link/ACT When the fiber line connected to the mini-GBIC module is installed and connected to a network, the Link/ACT LED will lights on. Blinking : When the Link/ACT LED is blinking, the port is transmitting or receiving data on the Gigabit Ethernet network.

  • Page 14: Configuration

    Management devices in the discovery list. Follow the on-screen instructions to install the utility. Upon completion, go to Program Files TRENDnet Double click or press the “Add to monitor list” button to select a Smart Switch Management Utility and open the Web device from the Discovery List to the Monitor List.

  • Page 15: Monitor List

    System word definitions in the Discovery List: View Trap: The Trap function can receive the events that happen from the Web Management Switch in the Monitor List. MAC Address: Shows the device MAC Address. There is a light indicator behind the “View Trap” button, when the IP Address: Shows the current IP address of the device.

  • Page 16: Device Setting

    10, after filling up the data that you want to change, you must fill up the password and press the “Set” to process the data changed immediately. The default password of this TEG-160WS 16-Port Gigabit Web Smart Switch configuration is “admin”.

  • Page 17: Toolbar

    Toolbar Configuring the Switch The toolbar in the Web Management Utility have four main tabs, File, The TEG-160WS 16-Port Gigabit Web Smart Switch has a Web GUI View, Options and Help. interface for smart switch configuration. The Switch can be configured through the Web Browser.

  • Page 18: Setup Settings

    Or through the Web Management Utility, you do not need to Setup Settings remember the IP Address, select the device shown in the Monitor List of the Web Management Utility to settle the device on the Web Find that there are seven items, including Port Setting, IEEE 802.1Q Browser.

  • Page 19: Ieee 802.1Q Vlan

    Speed: The 1000BASE-T connections can operate in Forced Mode settings The IEEE 802.1Q VLAN Configuration page provides powerful VID (1000M Full, 100M Full, 100M Half, 10M Full, 10M Half), Auto, or management functions. The original settings have the VID as 01, Disable.
  • Page 20 Untag Asymmetric VLAN Setting: Not Member: The port number which not to be grouped. The IEEE 802.1Q VLAN Configuration page provides powerful VID Select All: Select all ports to be VLAN members or not VLAN management functions. The original default VLAN setting has the members.
  • Page 21 Step2: Create VID 02 and set port 9~16 to “Untag Port” member, then apply setting. Example 1: Here is an example of two VLAN groups with several ports in each group and VLAN 1 (VID 01) does not have communication with VLAN 2 (VID 02).
  • Page 22 Step 4: Create VID 03 and set port 1, 6~9 to “Untag” ports then apply settings. Step2: Set VLAN1 port 1~16 to “Untag” ports, then apply setting. Step 5: Set PVID port 2~9 value as below list Step3: Create VID 02 and set port 1~5 to “Untag” ports and port 6~16 to “Not Member”...
  • Page 23 Tag VLAN Setting then apply setting. The IEEE802.1Q protocol defines a new format of the frame; it adds a tag header in the original Ethernet frame, as follows: IEEE802.1Q Tag VLAN is divided by VLAN ID (VID). On receiving a frame, the switch checks the VID in the tag header of the frame to decide which VLAN it belongs to.

  • Page 24: Trunk Setting

    Setting Tag VLAN on two switches. Switch 1’s VLAN 1 (2 ~ 3 ports) Trunk Setting have access to the Switch 2’s VLAN 1 (2 ~ 3 ports). The Trunking function enables the cascading of two or more ports for a combined larger bandwidth.

  • Page 25: Ieee 802.1P Default Priority

    Selection of the Sniffer mode is as follow: Broadcast Storm Control Setting TX (transmit) mode: this mode will duplicate the data transmit from the source port and forward to the Sniffer port. The Broadcast Storm Control feature provides the ability to control RX (receive) mode: this mode will duplicate the data that send to the the receive rate of broadcasted packets.

  • Page 26: Igmp Snooping Setting

    IGMP Snooping: Enable or Disable the IGMP Snooping function on IGMP Snooping Setting the Web Smart Switch. Querier State: Enable or Disable the Querier State of IGMP Find that there are two items, including IGMP Global Setting and Snooping. IGMP VLAN Setting in Advanced menu. Query Interval (60-600 sec): The Query Interval is the interval IGMP Global Setting between General Queries sent.

  • Page 27: Igmp Vlan Setting

    restarted whenever a report message from host is received over that port. If no report messages are received for 'HostPortPurgeInterval' time, the learnt host entry will be purged from the multicast group. Default is 260 seconds. Router Timeout (60-600 sec): This is the interval after which a learnt router port entry will be purged.

  • Page 28: System Setting

    System Setting System Setting The System Setting includes IP Information and System information. Find that there are nine items, including System Information, System There are two ways for the switch to attain IP: Static and DHCP Setting, Trap Setting, Password Setting, Statistics, Factory Reset, (Dynamic Host Configuration Protocol).

  • Page 29: Trap Setting

    Trap Setting Password Setting Setting a password is a invaluable tool for managers to secure the Web By configuring the Trap Setting, it allows Web Management Utility to Smart Switch. After entering the old password and the new password monitor specified events on this Web-Smart Switch. By default, Trap two times, press Apply for the changes to take effect.

  • Page 30: Factory Reset

    Refresh: To renew the details collected and displayed. Backup Setting Clear Counter: To reset the details displayed. The backup setting help you to backup the current setting of the To view the statistics of individual ports, click one of the Port ID as Switch.

  • Page 31: System Reboot

    System Reboot Provides a safe way to reboot the system. Ensure the configuration has been saved, or all the changes you just made may be lost after system reboot. System Reboot Logout When press this function, the web configuration will go back to first Login page.

  • Page 32: Technical Specifications

    TECHNICAL SPECIFICATIONS Performance Transmits  Store‐and‐forward  General Method:  Standards  IEEE 802.3 10BASE‐T Ethernet  RAM Buffer:  512KBytes per device  IEEE 802.3u 100BASE‐TX Fast Ethernet  Filtering Address  8K entries per device  IEEE 802.3ab 1000BASE‐T Gigabit Ethernet  Table:  IEEE 802.3x Full Duplex Flow Control  MAC Address  Automatic update  IEEE 802.3z 1000BASE‐SX/LX Gigabit Ethernet  Learning:  Protocol  CSMA/CD  Packet Filtering /  10Mbps Ethernet: 14,880/pps  Data Transfer  Ethernet: 10Mbps (half‐duplex), 20Mbps (full‐duplex)  Forwarding Rate:  100Mbps Fast Ethernet: 148,800/pps  Rate  Fast Ethernet: 100Mbps (half‐duplex), 200Mbps (full‐duplex)  1000Mbps Gigabit Ethernet: 1,488,000/pps  Gigabit Ethernet: 2000Mbps (full‐duplex)  Topology  Star  Network Cables  10BASET: 2‐pair UTP Cat. 3, 4, 5; up to 100m  100BASE‐TX: 2‐pair UTP Cat. 5; up to 100m  1000BASE‐T: 4‐pair UTP Cat. 5; up to 100m  Fiber Module: Mini‐GBIC Fiber module (LC‐Type cable)  Number of Ports ...

  • Page 33: Limited Warranty

    TEG-160WS - 5 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN defective product or deliver to customer an equivalent product to replace the THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR...
