TECHNICAL GUIDE
SUNLINE 2000™
SINGLE PACKAGE
AIR-TO-AIR
HEAT PUMPS
MODEL BQ240
20 NOMINAL TONS
8.8 EER
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

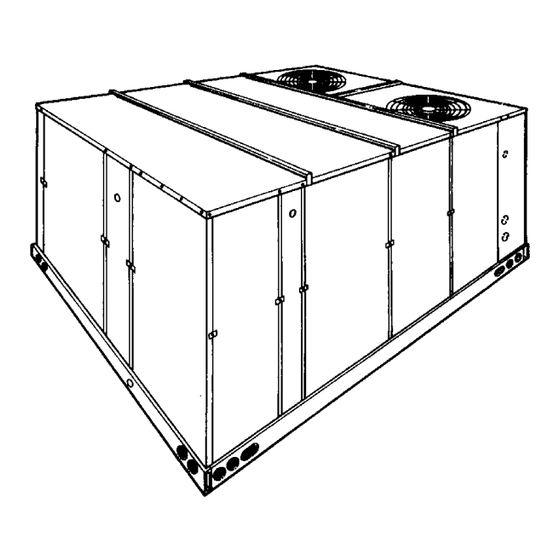

DESCRIPTION
®
York
Sunline 2000™ Heat Pumps are convertible single package
units. All models have dual refrigerant circuits for efficient part load
operation. Although the units are primarily designed for curb
mounting on a roof, they can also be slab-mounted at ground level
or set on steel beams above a finished roof.
These heat pumps utilize a unique ambient compensated time-
temperature defrost system. The defrost module automatically
increases the time interval between defrost cycles as the outdoor
ambient temperature decreases. This helps to eliminate unneces-
sary and costly defrosts.
All units include:
•
Powder Paint finish that meets ASTM-B-117 1000 hour salt
spray standards
•
Two-stage cooling provided by dual independent refrigeration
circuits with expansion valves, filter-driers, high and low pres-
sure/loss of charge switches and freezestats
•
Hermetically sealed compressors with crankcase heaters
•
Permanently lubricated motors
•
Bottom or side air discharge configuration capability (field con-
vertible)
•
Belt Drive Blower Motor
•
Manufactured under the quality standards of ISO9001
•
Twenty-four volt control circuit with compressor lock-out
•
Zero-25% fixed air damper with hood
•
Copper tube/aluminum fin coils
•
Easy access to all components
•
Rigging holes in base rails for lifting
•
Single point power connection
•
Complete factory package - tested, charged and wired
•
CSA agency approvals on all units
WARRANTY
•
Factory Limited Parts Warranty
•
One-year parts warranty
•
A Five-year parts warranty on the compressor and
electric heat elements.
036-21489-001-C-1004
Advertisement
Table of Contents
Related Manuals for York BQ240
Summary of Contents for York BQ240
-
Page 1: Description
Hermetically sealed compressors with crankcase heaters • Permanently lubricated motors HEAT PUMPS • Bottom or side air discharge configuration capability (field con- vertible) MODEL BQ240 • Belt Drive Blower Motor • Manufactured under the quality standards of ISO9001 20 NOMINAL TONS •... -
Page 2: Table Of Contents
036-21489-001-C-1004 TABLE OF CONTENTS DESCRIPTION ......1 LIST OF TABLES PRODUCT NOMENCLATURE ....3 Tbl. -
Page 3: Product Nomenclature
036-21489-001-C-1004 PRODUCT NOMENCLATURE 20T Sunline 2000™ Model Number Nomenclature York Brand B Q 240 C 00 A 2 A AA 1 A Product Category Product Style B = Heat Pump, Single Package A = Style A Product Generation 1 = First Generation... - Page 4 036-21489-001-C-1004 PRODUCT NOMENCLATURE - CONTINUED 20T Sunline 2000™ Model Number Nomenclature Standard Cabinet None Phase Monitor Coil Guard Dirty Filter Switch Phase Monitor & Coil Guard Phase Monitor & Dirty Filter Switch Coil Guard & Dirty Filter Switch Phase Monitor, Coil Guard, & Dirty Filter Switch SS Drain Pan SS Drain Pan &...
-
Page 5: List Of Figures
036-21489-001-C-1004 Standard Cabinet Johnson UNT Controller, DFS, APS, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard Johnson UNT Controller, DFS, APS, SS Drain Pan Johnson UNT Controller, DFS, APS, SS Drain Pan, Phase Monitor, & Coil Guard Johnson UNT Controller, DFS, APS, SS Drain Pan, & Technicoat Cond Coils Johnson UNT Controller, DFS, APS, SS Drain Pan, &... - Page 6 036-21489-001-C-1004 Standard Cabinet Technicoat Condenser Coil, Phase Monitor, & Coil Guard Technicoat Condenser Coil, Phase Monitor, & Dirty Filter Switch Technicoat Condenser Coil, Coil Guard, & Dirty Filter Switch Technicoat Condenser Coil, Phase Monitor, Coil Guard, & Dirty Filter Switch Technicoat Evaporator Coil Technicoat Evaporator Coil &...
- Page 7 036-21489-001-C-1004 Standard Cabinet WL Intelli-Comfort w/ModLINC Controller, Technicoat Evap. Coil, & Coil Guard WM Intelli-Comfort w/ModLINC Controller, Technicoat Evap. Coil, Phase Monitor, & Coil Guard WN Intelli-Comfort w/ModLINC Controller, & Technicoat Evap. & Cond Coils WP Intelli-Comfort w/ModLINC Controller, Technicoat Evap. & Cond Coils, & Phase Monitor WQ Intelli-Comfort w/ModLINC Controller, Technicoat Evap.
- Page 8 036-21489-001-C-1004 Hinged Filter Door & Toolless Access Cabinet Johnson UNT Controller, DFS, APS, Technicoat Cond. Coil, & Phase Monitor, Hinged Filter Door & Toolless Access Panels Johnson UNT Controller, DFS, APS, Technicoat Cond. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels Johnson UNT Controller, DFS, APS, Technicoat Cond.
- Page 9 036-21489-001-C-1004 Hinged Filter Door & Toolless Access Cabinet Novar ETC-3 Controller, DFS, APS, Technicoat Evap. Coil, & Coil Guard, Hinged Filter Door & Toolless Access Panels PM Novar ETC-3 Controller, DFS, APS, Technicoat Evap. Coil, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Access Panels Novar ETC-3 Controller, DFS, APS &...
- Page 10 036-21489-001-C-1004 Hinged Filter Door & Toolless Access Cabinet QQ Simplicity Intelli-Comfort Controller, Technicoat Evap. & Cond Coils, & Coil Guard, Hinged Filter Door & Toolless Access Panels QR Simplicity Intelli-Comfort Controller, Technicoat Evap. & Cond Coils, Phase Monitor, & Coil Guard, Hinged Filter Door & Toolless Simplicity Intelli-Comfort Controller, SS Drain Pan Hinged Filter Door &...
-
Page 11: Features
• BAS Controls - York’s Sunline™ series units offer factory ® is available. mounted BAS controls such as Simplicity... -
Page 12: Factory-Installed Options
BAS - Building Automation System Controls MIZERS - Includes a slide-in / plug-in damper assembly ® ® Comfort Simplicity Intelli- ™ CONTROL - The York with fully modulating spring-return motor actuator capa- ® Comfort ™ control is factory installed. Simplicity Intelli-... -
Page 13: Field-Installed Accessories
036-21489-001-C-1004 • SMOKE DETECTORS - (supply air & return air) The The rain hood is painted to match the basic unit and smoke detectors stop operation of the unit by interrupting must be field assembled before installing. power to the control board if smoke is detected within the Power exhaust is not available as a field installed option. -
Page 14: Sunline 2000Tm Heat Pump
17º F CAPACITY (KW) HEAT PUMP WITH ELECTRIC HEAT IPLV MBH COP MBH COP MODEL IPLV BQ240 18,36,54,72 BQ240E18 1. Certified in accordance with the Unitary Large Equipment Certifi- BQ240E36 cation Program which is based on ARI Standard 340/360. BQ240E54 2. -
Page 15: Cooling Capacities - 20 Ton
036-21489-001-C-1004 TABLE 3: COOLING CAPACITIES - 20 TON TEMPERATURE OF AIR ON OUTDOOR COIL AIR ON 85°F 95°F EVAPORATOR SENSIBLE CAPACITY, MBH SENSIBLE CAPACITY, MBH COIL TOTAL POWER TOTAL POWER ENTERING DRY BULB, °F ENTERING DRY BULB, °F CAP. INPUT CAP. -
Page 16: Heating Capacities - 20 Ton
036-21489-001-C-1004 TABLE 4: HEATING CAPACITIES - 20 TON BCH240 Return OUTDOOR AIR TEMPERATURE, ºF (72% RH) & KW Air ºF 11.8 12.7 13.7 14.6 15.5 16.5 17.8 19.0 6000 12.5 13.5 14.5 15.5 16.5 17.5 18.8 20.2 13.0 14.0 15.1 16.1 17.2 18.2... -
Page 17: Altitude Correction Factors
036-21489-001-C-1004 CFM, STATIC PRESSURE, AND POWER - ALTI- order to use the indoor blower tables for high altitude applica- tions, certain corrections are necessary. TUDE AND TEMPERATURE CORRECTIONS A centrifugal fan is a "constant volume" device. This means The information below should be used to assist in application that, if the rpm remains constant, the CFM delivered is the of product when being applied at altitudes at or exceeding same regardless of the density of the air. -
Page 18: Altitude/Temperature Conversion Factor
036-21489-001-C-1004 ltitude/Temperature Conversion Factor SEA LEVEL TEMPER TURE (°F) Figure 2: ALTITUDE/TEMPERATURE CONVERSION FACTOR Unitary Products Group... -
Page 19: Blower Performance - 20 Ton Supply Air
036-21489-001-C-1004 TABLE 6: BLOWER PERFORMANCE - 20 TON SUPPLY AIR BOTTOM DUCT CONNECTIONS Motor Blower Pulley Speed 6000 7000 8000 9000 9400 (Turns (RPM) Open)* 208 VOLT AND STANDARD DRIVE 6.0** 1015 208 VOLT AND HIGH SPEED DRIVE ACCESSORY 1010 1020 1035 1050... -
Page 20: Blower Motor And Drive Data
(In.) Diameter (In.) (In.) (In.) Standard 870/1025 BK120 11.75 11.4 1-3/16 BX83 84.8 High BQ240 213T 1VP68 6.75 1-3/8 Speed 950/1120 BK110 10.75 10.4 1-3/16 BX80 81.8 Access 1. All motors have a nominal speed of 1800 RPM, at 1.5 service factor and a solid base.They can operate to the limit of their service factor because they are located in the moving air, upstream of any heating device. -
Page 21: Electronic Thermostat Field Wiring
036-21489-001-C-1004 The thermostat must provide a “G” signal when there is a call for “W1.”The unit control board will energize the indoor blower when the compressors are energized; however, if the thermostat calls for “W2” during the anti- short-cycle delay, the electric heat (when installed) will be energized immediately upon the call for “W2.”... -
Page 22: Field Wiring Disconnect
036-21489-001-C-1004 LD WIRING DISCONNECT FIGURE 5 : FIELD WIRING DISCONNECT TABLE 10: VOLTAGE LIMITATIONS VOLTAGE POWER SUPPLY MIN. MAX. 208/230-3-60 460-3-60 575-3-60 Unitary Products Group... -
Page 23: Electrical Data -Without Powered Convenience Outlet
112.6 165.1 54.1 150.1 193.7 101.7 18.0 43.3 155.8 16.7 21.0 36.0 86.6 155.8 54.0 129.9 156.2 72.0 173.2 209.9 BQ240 54.9 18.0 21.7 82.0 36.0 43.3 82.0 54.0 65.0 82.0 72.0 86.6 109.1 38.8 18.0 17.3 60.4 36.0 34.6 60.4... -
Page 24: Electrical Data -With Powered Convenience Outlet
177.6 54.1 150.1 203.7 111.7 18.0 43.3 165.8 16.7 21.0 10.0 36.0 86.6 165.8 54.0 129.9 168.7 72.0 173.2 219.9 BQ240 59.9 18.0 21.7 87.0 36.0 43.3 87.0 54.0 65.0 87.0 72.0 86.6 114.1 42.8 18.0 17.3 64.4 36.0 34.6 64.4... -
Page 25: Physical Data
036-21489-001-C-1004 TABLE 14: PHYSICAL DATA MODEL BQ240 CENTRIFUGAL BLOWER (Dia. x Wd. in.) 18 x 15 SUPPLY AIR BLOWER FAN MOTOR HP ROWS DEEP INDOOR COIL FINS PER INCH FACE AREA (Sq. Ft.) 20.5 PROPELLER DIA. (in.) (Each) OUTDOOR FAN MOTOR HP (Each) 1.25... -
Page 26: Unit Dimensions - 20 Ton
036-21489-001-C-1004 ECONOMIZE / MOTO IZED DAMPE , FIXED OUTDOO INTAKE AI AND FIELD-SUPPLIED POWE EXHAUST AIN HOODS DISCONNECT SWITCH (See detail "Y") BLOWE LOCATION COMP ESSO ACCESS ACCESS BLOWE MOTO (See detail "X") ACCESS OPTIONAL COIL BLOWE GUA D KIT COMPA TMENT ACCESS (Auxiliary) -
Page 27: Detail "X" Accy. Side Supply & Return Air Openings
036-21489-001-C-1004 DUCT COVERS - Units are shipped with the bottom duct openings covered. An accessory flange kit is available for con- CONDEN ER necting side ducts. ECTION EVAPORATOR ECTION GAUGE LINE ACCE For bottom duct applications: 1. Remove the side panels from the supply and return DOT PLUG air compartments to gain access to the bottom (For pressure... -
Page 28: Four And Six Point Loads
036-21489-001-C-1004 FRONT FRONT FIGURE 10 : FOUR AND SIX POINT LOADS TABLE 18: FOUR AND SIX POINT LOADS 4 - POINT LOADS (LBS) UNIT TOTAL 2390 NOTE: These weights are with economizer and 72 kW electric heat. 6 - POINT LOADS (LBS) UNIT TOTAL 2390... -
Page 29: Roof Curb Dimensions - 20 Ton
036-21489-001-C-1004 FIGURE 11 : ROOF CURB DIMENSIONS - 20 TON FIGURE 12 : ROOF CURB BENEFITS FIGURE 13 : UNIT AND CURB APPLICATIONS Unitary Products Group... -
Page 30: Typical Applications
036-21489-001-C-1004 FIGURE 14 : TYPICAL APPLICATIONS FIGURE 15 : TYPICAL ROOF-TOP INSTALLATION Unitary Products Group... -
Page 31: Simplicity ® Control Wiring Diagram
036-21489-001-C-1004 THERMOSTAT CONTROL TERMINALS TERMINAL BLOCK Smoke Detector Jumper 24 VAC Class 2 TERMINALS ON A LIMITED NUMBER OF THERMOSTATS Second stage heating not required on single stage heating units. Second stage cooling not required on single stage cooling units. Jumper is required if there is no Smoke Detector circuit. -
Page 32: Guide Specifications
Units shall be manufactured by York International Unitary ® The power supply wiring shall be routed into the control box Products Group is an ISO 9001 certified facility. York Sun- through a threaded pipe connection in the base pan of the line 2000™...
