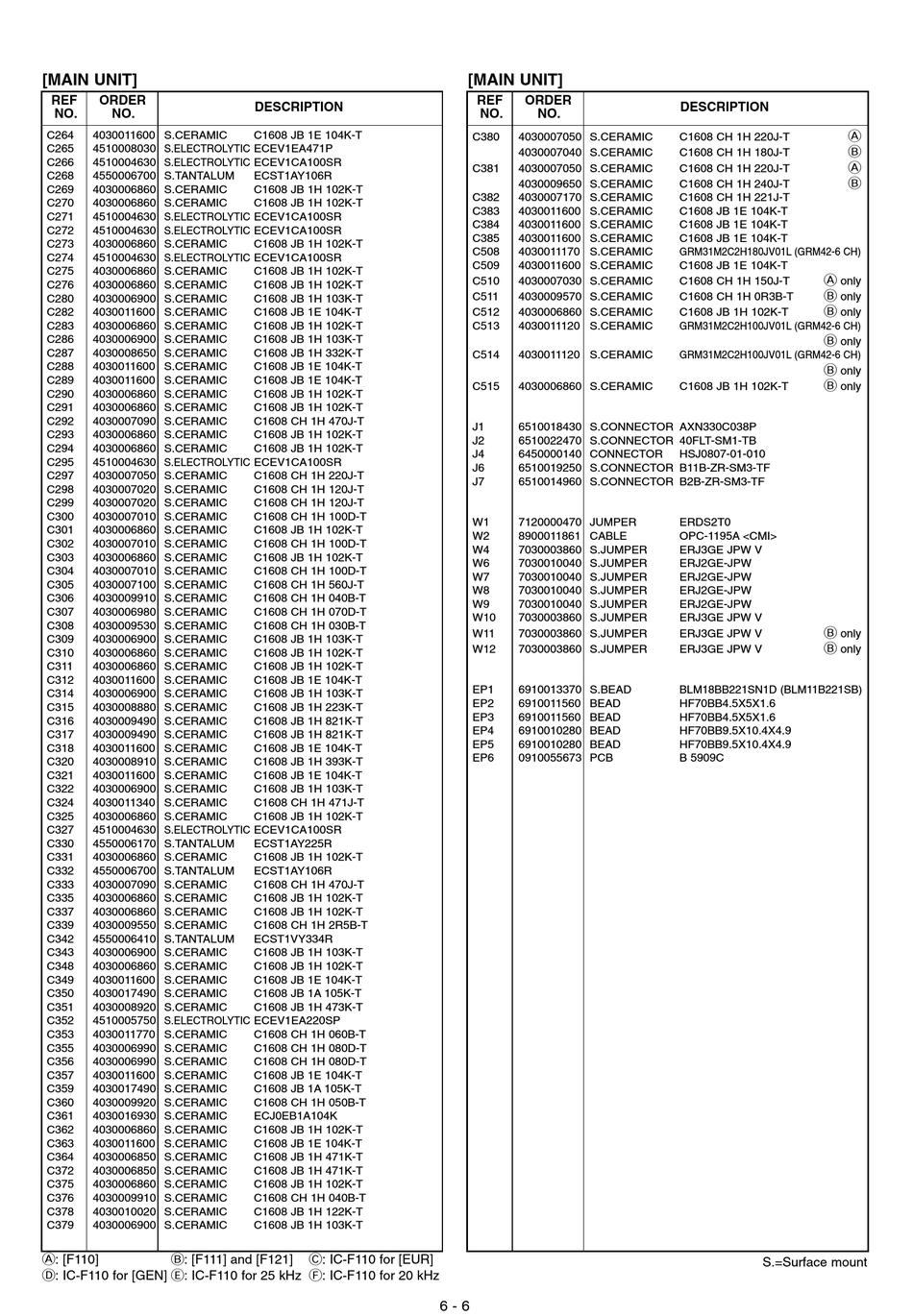

Icom iF110 Service Manual page 23

[MAIN UNIT]
REF ORDER
NO. NO.
C264 4030011600 S.CERAMIC
C265 4510008030 S.ELECTROLYTIC ECEV1EA471P
C266 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C268 4550006700 S.TANTALUM
C269 4030006860 S.CERAMIC
C270 4030006860 S.CERAMIC
C271 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C272 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C273 4030006860 S.CERAMIC
C274 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C275 4030006860 S.CERAMIC
C276 4030006860 S.CERAMIC
C280 4030006900 S.CERAMIC
C282 4030011600 S.CERAMIC
C283 4030006860 S.CERAMIC
C286 4030006900 S.CERAMIC
C287 4030008650 S.CERAMIC
C288 4030011600 S.CERAMIC
C289 4030011600 S.CERAMIC
C290 4030006860 S.CERAMIC
C291 4030006860 S.CERAMIC
C292 4030007090 S.CERAMIC
C293 4030006860 S.CERAMIC
C294 4030006860 S.CERAMIC
C295 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C297 4030007050 S.CERAMIC
C298 4030007020 S.CERAMIC
C299 4030007020 S.CERAMIC
C300 4030007010 S.CERAMIC
C301 4030006860 S.CERAMIC
C302 4030007010 S.CERAMIC
C303 4030006860 S.CERAMIC
C304 4030007010 S.CERAMIC
C305 4030007100 S.CERAMIC
C306 4030009910 S.CERAMIC
C307 4030006980 S.CERAMIC
C308 4030009530 S.CERAMIC
C309 4030006900 S.CERAMIC
C310 4030006860 S.CERAMIC
C311 4030006860 S.CERAMIC
C312 4030011600 S.CERAMIC
C314 4030006900 S.CERAMIC
C315 4030008880 S.CERAMIC
C316 4030009490 S.CERAMIC
C317 4030009490 S.CERAMIC
C318 4030011600 S.CERAMIC
C320 4030008910 S.CERAMIC
C321 4030011600 S.CERAMIC
C322 4030006900 S.CERAMIC
C324 4030011340 S.CERAMIC
C325 4030006860 S.CERAMIC
C327 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C330 4550006170 S.TANTALUM
C331 4030006860 S.CERAMIC
C332 4550006700 S.TANTALUM
C333 4030007090 S.CERAMIC
C335 4030006860 S.CERAMIC
C337 4030006860 S.CERAMIC
C339 4030009550 S.CERAMIC
C342 4550006410 S.TANTALUM
C343 4030006900 S.CERAMIC
C348 4030006860 S.CERAMIC
C349 4030011600 S.CERAMIC
C350 4030017490 S.CERAMIC
C351 4030008920 S.CERAMIC
C352 4510005750 S.ELECTROLYTIC ECEV1EA220SP
C353 4030011770 S.CERAMIC
C355 4030006990 S.CERAMIC
C356 4030006990 S.CERAMIC
C357 4030011600 S.CERAMIC
C359 4030017490 S.CERAMIC
C360 4030009920 S.CERAMIC
C361 4030016930 S.CERAMIC
C362 4030006860 S.CERAMIC
C363 4030011600 S.CERAMIC
C364 4030006850 S.CERAMIC
C372 4030006850 S.CERAMIC
C375 4030006860 S.CERAMIC
C376 4030009910 S.CERAMIC
C378 4030010020 S.CERAMIC
C379 4030006900 S.CERAMIC
A: [F110] B: [F111] and [F121]
D: IC-F110 for [GEN] E: IC-F110 for 25 kHz F: IC-F110 for 20 kHz
DESCRIPTION
C1608 JB 1E 104K-T
ECST1AY106R
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 103K-T
C1608 JB 1E 104K-T
C1608 JB 1H 102K-T
C1608 JB 1H 103K-T
C1608 JB 1H 332K-T
C1608 JB 1E 104K-T
C1608 JB 1E 104K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 CH 1H 470J-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 CH 1H 220J-T
C1608 CH 1H 120J-T
C1608 CH 1H 120J-T
C1608 CH 1H 100D-T
C1608 JB 1H 102K-T
C1608 CH 1H 100D-T
C1608 JB 1H 102K-T
C1608 CH 1H 100D-T
C1608 CH 1H 560J-T
C1608 CH 1H 040B-T
C1608 CH 1H 070D-T
C1608 CH 1H 030B-T
C1608 JB 1H 103K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1E 104K-T
C1608 JB 1H 103K-T
C1608 JB 1H 223K-T
C1608 JB 1H 821K-T
C1608 JB 1H 821K-T
C1608 JB 1E 104K-T
C1608 JB 1H 393K-T
C1608 JB 1E 104K-T
C1608 JB 1H 103K-T
C1608 CH 1H 471J-T
C1608 JB 1H 102K-T
ECST1AY225R
C1608 JB 1H 102K-T
ECST1AY106R
C1608 CH 1H 470J-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 CH 1H 2R5B-T
ECST1VY334R
C1608 JB 1H 103K-T
C1608 JB 1H 102K-T
C1608 JB 1E 104K-T
C1608 JB 1A 105K-T
C1608 JB 1H 473K-T
C1608 CH 1H 060B-T
C1608 CH 1H 080D-T
C1608 CH 1H 080D-T
C1608 JB 1E 104K-T
C1608 JB 1A 105K-T
C1608 CH 1H 050B-T
ECJ0EB1A104K
C1608 JB 1H 102K-T
C1608 JB 1E 104K-T
C1608 JB 1H 471K-T
C1608 JB 1H 471K-T
C1608 JB 1H 102K-T
C1608 CH 1H 040B-T
C1608 JB 1H 122K-T
C1608 JB 1H 103K-T
C: IC-F110 for [EUR]
[MAIN UNIT]
REF ORDER
NO. NO.
C380 4030007050 S.CERAMIC
4030007040 S.CERAMIC
C381 4030007050 S.CERAMIC
4030009650 S.CERAMIC
C382 4030007170 S.CERAMIC
C383 4030011600 S.CERAMIC
C384 4030011600 S.CERAMIC
C385 4030011600 S.CERAMIC
C508 4030011170 S.CERAMIC
C509 4030011600 S.CERAMIC
C510 4030007030 S.CERAMIC
C511 4030009570 S.CERAMIC
C512 4030006860 S.CERAMIC
C513 4030011120 S.CERAMIC
C514 4030011120 S.CERAMIC
C515 4030006860 S.CERAMIC
J1 6510018430 S.CONNECTOR AXN330C038P
J2 6510022470 S.CONNECTOR 40FLT-SM1-TB
J4 6450000140 CONNECTOR
J6 6510019250 S.CONNECTOR B11B-ZR-SM3-TF
J7 6510014960 S.CONNECTOR B2B-ZR-SM3-TF
W1 7120000470 JUMPER
W2 8900011861 CABLE
W4 7030003860 S.JUMPER
W6 7030010040 S.JUMPER
W7 7030010040 S.JUMPER
W8 7030010040 S.JUMPER
W9 7030010040 S.JUMPER
W10 7030003860 S.JUMPER
W11 7030003860 S.JUMPER
W12 7030003860 S.JUMPER
EP1 6910013370 S.BEAD
EP2 6910011560 BEAD
EP3 6910011560 BEAD
EP4 6910010280 BEAD
EP5 6910010280 BEAD
EP6 0910055673 PCB
6 - 6
DESCRIPTION
A
C1608 CH 1H 220J-T
B
C1608 CH 1H 180J-T
A
C1608 CH 1H 220J-T
B
C1608 CH 1H 240J-T
C1608 CH 1H 221J-T
C1608 JB 1E 104K-T
C1608 JB 1E 104K-T
C1608 JB 1E 104K-T
GRM31M2C2H180JV01L (GRM42-6 CH)
C1608 JB 1E 104K-T
A
C1608 CH 1H 150J-T only
B
C1608 CH 1H 0R3B-T only
B
C1608 JB 1H 102K-T only
GRM31M2C2H100JV01L (GRM42-6 CH)
B
only
GRM31M2C2H100JV01L (GRM42-6 CH)
B
only
B
C1608 JB 1H 102K-T only
HSJ0807-01-010
ERDS2T0
OPC-1195A <CMI>
ERJ3GE JPW V
ERJ2GE-JPW
ERJ2GE-JPW
ERJ2GE-JPW
ERJ2GE-JPW
ERJ3GE JPW V
B
ERJ3GE JPW V only
B
ERJ3GE JPW V only
BLM18BB221SN1D (BLM11B221SB)
HF70BB4.5X5X1.6
HF70BB4.5X5X1.6
HF70BB9.5X10.4X4.9
HF70BB9.5X10.4X4.9
B 5909C
S.=Surface mount
