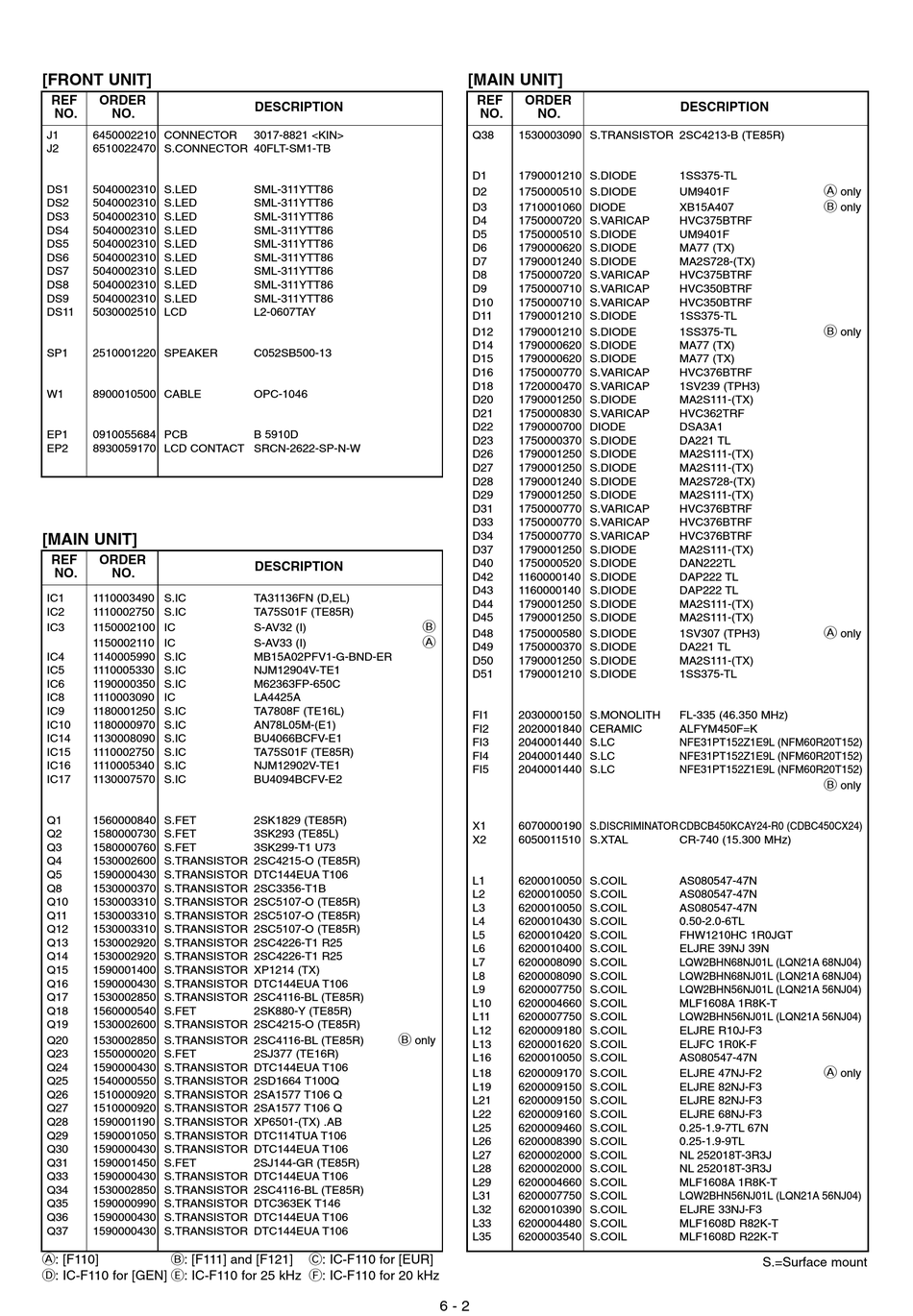

Icom iF110 Service Manual page 19

[FRONT UNIT]
REF ORDER
NO. NO.
J1 6450002210 CONNECTOR
J2 6510022470 S.CONNECTOR 40FLT-SM1-TB
DS1 5040002310 S.LED
DS2 5040002310 S.LED
DS3 5040002310 S.LED
DS4 5040002310 S.LED
DS5 5040002310 S.LED
DS6 5040002310 S.LED
DS7 5040002310 S.LED
DS8 5040002310 S.LED
DS9 5040002310 S.LED
DS11 5030002510 LCD
SP1 2510001220 SPEAKER
W1 8900010500 CABLE
EP1 0910055684 PCB
EP2 8930059170 LCD CONTACT SRCN-2622-SP-N-W
[MAIN UNIT]
REF ORDER
NO. NO.
IC1 1110003490 S.IC
IC2 1110002750 S.IC
IC3 1150002100 IC
1150002110 IC
IC4 1140005990 S.IC
IC5 1110005330 S.IC
IC6 1190000350 S.IC
IC8 1110003090 IC
IC9 1180001250 S.IC
IC10 1180000970 S.IC
IC14 1130008090 S.IC
IC15 1110002750 S.IC
IC16 1110005340 S.IC
IC17 1130007570 S.IC
Q1 1560000840 S.FET
Q2 1580000730 S.FET
Q3 1580000760 S.FET
Q4 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q5 1590000430 S.TRANSISTOR DTC144EUA T106
Q8 1530000370 S.TRANSISTOR 2SC3356-T1B
Q10 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q11 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q12 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q13 1530002920 S.TRANSISTOR 2SC4226-T1 R25
Q14 1530002920 S.TRANSISTOR 2SC4226-T1 R25
Q15 1590001400 S.TRANSISTOR XP1214 (TX)
Q16 1590000430 S.TRANSISTOR DTC144EUA T106
Q17 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q18 1560000540 S.FET
Q19 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q20 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q23 1550000020 S.FET
Q24 1590000430 S.TRANSISTOR DTC144EUA T106
Q25 1540000550 S.TRANSISTOR 2SD1664 T100Q
Q26 1510000920 S.TRANSISTOR 2SA1577 T106 Q
Q27 1510000920 S.TRANSISTOR 2SA1577 T106 Q
Q28 1590001190 S.TRANSISTOR XP6501-(TX) .AB
Q29 1590001050 S.TRANSISTOR DTC114TUA T106
Q30 1590000430 S.TRANSISTOR DTC144EUA T106
Q31 1590001450 S.FET
Q33 1590000430 S.TRANSISTOR DTC144EUA T106
Q34 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q35 1590000990 S.TRANSISTOR DTC363EK T146
Q36 1590000430 S.TRANSISTOR DTC144EUA T106
Q37 1590000430 S.TRANSISTOR DTC144EUA T106
A: [F110] B: [F111] and [F121]
D: IC-F110 for [GEN] E: IC-F110 for 25 kHz F: IC-F110 for 20 kHz
DESCRIPTION
3017-8821 <KIN>
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
L2-0607TAY
C052SB500-13
OPC-1046
B 5910D
DESCRIPTION
TA31136FN (D,EL)
TA75S01F (TE85R)
B
S-AV32 (I)
A
S-AV33 (I)
MB15A02PFV1-G-BND-ER
NJM12904V-TE1
M62363FP-650C
LA4425A
TA7808F (TE16L)
AN78L05M-(E1)
BU4066BCFV-E1
TA75S01F (TE85R)
NJM12902V-TE1
BU4094BCFV-E2
2SK1829 (TE85R)
3SK293 (TE85L)
3SK299-T1 U73
2SK880-Y (TE85R)
B
only
2SJ377 (TE16R)
2SJ144-GR (TE85R)
C: IC-F110 for [EUR]
[MAIN UNIT]
REF ORDER
NO. NO.
Q38 1530003090 S.TRANSISTOR 2SC4213-B (TE85R)
D1 1790001210 S.DIODE
D2 1750000510 S.DIODE
D3 1710001060 DIODE
D4 1750000720 S.VARICAP
D5 1750000510 S.DIODE
D6 1790000620 S.DIODE
D7 1790001240 S.DIODE
D8 1750000720 S.VARICAP
D9 1750000710 S.VARICAP
D10 1750000710 S.VARICAP
D11 1790001210 S.DIODE
D12 1790001210 S.DIODE
D14 1790000620 S.DIODE
D15 1790000620 S.DIODE
D16 1750000770 S.VARICAP
D18 1720000470 S.VARICAP
D20 1790001250 S.DIODE
D21 1750000830 S.VARICAP
D22 1790000700 DIODE
D23 1750000370 S.DIODE
D26 1790001250 S.DIODE
D27 1790001250 S.DIODE
D28 1790001240 S.DIODE
D29 1790001250 S.DIODE
D31 1750000770 S.VARICAP
D33 1750000770 S.VARICAP
D34 1750000770 S.VARICAP
D37 1790001250 S.DIODE
D40 1750000520 S.DIODE
D42 1160000140 S.DIODE
D43 1160000140 S.DIODE
D44 1790001250 S.DIODE
D45 1790001250 S.DIODE
D48 1750000580 S.DIODE
D49 1750000370 S.DIODE
D50 1790001250 S.DIODE
D51 1790001210 S.DIODE
FI1 2030000150 S.MONOLITH
FI2 2020001840 CERAMIC
FI3 2040001440 S.LC
FI4 2040001440 S.LC
FI5 2040001440 S.LC
X1 6070000190 S.DISCRIMINATOR CDBCB450KCAY24-R0 (CDBC450CX24)
X2 6050011510 S.XTAL
L1 6200010050 S.COIL
L2 6200010050 S.COIL
L3 6200010050 S.COIL
L4 6200010430 S.COIL
L5 6200010420 S.COIL
L6 6200010400 S.COIL
L7 6200008090 S.COIL
L8 6200008090 S.COIL
L9 6200007750 S.COIL
L10 6200004660 S.COIL
L11 6200007750 S.COIL
L12 6200009180 S.COIL
L13 6200001620 S.COIL
L16 6200010050 S.COIL
L18 6200009170 S.COIL
L19 6200009150 S.COIL
L21 6200009150 S.COIL
L22 6200009160 S.COIL
L25 6200009460 S.COIL
L26 6200008390 S.COIL
L27 6200002000 S.COIL
L28 6200002000 S.COIL
L29 6200004660 S.COIL
L31 6200007750 S.COIL
L32 6200010390 S.COIL
L33 6200004480 S.COIL
L35 6200003540 S.COIL
6 - 2
DESCRIPTION
1SS375-TL
A
UM9401F only
B
XB15A407 only
HVC375BTRF
UM9401F
MA77 (TX)
MA2S728-(TX)
HVC375BTRF
HVC350BTRF
HVC350BTRF
1SS375-TL
B
1SS375-TL only
MA77 (TX)
MA77 (TX)
HVC376BTRF
1SV239 (TPH3)
MA2S111-(TX)
HVC362TRF
DSA3A1
DA221 TL
MA2S111-(TX)
MA2S111-(TX)
MA2S728-(TX)
MA2S111-(TX)
HVC376BTRF
HVC376BTRF
HVC376BTRF
MA2S111-(TX)
DAN222TL
DAP222 TL
DAP222 TL
MA2S111-(TX)
MA2S111-(TX)
A
1SV307 (TPH3) only
DA221 TL
MA2S111-(TX)
1SS375-TL
FL-335 (46.350 MHz)
ALFYM450F=K
NFE31PT152Z1E9L (NFM60R20T152)
NFE31PT152Z1E9L (NFM60R20T152)
NFE31PT152Z1E9L (NFM60R20T152)
B
only
CR-740 (15.300 MHz)
AS080547-47N
AS080547-47N
AS080547-47N
0.50-2.0-6TL
FHW1210HC 1R0JGT
ELJRE 39NJ 39N
LQW2BHN68NJ01L (LQN21A 68NJ04)
LQW2BHN68NJ01L (LQN21A 68NJ04)
LQW2BHN56NJ01L (LQN21A 56NJ04)
MLF1608A 1R8K-T
LQW2BHN56NJ01L (LQN21A 56NJ04)
ELJRE R10J-F3
ELJFC 1R0K-F
AS080547-47N
A
ELJRE 47NJ-F2 only
ELJRE 82NJ-F3
ELJRE 82NJ-F3
ELJRE 68NJ-F3
0.25-1.9-7TL 67N
0.25-1.9-9TL
NL 252018T-3R3J
NL 252018T-3R3J
MLF1608A 1R8K-T
LQW2BHN56NJ01L (LQN21A 56NJ04)
ELJRE 33NJ-F3
MLF1608D R82K-T
MLF1608D R22K-T
S.=Surface mount
