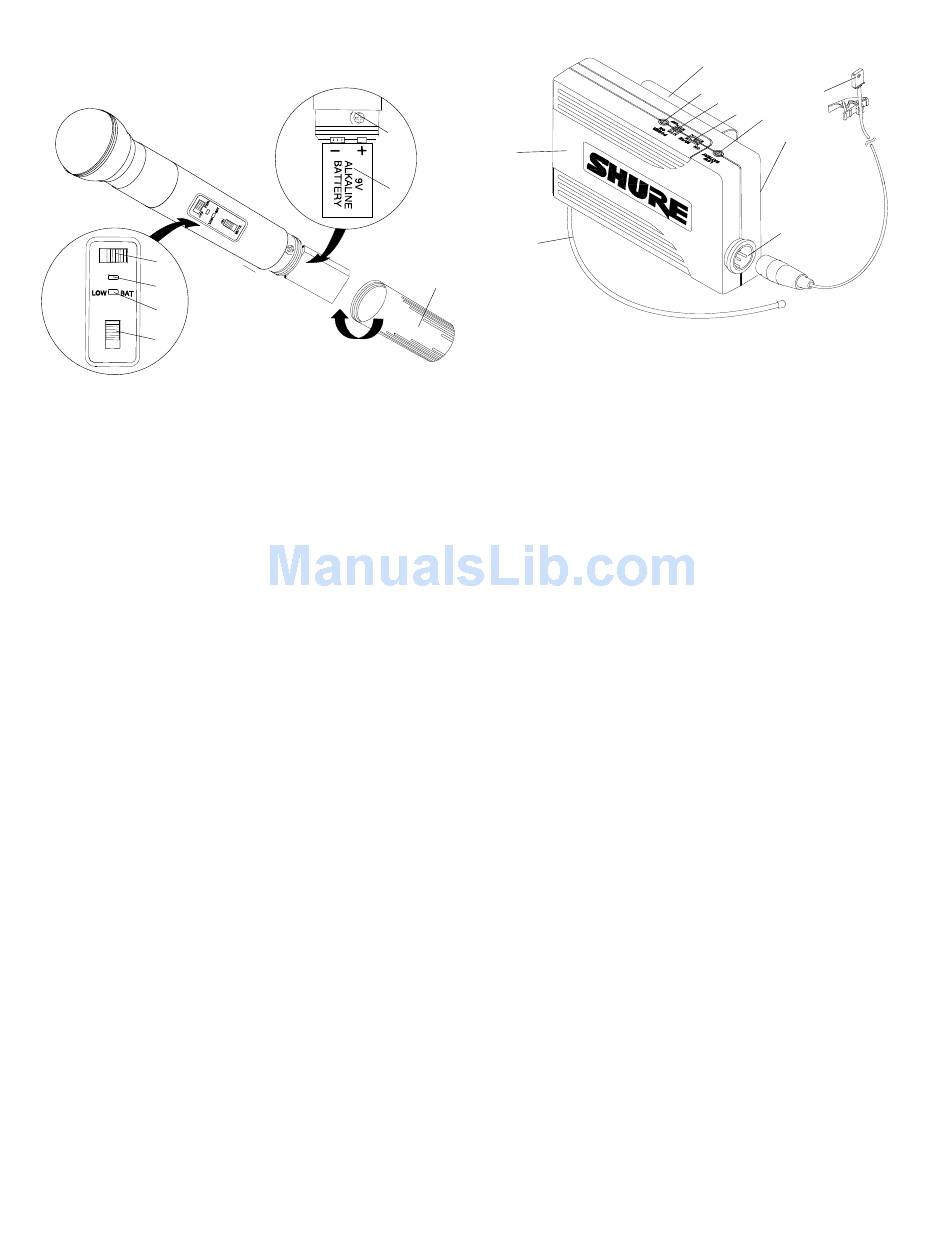

T2 Handheld Microphone Transmitter (Figure 2)
1
OFF PWR
2
3
ON
4
MUTE
FIGURE 2
1
POWER ON/OFF Switch.
2
POWER Indicator.
3
LOW BATTERY Indicator. Red light glows when you
have one hour or less of useful operating time; when this
light glows, change the battery.
4
MIC ON/MUTE Switch. Lets you turn the microphone au-
dio on and off (muting the microphone).
5
Audio Gain Control. Provides audio level adjustment to
accomodate different sound sources.
6
9V Alkaline Battery (shown installed). Provides power
to the microphone-transmitter. Typical battery life is 18
hours.
7
Battery Cover. Unscrews for access to the 9V alkaline
battery and gain control.
T1 Body-Pack Transmitter (Figure 3)
5
1
6
2
7
1
Battery Compartment.
2
Antenna. For best operation, the antenna must hang ver-
tically, and should not be coiled or bundled.
3
Belt Clip.
4
POWER Indicator.
5
POWER ON/OFF Switch.
6
Audio ON/MUTE Switch. Mutes the transmitter to pre-
vent unwanted sounds from being picked up by the receiv-
er without turning the transmitter off.
7
LOW BATTERY Indicator. When this red light is glowing,
you have one hour or less of useful operating time; change
the battery.
8
Audio Gain Control. Provides audio level adjustment to
accommodate different sound sources (e.g., speaking or
playing an instrument). The factory setting is at mid-point.
A small screwdriver is supplied to make adjustments.
9
Microphone Input Connector. 4-Pin miniature connector
provides connection to a variety of lavalier and headset mi-
crophone cables, and the Shure WA302 instrument adapt-
er cable.
10
Lavalier Microphone. Condenser lavalier microphone
supplied with a mount that clips onto a tie, lapel, or acoustic
instrument.
2
English –
3
4
10
5
6
7
8
9
FIGURE 3
