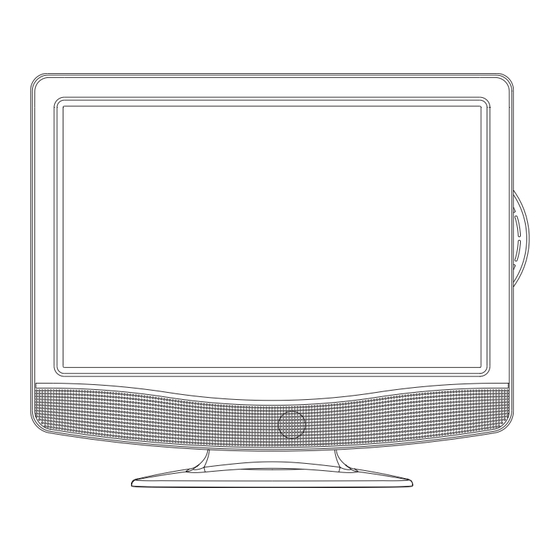

- Page 1 17” LCD TELEVISION WITH INTEGRATED DVD PLAYER OWNER’S MANUAL...
-
Page 2: Safety Precautions
SAfETY PRECAUTIONS CAUTION The lightning flash with an arrowhead symbol, within the equilateral triangle, is intended to alert the user RISK Of ELECTRIC SHOCK to the presence of uninsulated "dangerous voltage" DO NOT OPEN within the product's enclosure that may be of sufficient magnitude to cause an electric shock. -
Page 3: Important Safety Precautions
IMPORTANT SAfETY INSTRUCTIONS MAINS PLUG UNITS SUPPLIED WITH MOULDED MAINS PLUG 1. If the mains plug fitted to the AC cord supplied is not suitable for your mains outlet it may be necessary to cut it off. Carefully dispose of the severed plug. Under no circumstances must it be inserted into a mains socket, otherwise a dangerous electric shock could result. -
Page 4: Table Of Contents
TABLE Of CONTENTS SAFETY PRECAUTIONS ......... 2 CD/DVD OPERATION ......22 - 23 Playing a disc ............22 IMPORTANT SAFETY PRECAUTIONS ....3 Playing a picture file disc ........22 DISC FORMATS ..........5 Pausing playback (still mode) ........ 22 Stopping playback ..........22 INSTALLATION ...........6 Skipping to a different track ........ -
Page 5: Disc Formats
DISC fORMATS This unit can playback: audio CDs DVDs [8cm/12cm disc] [8cm/12cm disc] Compatible REGION MANAGEMENT INfORMATION Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVD discs. If the Region number printed on the DVD disc does not correspond to the Region number of this unit, this unit cannot play that disc. -
Page 6: Installation
INSTALLATION INSTALLING / REMOVING THE BASE STAND WARNING: The LCD Display is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. -
Page 7: Getting Started
GETTING STARTED USING THE REMOTE CONTROL • Point the remote control at the REMOTE SENSOR located on the unit. • When using this unit in a very brightly lit area, the infrared REMOTE CONTROL SENSOR may not work properly. • The recommended effective distance for using the remote control is about 16 feet (5 metres). -
Page 8: Lcd Tv
LCD TV 18 19 20 1) COMMON INTERfACE slot 8) Colour LCD Screen / I button 9) Disc Door Turns the unit on and off. Push gently to close the disc door. PLAY button button Press to start or resume playback of a disc. Push down to open the disc door. -
Page 9: Remote Control
REMOTE CONTROL 6) VOLUME + / – buttons Press to adjust the volume level. 7) CURSOR ( , , , ) buttons Allow you to highlight selection, adjust setting and confirm selection on the menu screen. 8) MIX button Press to select Teletext with a TV programme. button Fast reverse playback. - Page 10 REMOTE CONTROL STOP button Press to stop playing a disc. LIST button Press to display the channel list in TV/DTV mode. PLAY button Press to start and resume playback of a disc. GUIDE button Press to display the Electronic Programme Guide (EPG) in DTV mode.
-
Page 11: Connections
CONNECTIONS CONNECTING A TV ANTENNA/CABLE/SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system Note: For receiving over-the-air TV broadcasts, we recommend that you use an external fixed antenna. -
Page 12: Connecting To Devices With A Composite (Yellow Rca-Type) Video Output
CONNECTIONS CONNECTING TO DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE) VIDEO OUTPUT To connect to A/V devices such as a VCR, camcorder or video game system. - Connect to a VCR / Video Game System / Camcorder Connect the AUDIO / VIDEO cable (not included) as shown. Make sure you connect the cable from the other equipment (AUDIO and VIDEO OUT) to this unit (AUDIO and VIDEO IN). -
Page 13: Connecting A High Definition (Hd) Source (Yuv)
CONNECTIONS CONNECTING A HIGH-DEfINITION (HD) SOURCE (YUV) High-Definition (HD) Devices with component video output must be connected to the YUV input. Connect the component video cable and audio cable (not included) as shown. Make sure you connect the YUV Scart adaptor to this unit, then connect component video cable and audio cable from the other equipment (COMPONENT VIDEO OUT and AUDIO OUT) to this unit (SCART and AUDIO IN). -
Page 14: Using Headphones
CONNECTIONS USING HEADPHONES • Turn down the volume before connecting headphones to the unit, then adjust the volume to your desired level. • When headphones are connected, no sound will come from the front speakers. Note: • Avoid listening to sound at high levels for prolonged periods of time. -
Page 15: Tv / Dtv / Radio Setup
TV / DTV / RADIO SETUP TV SETTING (ONLY IN ATV OR DTV OR RADIO MODE) 1. Press the FUNCTION or TV/DTV button to select DTV/ TV mode; or press RADIO button to select DTV digital radio programmes. 2. Press the TV MENU button. 3. -
Page 16: Electronic Programme Guide (Epg) For Dtv
TV / DTV / RADIO SETUP ELECTRONIC PROGRAMME GUIDE (EPG) fOR DTV While watching a DTV programme, you can press the GUIDE button to display the Electronic Programme Guide (EPG) menu, and check for programme information. BBC ONE Breakfast Breakfast Animal 24:7 Homes Under the.. -
Page 17: Picture Menu
TV / DTV / RADIO SETUP PICTURE MENU 1. Press the TV MENU button. 2. Use the button to select the options (Picture Mode, Contrast, Brightness, Colour, Sharpness, Colour Temp), adjust them by using the button. 3. Press the TV MENU button to return to previous menu. 4. -
Page 18: Time Menu
TV / DTV/ RADIO SETUP TIME MENU 1. Press the TV MENU button. 2. Use the button to select the TIME. 3. Use the button to select the options (Clock, Sleep Timer, Time Zone), adjust them by using the button. 4. -
Page 19: Teletext
TELETEXT Teletext is an information system that displays text on your TV screen. Using the Teletext control buttons you can view pages of information that are listed in the teletext index. Please Note On Screen Display is not available in text mode. The contrast, brightness and colour cannot be changed but the volume control is still available. -
Page 20: Customizing The Dvd Function Settings
CUSTOMIzING THE DVD fUNCTION SETTINGS LANGUAGE SETUP 1. Press the SETUP button. 2. Use the button to select the option Language Setup, then press the button to move the highlight bar on OSD Language. (Note that Audio, Subtitle and DVD Menu can be activated by pressing the STOP button twice.) 3. -
Page 21: System Setup
CUSTOMIzING THE DVD fUNCTION SETTINGS SYSTEM SETUP 1. Press the SETUP button. 2. Use the button to select the System Setup option. 3. Press the button to highlight the Default. 4. Use the button to select the desired setup option. 5. -
Page 22: Cd/Dvd Operation
CD / DVD OPEARTION This owner’s manual explains the basic instructions of this unit. Some DVDs are produced to limit operation during playback. For example, many DVDs do not allow users to skip government warnings, or in some cases previews or other features. This is not a defect in the unit. Refer to the instruction notes of discs. “... -
Page 23: Fast Forward/Fast Reverse
CD / DVD OPEARTION fAST fORWARD / fAST REVERSE 1. Press the button when a disc is playing. • The disc begins a fast scan at two times normal (x2) speed. • Each time the button is pressed, the speed of the fast scan changes. 2. -
Page 24: Special Functions
SPECIAL fUNCTIONS DISPLAY While the disc is playing, press the DISPLAY button repeatedly to display information on operation status. LOCATING A SPECIfIC TITLE If a DVD contains title numbers, you can locate a specific title by directly selecting a title number. 1. -
Page 25: Repeat Playback
REPEAT PLAYBACK You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat, A-B repeat) REPEATING A CHAPTER (DVD) You can play the same chapter repeatedly. 1. While the disc is playing, press the REPEAT DISC button until the indicator displays on the screen. -
Page 26: Dvd Programmable Playback
DVD PROGRAMMABLE PLAYBACK PROGRAMMABLE MEMORY The two types of programmed playback provided by this unit is title/ chapter programmed playback. TITLE/CHAPTER PROGRAMMED PLAYBACK 1. Press the MEMORY button in PLAY mode. A screen will be shown as right. Select Play Clear 2. -
Page 27: Troubleshooting
TROUBLESHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) No power. • Check that the AC power cord is connected. • The unit is not turned on. The remote does not • Remove any obstacles between the remote and the unit. function. • Use the remote near the unit. •... - Page 28 TROUBLESHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) Function key does not • Under the influence of electrostatic phenomenon, the product may malfunction and respond correctly. require user to power reset. • Unplug and re-plug the AC power cord. No sound is output from •...
