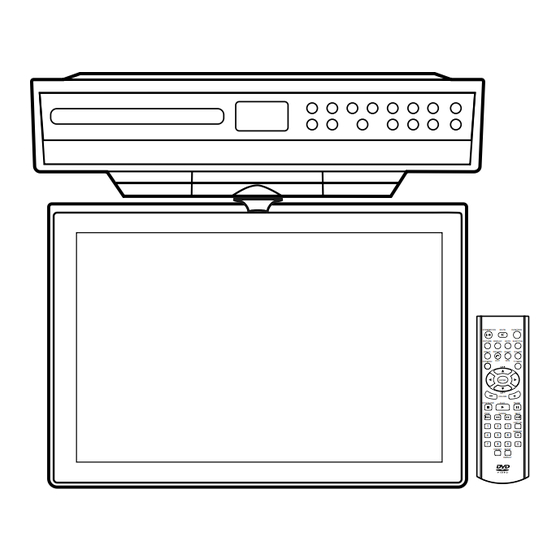

Venturer KLV39120 Owner's Manual

12” kitchen lcd tv / dvd combo
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Venturer KLV39120

Summary of Contents for Venturer KLV39120

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS The following marks and symbols are located on back of the unit. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 3 SAFETY PRECAUTIONS FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Safety Precautions ... 1 - 2 Important Safety Instructions ... 3 Table of Contents ... 4 Disc Formats ... 5 Accessories ... 6 Remote Control ... 6 Control Reference Guide ... 7 - 9 Mounting Instructions ... 10-11 Connections ...

  • Page 6: Disc Formats

    The unit can play DVDs [8cm/12cm disc] Audio CDs [8cm/12cm disc] Region Management Information Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number of this unit, this unit cannot play that disc.

  • Page 7: Accessories

    Please Check and Identify the Included Accessories. Remote control ... x 1 AAA 1.5V battery ... x 2 Mounting template ... x 1 1.06" (27mm) spacers ... x 4 .57" (14.4mm) spacers ... x 4 .32" (8.2mm) spacers ... x 4 #M 5 x 69 mm screws ...

  • Page 8: Control Reference Guide

    CONTROL REFERENCE GUIDE Remote Control STANDBY/ON MUTE FUNCTION PICTURE DISPLAY GOTO SUBTITLE RETURN AUDIO ANGLE EXIT DVD MENU ENTER VOLUME STOP/BAND PLAY PREV TUNING FORMAT SETUP REPEAT 1) MUTE Press to turn off the sound. 2) STANDBY/ON Button Turns on the unit and puts it in standby mode.
  • Page 9 CONTROL REFERENCE GUIDE Remote Control STANDBY/ON MUTE FUNCTION PICTURE DISPLAY GOTO SUBTITLE RETURN AUDIO SOUND ANGLE EXIT DVD MENU TV MENU ENTER VOLUME STOP/BAND PLAY PAUSE PREV TUNING NEXT LAST CH MEMORY FORMAT SETUP REPEAT FUNCTION Button Use to select DVD, TV or RADIO mode. GOTO Button Goes directly to a location on a DVD/CD.
  • Page 10 CONTROL REFERENCE GUIDE Unit Disc Tray Opens or closes the tray by pressing OPEN/ CLOSE button. Place a disc on the disc tray, label side up. Display Window Displays system information. POWER ON Indicators DVD : DVD indicator TV : TV indicator RADIO : RADIO indicator Remote Sensor...

  • Page 11: Mounting Instructions

    MOUNTING INSTRUCTIONS TOOLS NEEDED: 1) Electric drill with 1/4” bit; 2) Phillips-head (cross style) screwdriver. STEP 1 If your cabinet does NOT have an overhang: a) Place the Mounting Template in the desired location inside or underneath the cabinet (whichever has less obstructions, and will be easier for you to reach to drill holes), flush with the front edge of the cabinet and tape it down.

  • Page 12: Mounting Instructions

    MOUNTING INSTRUCTIONS (Continued from previous page) c) Insert the four selected screws through each hole from the inside of the cabinet going down (see Figure 5). Figure 5 d) Hold each screw head down and push the unit and spacers onto the screws, then hold the unit up until spacers are firmly against the bottom of the cabinet (and fully nested within each other if you are using multiple spacers...

  • Page 13: Connections

    CONNECTIONS Connecting the TV Antenna Connect a TV antenna or CATV cable or Satellite system to the TV antenna terminal. TV antenna To the TV ANT IN terminal Connecting the Unit to a TV or other Video Equipment Use the Video cable (not supplied). Connect the VIDEO OUT on the rear of the unit to the VIDEO IN on your TV or other video equipment.

  • Page 14: Plugging In The Unit

    Plugging in the Unit Plug the AC power cord into the wall outlet a) Before plugging in the power cord, make sure the voltage of the unit matches your local voltage. b) Plug the power cord directly into the nearest wall outlet, and wrap the remaining cord around the cord storage knob at the rear of the unit.

  • Page 15: Unit Operation

    Turning the Unit On While the power cord is connected and the unit is on standby, power will be consumed and only the clock display will flash. • Press the ON/OFF button to turn the unit on and the DVD indicator lights up. After a short period of time, “DVD”...

  • Page 16: Setting The Clock

    SETTING THE CLOCK To adjust the clock, the unit must be in standby mode. To enter standby mode, make sure that the unit is plugged in, but not turned on. • Check that the rated voltage of the unit matches your local voltage. 1.

  • Page 17: Playing A Disc

    This owner’s manual explains the basic instructions of this unit. Some DVDs are produced in a manner that allows specific or limited operation during playback. Such as, the unit may not respond to all operating commands. This is not a defect in the unit. Refer to the instruction notes of discs.

  • Page 18: Angle Selection

    Angle Selection Some DVDs contain scenes which have been shot from a number of different angles. For these discs, the same scene can be viewed from each of these different angles. 1. While you are playing a DVD with different angles recorded, press the ANGLE button to view the num- ber of current angles available.

  • Page 19: Playing A Disc 1

    Display Function While the disc is playing, press the DISPLAY button on the remote control repeatedly to display information on operation status. Time: The elapsed time from the beginning of the title which is currently playing. Title/Chapter: The number of the title/chapter currently playing and total titles/chapter on disc.

  • Page 20: Setting Favorite Bookmark During Playback

    SPECIAL FUNCTION Setting Favorite Bookmarks During Playback While a disc is playing, you can mark the desired scene. 1. Press the GOTO button until Bookmark1 appears. 2. Press the ENTER button to mark the desired scene and the time of this point will be shown in Bookmark1.

  • Page 21: Dvd Programmable Memory

    DVD PROGRAMMABLE MEMORY DVD Programmed Playback You can combine your favorite titles/chapters and play them in the order you determine. 1. Press the MEMORY button on the remote control. 2. Use the button to select the title you want, then press the ENTER button on the remote control to confirm.

  • Page 22: Play Modes For Cd Or Jpeg Disc

    PLAY MODES FOR CD OR JPEG DISC When playing CD/JPEG discs, you can modify the Play Modes through the Toolkit which appears on the right in the window. Press the and the button on the remote control to select files/tracks or play mode items. Then press the ENTER button.

  • Page 23: Customizing The Function Settings

    CUSTOMIZING THE FUNCTION SETTINGS Language OSD Language 1. Press the SETUP button in stop mode. 2. Press the button to select OSD Language. 3. Press the button. Use the then press the ENTER button. The screen will change to your selected language immediately. 4.

  • Page 24: Default

    CUSTOMIZING THE FUNCTION SETTINGS Notes: • The displayable picture size is preset on the DVD. Therefore, the playback picture of some DVDs may not conform to the picture size you select. • When you play DVDs recorded in the 4:3 picture size only, the playback picture always appears in the 4:3 picture size regardless of the TV Shape setting.

  • Page 25: Using The Tv

    Connect a TV antenna or CATV cable or Satellite system to the TV antenna terminal before searching TV channels Searching for TV channels automatically (Only appears to the first time Power ON) 1. Connect the TV antenna. 2. Connect the AC power cord. 3.

  • Page 26: Tv Setup

    Picture Setting 1. Press the TV MENU button. 2. Use the button to select the options (Picture Mode / Contrast / Brightness / Sharpness / Tint / Color). 3. Use the button to make adjustment. The screen will change to your selected mode immediately. Press the TV MENU button to return to the previous menu.
  • Page 27 TV Timer Setting 1. Press the TV MENU button. 2. Use the button to select TIMER SETTING. 3. Use the button to select the options (OSD Duration / Time Zone / Day Saving Time). 4. Use the button to make adjustment. Press the TV MENU button to return to the previous menu.
  • Page 28 TV Channel Setting 1. Press the TV MENU button. 2. Use the button to select TV CHANNEL SETTING. 3. Use the button to select the options (Antenna / Auto Scan / Auto Scan Add CH / Channel Skip / Channel No. / Channel Label). 4.

  • Page 29: Listening To The Radio

    LISTENING TO THE RADIO Tuning in to a Station Manually 1. Press the DVD/TV/RADIO button (the FUNCTION button on the remote) until the radio frequency appears on the front panel display. 2. Press the / BAND (AM/FM) button to select AM or FM. 3.

  • Page 30: Troubleshooting Guide

    TROUBLESHOOTING GUIDE SYMPTOM CAUSE (AND REMEDY) No power. • Ensure the AC power cord is connected. • The unit is not turned on. The remote does • Remove any obstacles between the remote and the unit. not function. • Use the remote near the unit. •...

  • Page 31: Maintenance

    Cleaning the Disc A defective or soiled disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges. • Do NOT touch the surface of the unlabeled side of the disc. •...

  • Page 32: Limited Warranty

    RETURN YOUR UNIT TO VENTURER WITHOUT PRIOR AUTHORIZATION. New or remanufactured replacements for defective parts or products will be used for repairs by VENTURER at its designated Service Center for ninety (90) days from the effective warranty date. Such replacement parts or products are warranted for an additional ninety (90) days from the date of repair or replacement.
