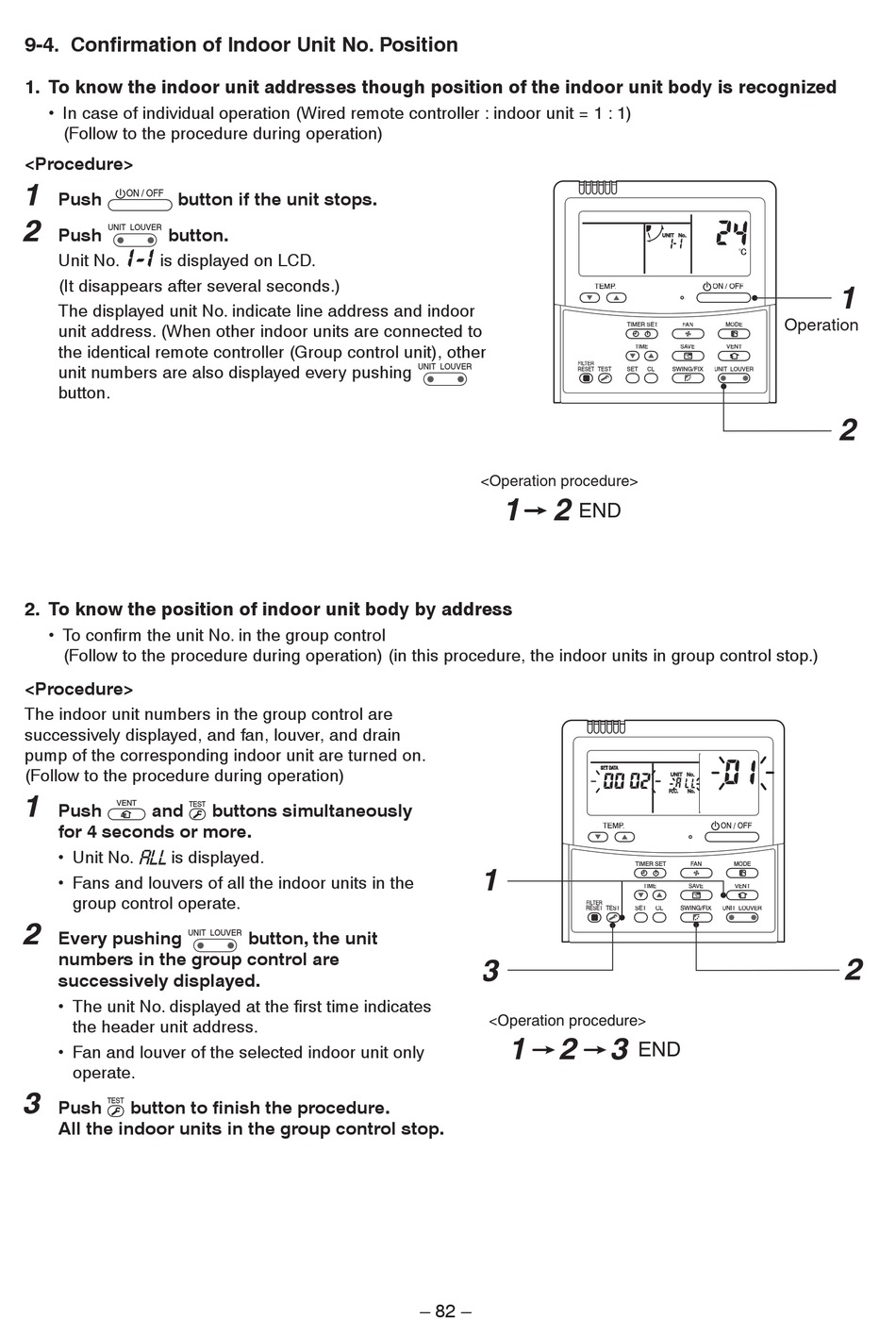

9-4. Confirmation of Indoor Unit No. Position

1. To know the indoor unit addresses though position of the indoor unit body is recognized
• In case of individual operation (Wired remote controller : indoor unit = 1 : 1)
(Follow to the procedure during operation)
<Procedure>
1
Push button if the unit stops.
ON / OFF
2
Push UNIT LOUVER button.
1-1 1-1 1-1
1-1 1-1
Unit No. is displayed on LCD.
(It disappears after several seconds.)
The displayed unit No. indicate line address and indoor
unit address. (When other indoor units are connected to
the identical remote controller (Group control unit), other
unit numbers are also displayed every pushing
button.
2. To know the position of indoor unit body by address
• To confirm the unit No. in the group control
(Follow to the procedure during operation) (in this procedure, the indoor units in group control stop.)
<Procedure>
The indoor unit numbers in the group control are
successively displayed, and fan, louver, and drain
pump of the corresponding indoor unit are turned on.
(Follow to the procedure during operation)
1
Push VENT and
TEST
for 4 seconds or more.
• Unit No. is displayed.
• Fans and louvers of all the indoor units in the
group control operate.
2
Every pushing
UNIT LOUVER
numbers in the group control are
successively displayed.
• The unit No. displayed at the first time indicates
the header unit address.
• Fan and louver of the selected indoor unit only
operate.
3
Push button to finish the procedure.
TEST
All the indoor units in the group control stop.
buttons simultaneously
button, the unit
FILTER L L
UNIT LOUVER
RESET
<Operation procedure>
1 2
END
1
FILTER
RESET
3
<Operation procedure>
1 2
– 82 –
TEMP. ON / OFF
TIMER SET FAN MODE
TIME SAVE A A VENT
TEST SET CL SWING/FIX UNIT LOUVER T
TEMP. P P ON / OFF
TIMER SET FAN MODE
TIME SAVE A A VENT
L L
TEST SET CL SWING/FIX UNIT LOUVER T
3
END
1
Operation
2
2
