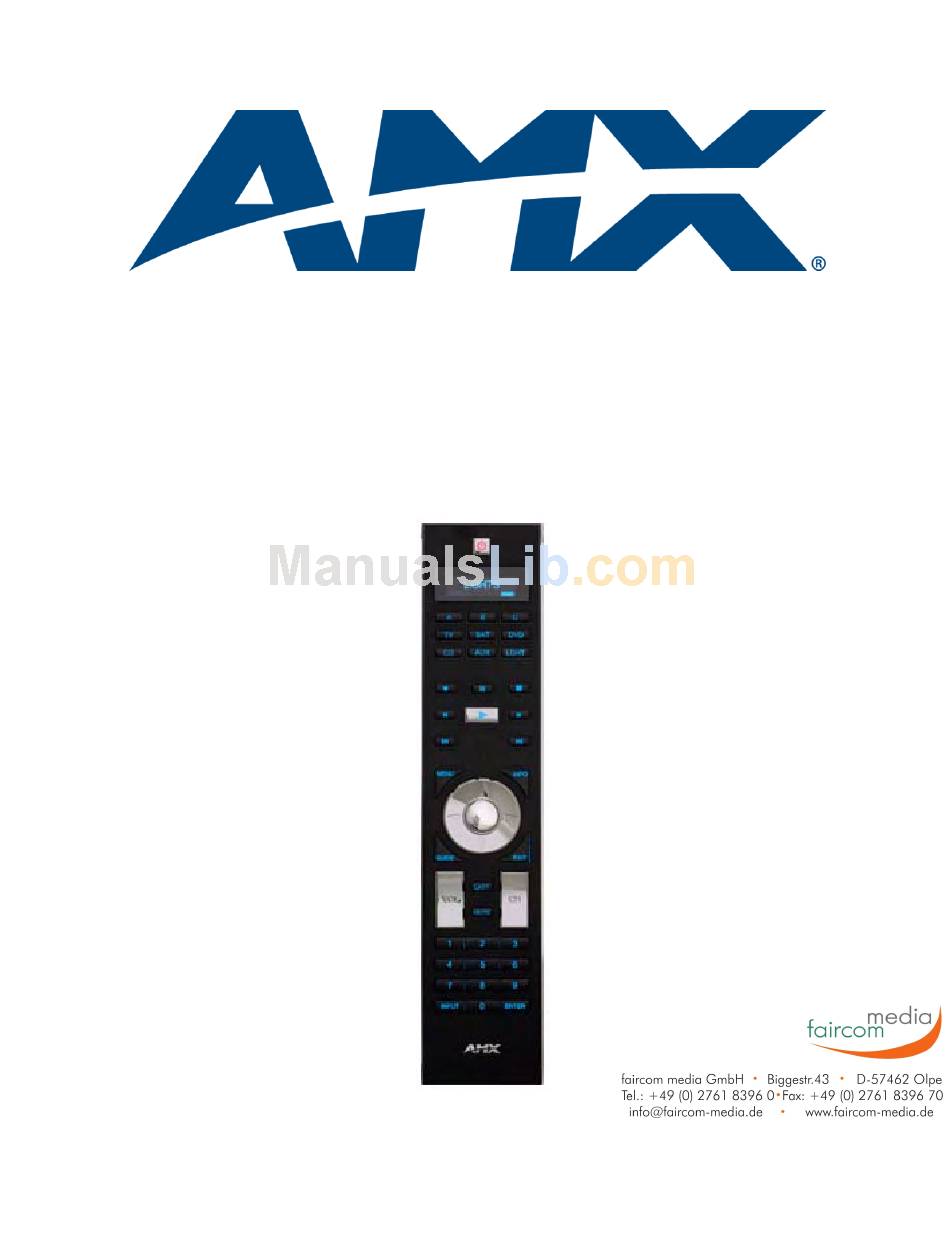

Operation/Reference Guide
Mio Modero
R-3
®
Remote Control Device
M i o R e m o t e C on t r ol s
L a s t U p d a t e d : 1 / 2 9 / 2 0 0 8

Advertisement

Table of Contents
loading

Related Manuals for AMX Mio Modero R-3

Summary of Contents for AMX Mio Modero R-3

  • Page 1 Operation/Reference Guide Mio Modero ® Remote Control Device M i o R e m o t e C on t r ol s L a s t U p d a t e d : 1 / 2 9 / 2 0 0 8...
  • Page 2 RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Dealer for a third party.

  • Page 3: Table Of Contents

    The Mio Modero® R-3 ... 1 Touch And Tilt Sensor ... 2 Specifications ... 2 FCC Compliance ... 3 Mio Modero R-3 Setup ...5 Inserting or Replacing the Lithium-ion Battery for the Mio R-3 ... 5 Battery Low Indicator ... 5 Installing Custom Buttons ...
  • Page 4 Table of Contents Mio Modero R-3 Remote...

  • Page 5: Overview

    Selecting a macro will run predefined events, which might not be associated with sources listed, then return the device to its previous mode. You need VisualArchitect and KeypadBuilder to properly program this device. The application and documentation are available from www.amx.com. FIG. 1 The Mio R-3 Device Mio Modero R-3 Remote ®...

  • Page 6: Touch And Tilt Sensor

    • Programming Cable - a 3 wire, 2.5 mm stereo jack (FG10-817) • Custom engraving (FG147-01) • Mio-RCC Kit (FG147-03K) • Mio-RCC Charging Base (FG147-02) • NXR-ZGW (FG5791-01) • NXR-ZRP (FG5791-02) • Spanish • Other languages supported by Glyphs Mio Modero R-3 Remote...

  • Page 7: Fcc Compliance

    This device has been evaluated and found to be compliant with the FCC Rules for RF Exposure when the device is operated at a minimum separation distance of 2 cm. from the user and nearby persons. Operation of this device at closer distances should be avoided. Mio Modero R-3 Remote Overview...
  • Page 8 Overview Mio Modero R-3 Remote...

  • Page 9: Mio Modero R-3 Setup

    Mio Modero R-3 Setup Inserting or Replacing the Lithium-ion Battery for the Mio The Mio Modero R-3 comes with a rechargeable Lithium-Ion battery that needs to be installed before use. To install your Lithium-Ion battery into the device: 1. Flip and turn the Mio R-3 device so that the buttons are facing away from you and the device is upside down.

  • Page 10: Installing Custom Buttons

    Mio Modero R-3 Setup Installing Custom Buttons 1. Flip and turn the Mio R-3 device so that the buttons are facing away from you and the device is upside down. 2. Holding the Mio R-3 in both hands, place your thumbs on the battery door and push up to slide the battery door free.

  • Page 11: Setup Mode

    Press button 2 on the remote to change the sleep timeout from the default. Each time 2 is pressed, the sleep timeout raises incrementally. The predetermined sleep timeouts are 3,6,9, and 12 seconds. The display indicates the selected sleep timeout. 30 seconds after selecting the mode, the menu returns to Setup mode. Mio Modero R-3 Remote Setup Mode...

  • Page 12: Download Mode

    Pressing button 7 will change the brightness of the Power LED from Low, to Med and then High. Pressing the button again toggles to the new mode. 30 seconds after selecting the mode, the menu returns to Setup mode. Mio Modero R-3 Remote...

  • Page 13: Led Sleep Mode Brightness

    To connect to a particular PAN ID, pressing the center button on the scroll wheel will initiate the remote to connect to a network. If no networks were found, the display will read SCAN FAIL before returning to Setup mode. To exit the Site Survey, press the Exit button. Mio Modero R-3 Remote...
  • Page 14 Setup Mode Mio Modero R-3 Remote...

  • Page 15: Programming The Mio R-3

    The programming jack is used for communication between the device and KeypadBuilder. The programming jack uses a three-wire, 2.5mm stereo jack, and you may order the programming cable (FG10-817) from AMX if you do not currently possess one. The Mio R-3 communicates at a 115200 baud rate.

  • Page 16: Updating Mio R-3 Firmware

    If you are using the Mio R-3 in conjunction with other ZigBee-enabled devices, such as the Mio R-4 and the NXA-ZGW wireless gateway, you should update the firmware to all of the ZigBee devices at the same time. Mio Modero R-3 Remote...

  • Page 17: Channel Codes

    PAUSE e FFW t REW i S.FFD y S.REV u REC p Power Symbol ENTER VOL + VOL - MUTE INPUT MENU Mio Modero R-3 Remote Dev 2 Dev 3 Dev 4 Dev 5 Programming The Mio R-3 Dev 6...
  • Page 18 INFO LAST TV (Device 1) SAT (Device 2) DVD (Device CD (Device 4) AUX (Device LGHT (Device A (Macro 1) B (Macro 2) C (Macro 3) Dev 2 Dev 3 Dev 4 Dev 5 Dev 6 Mio Modero R-3 Remote...

  • Page 19: Serial Commands

    ^CFG # Enable or Disable Debug Mode Mio Modero R-3 Remote This command can be used to customize the brightness of the red LEDs that backlight the power button if the predefined brightnesses in Setup Mode are not fine enough.
  • Page 20 Style 1 displays a linear bargraph. Syntax: '^GLY-<variable text address range>,<glyph number>'" Example: SEND_COMMAND Panel,"'^GLY-1,10'" Set a glyph with index 10 to the Mio-R3 display. Note: This only works if a glyph file has been loaded from KeypadBuilder. Mio Modero R-3 Remote...
  • Page 21 NUMD Sets the number of devices to be controlled by the remote REBOOT Reboots the remote Mio Modero R-3 Remote Syntax: IRMODE # Variables: • <mode> = 38 - IR only, 38KHz 455 - IR only, 455KHz...
  • Page 22 Force the keypad to go to sleep. Syntax: "'@SSL-<new text>'" Variables: • new text = 1 - 20 ASCII characters. Default string is SLEEP. Example: SEND_COMMAND Panel,"'@SSL-KeyPad Sleep'" Sends the string " KeyPad Sleep'" to the master at time of sleep. Mio Modero R-3 Remote...
  • Page 23 ^TXT Assign a text string to those buttons with a defined address range ^UNI Set Unicode text Mio Modero R-3 Remote Syntax: "'@SST-<new text>'" Variables: • new text = 1 - 20 ASCII characters. Default string is STARTUP. Example: SEND_COMMANDPanel,"'@SST-Panel Start'"...
  • Page 24 Erases the font from the flash. NOTE: These commands are intended for serial use only. These commands cannot be issued when the device’s Setup Page is open. Syntax: ZIGC <channel> (Decimal) Example: ZIGC 26 Syntax: ZIGP <panId> (Decimal) Example: ZIGP 123A Mio Modero R-3 Remote...

  • Page 25: Send_Commands

    Sets a line of the display to a menu line Mio Modero R-3 Remote This command can be used to customize the brightness of the red LEDs that backlight the power button if the predefined brightnesses in Setup Mode are not fine enough.
  • Page 26 Style 1 displays a linear bargraph. Syntax: '^GLY-<variable text address range>, <glyph number>'" Example: SEND_COMMAND Panel,"'^GLY-1,10'" Set a glyph with index 10 to the Mio-R3 display. Note: This only works if a glyph file has been loaded from KeypadBuilder. Mio Modero R-3 Remote...
  • Page 27 Sets the ICSP Device Number ^SHO Show or hide text with a set variable text range Mio Modero R-3 Remote Syntax: '^JST-<variable text address range>,<new text alignment>'" Variable: • variable text address range = 1; the address range corresponds to the dynamic line number.
  • Page 28 Syntax: "'@SWK-<new text>'" Variables: • new text = 1 - 20 ASCII characters. Default string is WAKEUP. Example: SEND_COMMAND Panel,"'@SWK-Wake KeyPad" Sends the string " Wake KeyPad " to the master at time of wake up. Mio Modero R-3 Remote...
  • Page 29 Force the keypad to turn backlight on ZIGC Sets the ZigBee Channel ZIGP Sets the ZigBee PAN ID Mio Modero R-3 Remote Sets non-unicode text. Syntax: SEND_COMMAND <DEV>,"'^TXT-<vt addr range>,<button states range>,<new text>'" Variables: • variable text address range = 1.
  • Page 30 Programming The Mio R-3 Mio Modero R-3 Remote...

  • Page 31: Mio Remote Charging Base

    The Mio remotes are complemented with a Mio-RCC charging base (FG147-02). FIG. 6 Mio-RCC Charging Base Specifications (Bottom View) (Top View) FIG. 7 Mio Remote Charging Base (Top and Bottom view) Mio Modero R-3 Remote Mio Remote Charging Base Rubber feet Angle barrel power connector Charging contacts...

  • Page 32: Charging The Mio Remote With Charging Base

    Mio-RCC Remote Charging Kit (FG147-03K) with Base (FG147-02) Specifications Dimensions (HWD) Weight Other AMX Equipment: • Mio R-1 (FG147) Charging The Mio Remote with Charging Base The Mio remotes receive power for charging from a charging base. 1. Connect the terminal end of the power supply to the bottom external power port on the Mio remote charging base.
  • Page 33 Mio Remote Charging Base Mio Modero R-3 Remote...
  • Page 34 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
