O P T I O N A L S O L A R P A N E L C O N N E C T I O N

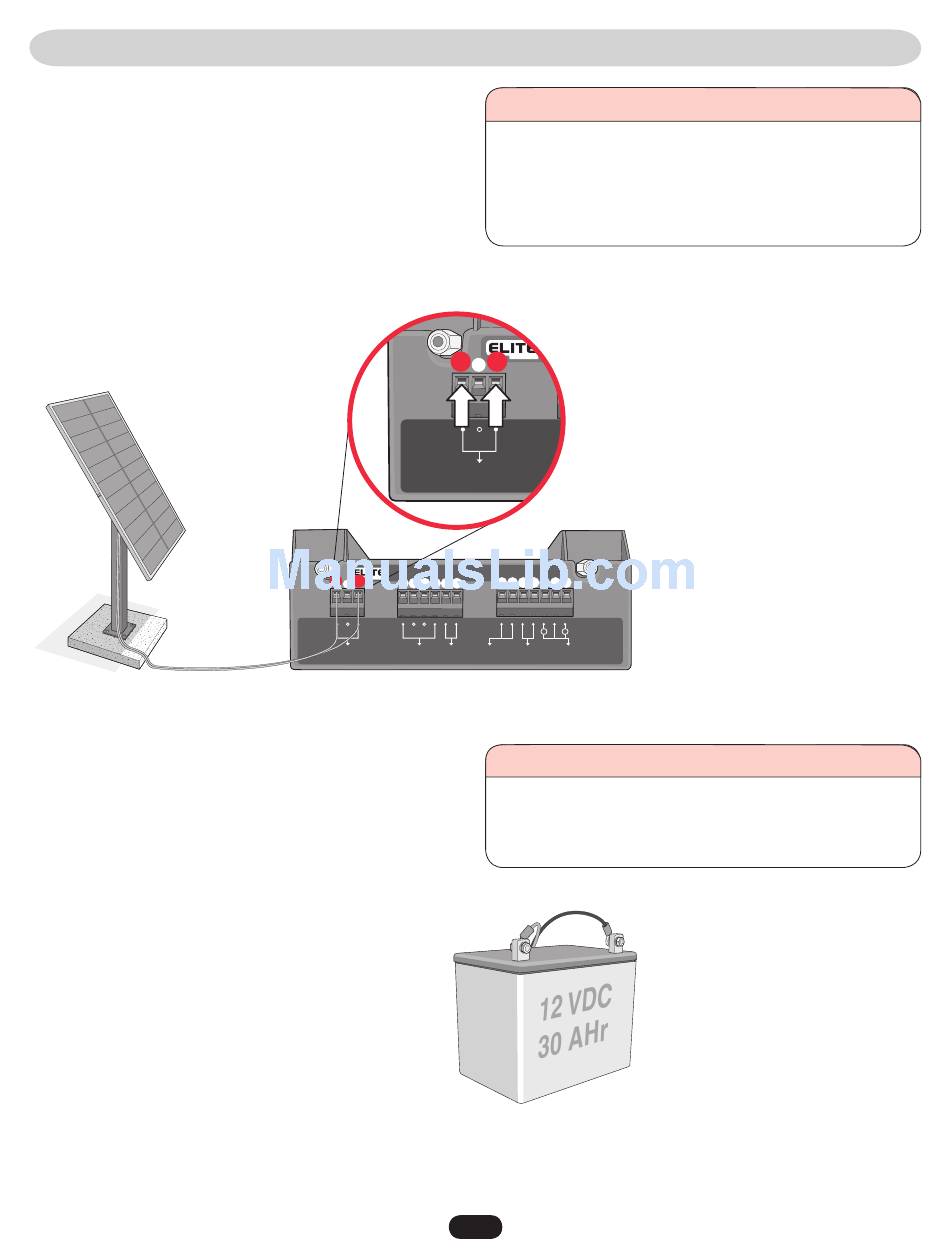

If you use Chamberlain Elite's optional solar panel (Solar3).
Connect the two wires from the solar panel to the power input
connection on the surge suppressor (Polarity does not matter).
Sunlight will energize the batteries through the solar panel. This
solar panel will charge up to 1000 Mamp/Hr in optimum
conditions & 300 Mamp/Hr in light overcast conditions. For
further details about Chamberlain Elite's solar panel, consult the
"Solar 3" Installation sheet that is included with the solar panel.
Do not use solar panel and plug-in transformer at the same time.
Solar Panel
(SOLAR3)
No Stand
Polarity Does
Not Matter
Energizing this operator with solar power only needs the radio
receiver to operate the gate. The only recommended external
devices other than radio receivers are dry-contact command
devices which do not consume any current like key switches.
Using other devices that consume high current such as
telephone access, magnetic locks or loop detectors will cause
excess drainage of the battery and eventually completely
drain the battery.
For more details, contact your local dealer.
To AVOID damaging 25 Vdc plug-in transformer, it MUST be
enclosed in a suitable weatherproof enclosure and provided
with proper weatherproof fixtures.
To AVOID damaging control board, DO NOT use the solar panel
and the plug-in transformer at the same time.
DC DC
–
POWER INPUT
25 VDC
®
®
ROBO SURGE SUPPRESSOR
DC DC ACCESS SYSTEMS INC ACCESS SYSTEMS INC ACCESS SYSTEMS INC
7
1 – – 4 5 6
–
POWER INPUT SAFETY SAFETY EXIT EXIT FIRE DEPT FIRE DEPT
25 VDC LOOP LOOP LOOP LOOP KEY SWITCH KEY SWITCH
Chamberlain Elite recommends using a larger battery
(12 VDC, 30 AHr) (Part # A12330SGLPK) in this operator when
using the optional solar panel.
13
CAUTION
®
®
ACCESS SYSTEMS INC ACCESS SYSTEMS INC ACCESS SYSTEMS INC
P/N Q412 P/N Q412
PATENT PENDING PATENT PENDING
8 9 10 11 12 13
– – + +
CLASS 2 CLASS 2
SUPPLY SUPPLY
STRIKE OPEN STRIKE OPEN RADIO RADIO
PUSH BUTTON PUSH BUTTON RECEIVER RECEIVER
CAUTION
