User's Guide

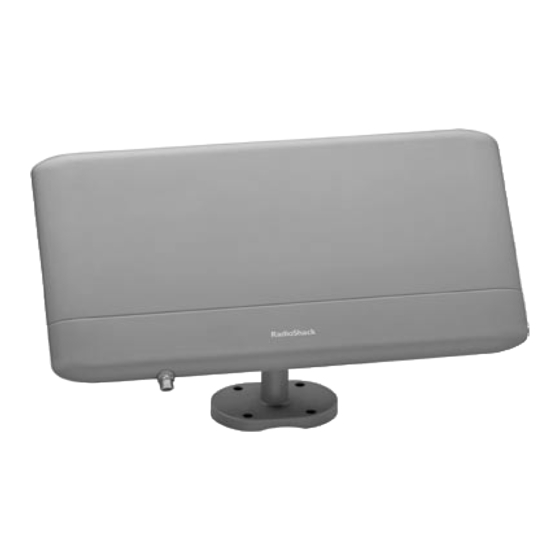

Amplified HDTV Antenna
Outdoor
Thank you for purchasing your Outdoor Amplified HDTV
Antenna from RadioShack. Please read this user's guide before
installing, setting up, and using your new antenna.
w
WARNING: INSTALLATION OF THIS PRODUCT
NEAR POWERLINES IS DANGEROUS. FOR YOUR
SAFETY, FOLLOW THE INSTALLATION DIRECTIONS.
Patent pending
15-257

Advertisement

loading

Related Manuals for Radio Shack 15-257

Summary of Contents for Radio Shack 15-257

  • Page 1 User’s Guide 15-257 Amplified HDTV Antenna Outdoor Patent pending Thank you for purchasing your Outdoor Amplified HDTV Antenna from RadioShack. Please read this user’s guide before installing, setting up, and using your new antenna. WARNING: INSTALLATION OF THIS PRODUCT NEAR POWERLINES IS DANGEROUS. FOR YOUR...

  • Page 2: Package Contents

    Package contents • Antenna • Power Injector • 12-ft Coax Cable • AC Adapter • Multi-directional Base • 4 Screws with Anchors • 4 Spring Washers • 4 Wing Nuts • 2 U-Bolts • User’s Guide • Quick Start Assemble the antenna Your antenna includes a multi-directional base that lets you assemble and position your antenna for optimum reception.
  • Page 3 Ideal Installation Locations In the attic On a grille Under eaves On railings On an outdoor wall To a Wall 1. Using the multi-directional base as a template, mark the four mounting screw locations on the wall. 2. Drill a hole in the wall at each marked location.
  • Page 4 Power the Antenna 1. Connect the other end of 12-ft coax cable from the antenna to the power injector’s ANT terminal. To prevent rain water dripping down the coax cable and damaging indoor electronics, create a “drip loop,” shown below, before the cable enters the house.

  • Page 5: Specifications

    4. Adjust the antenna to a position that provides the best reception. Notes: • For HD reception, you need a TV with an ATSC HDTV tuner, an HDTV receiver, or digital Set Top box (not included). • Use only an adapter that supplies 12VDC and delivers at least 100mA.

  • Page 6: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Many do-it-yourself and professional antenna installers are injured or killed each year by electric shock, because they fail to recognize overhead wires as being potentially lethal. Touching any part of the antenna mast or guy wire to these overhead wires is the same as touching the wires with your bare hand. A very serious shock is almost sure to result when contacting an electrical wire.

  • Page 7: Limited Warranty

    State to State. You may contact RadioShack at: RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/08 www.RadioShack.com ©2009. RadioShack Corporation. 07A09 AO0354AAA1 All rights reserved. RadioShack and RadioShack.com are 15-257 Printed in China trademarks used by RadioShack Corporation.
