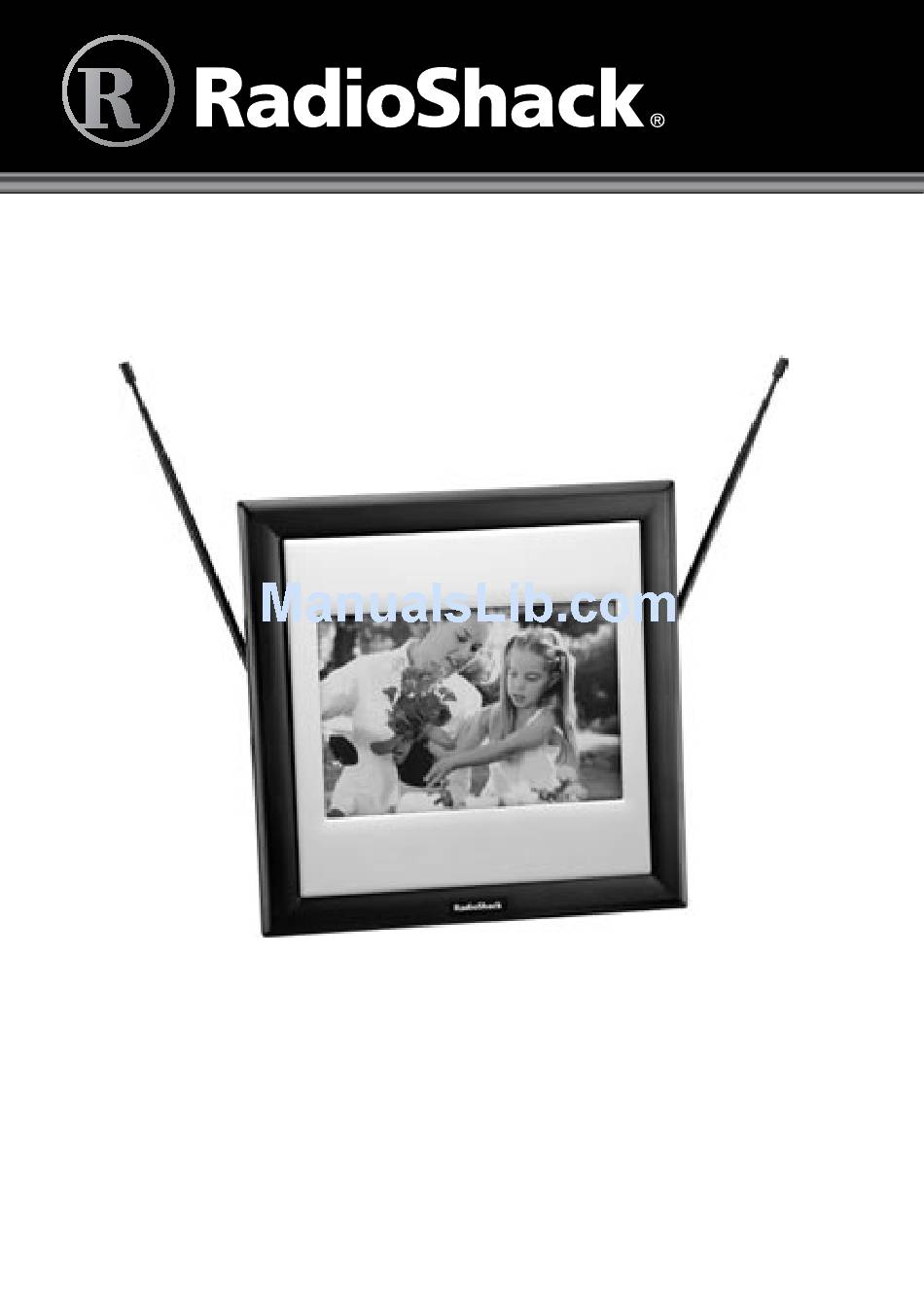

- Page 1 User’s Guide 15-248 Picture Frame Indoor HDTV Antenna Thank you for purchasing your Picture Frame Indoor HDTV Antenna from RadioShack. Please read this user’s guide before installing, setting up, and using your new Frame Antenna.
-
Page 2: Package Contents
Package contents • Frame Antenna • User’s Guide • Quick Start Features • Receive HDTV, VHF, UHF, HD Radio signals, and FM radio signals. • Adjustable VHF dipoles with built-in UHF loop. Put a picture in the frame 1. Press the locking tabs on the four corners to remove the frame cover. 2. Place your 4” x 6” photo in the frame. 3. Replace the frame cover. Install your antenna 1. Place the antenna on or near your TV set or FM receiver. 2. Connect the antenna cable’s F- connector to the input terminal on your TV or FM receiver. -
Page 3: Specifications
3. Adjust the length and position of the antenna rods and rotate the antenna base to get the best reception. Note: Do not place the antenna near metal objects such as cabinets, bookshelves, refrigerators, doors, walls, or water pipes inside a wall. This can greatly reduce the antenna’s ability to receive signals. Specifications Frequency range.... ..FM: 88-108 MHz ...........UHF: 470-806 MHz ........VHF: 54-88, 174-216 MHz Output Impedance...... . - Page 4 HD Radio broadcasting in VHF: To improve reception, extend both rods about two segments straight up FM radio: swivel both rods up to 360º to improve reception Locking tabs (4) F-connector cable Press to open/ Connect to TV/ FM close frame cover receiver input terminal...
- Page 5 Care and Service • Keep the antenna dry; if it gets wet, wipe it dry immediately. Handle the antenna carefully; do not drop it. • Use and store the antenna only in normal temperature environments. • Keep the antenna away from dust and dirt, and wipe it with a damp cloth occasionally to keep it looking new. • Modifying or tampering with the antenna’s internal components can cause a malfunction and might invalidate its warranty. If your antenna is not performing as it should, take it to your local RadioShack store for assistance. • If your receiver has a 300-ohm twin- lead connector, you need an adapter (available from your local RadioShack store or www.RadioShack.com). Screw the adapter onto the antenna cable, then tighten and secure the adapter’s lead to the terminal on your TV or FM receiver.
-
Page 6: Limited Warranty
Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S. RadioShack will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDI- TIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WAR- RANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED... - Page 7 TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some States do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. You may contact RadioShack at: RadioShack Customer Relations 300 RadioShack Circle, Fort Worth, TX 76102 04/08 www.RadioShack.com Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. Patent Pending ©2009. RadioShack Corporation. All rights reserved. RadioShack and RadioShack.com are trademarks used by RadioShack Corporation. Printed in China 15-248 A 08A09 AO0389AAA1...
