2.1 Hardware Connection

1. Locate an optimum location for the WRT-410. The best place for your WRT-410 is usually at
the center of your wireless network, with line of sight to all of your mobile stations.
2. Adjust the antennas of WRT-410. Try to adjust them to a position that can best cover your
wireless network. The antenna's position will enhance the receiving sensitivity.
3. Connect RJ-45 cable to WRT-410 LAN port. Connect one of the LAN ports on WRT-410 to your
LAN switch/hub with a RJ-45 cable.
4. Connect RJ-45 cable to WRT-410 WAN port. Connect ADSL/Cable Modem to the WAN port on
WRT-410. Use the cable supplied with your modem. If no cable was supplied with your modem,
please use a RJ-45 Ethernet cable
5. Plug in power adapter and connect to power source. After power on, WRT-410 will start to
operate.
Note: ONLY use the power adapter supplied with the WRT-410. Otherwise, the product may be
damaged.
Note: If you want to reset WRT-410 to default settings, press and hold the Reset button over 5
seconds. And then wait for 10 seconds for WRT-410 restart.

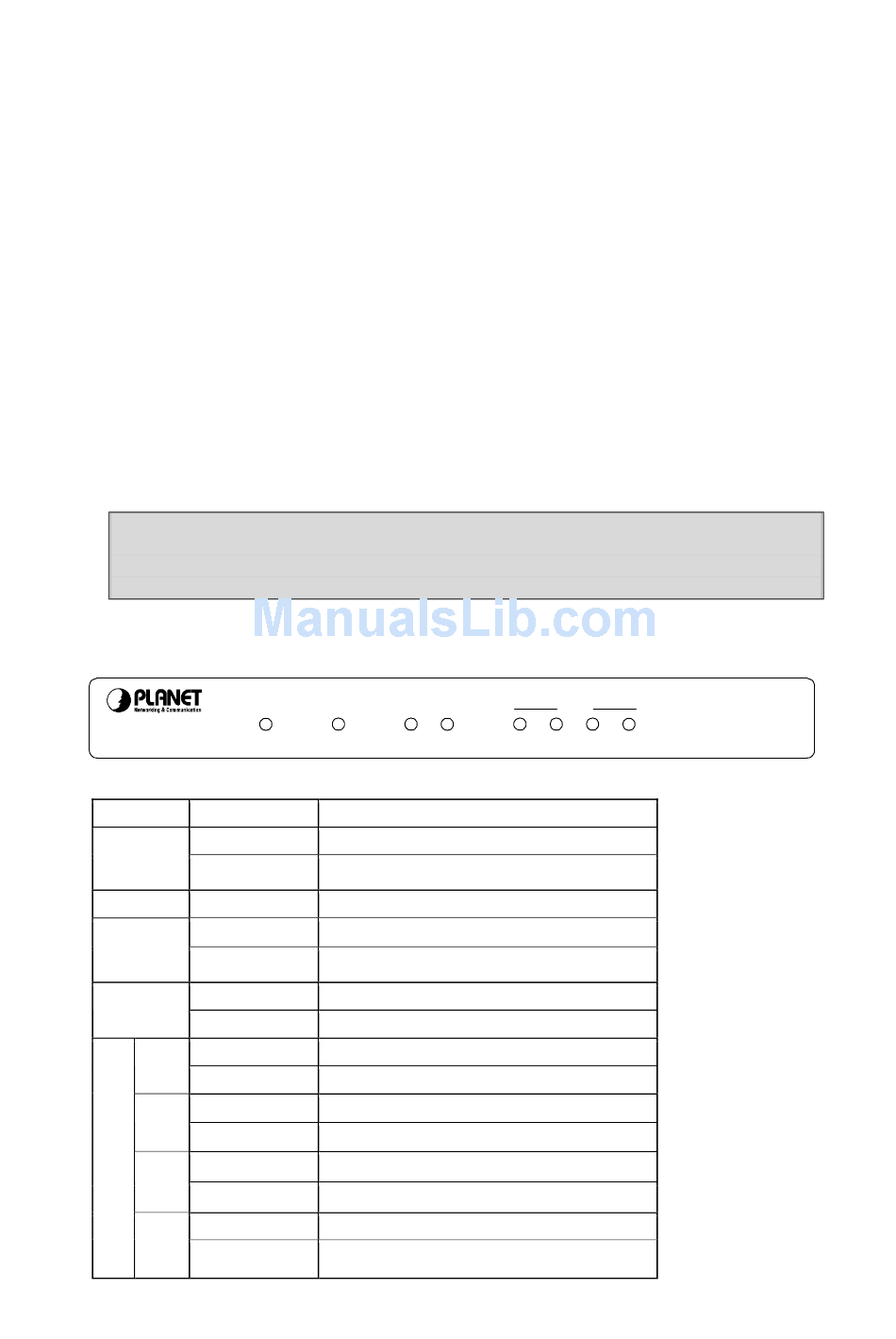

2.2 LED Indicators

WRT-410
LED STATE
PWR Green
Off
STATUS Green
WAN Green
Blinking Green WAN activity
WLAN Green
Blinking Green WLAN activity
LAN 1 Green
Blinking Green Packets are transmitting or receiving
Green
2
Blinking Green Packets are transmitting or receiving
3 Green
Blinking Green Packets are transmitting or receiving
Green
4
Blinking Green Packets are transmitting or receiving

Chapter 2 Hardware Installation

PWR STATUS WAN WLAN
MEANING
Device power on
Device power off
Indicates a connection error
WAN link status is on
WLAN link status is on
Link is established
Link is established
Link is established
Link is established
LAN
1 2 3
- 4 -
802.11g
Wireless Router
