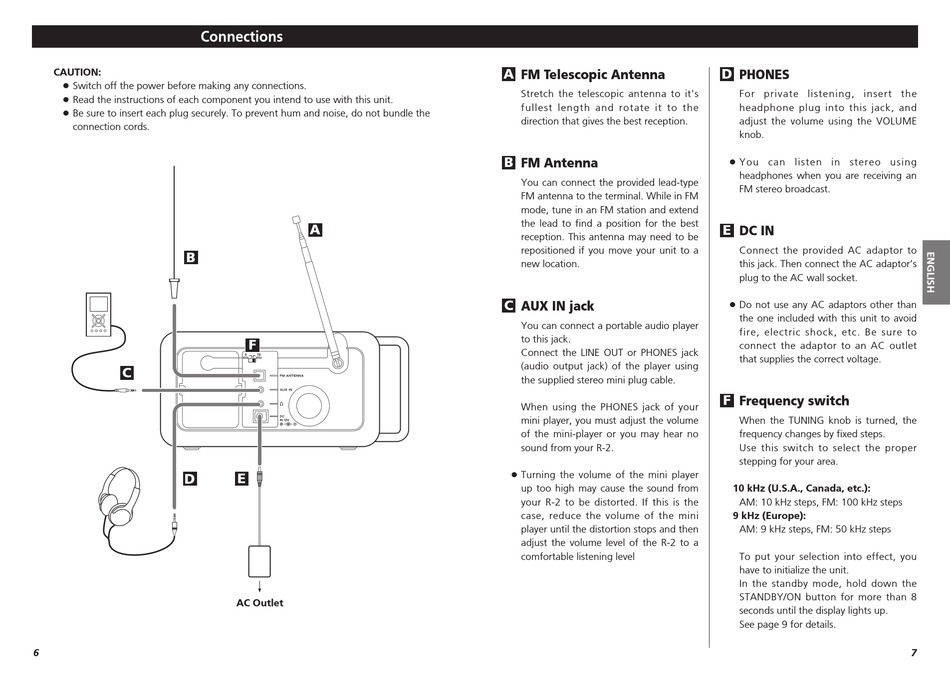

Connections

CAUTION:
< Switch off the power before making any connections.
< Read the instructions of each component you intend to use with this unit.
< Be sure to insert each plug securely. To prevent hum and noise, do not bundle the
connection cords.
B
C
D
6
A
F
E
AC Outlet
A
FM Telescopic Antenna
Stretch the telescopic antenna to it's
fullest length and rotate it to the
direction that gives the best reception.
B FM Antenna
You can connect the provided lead-type
FM antenna to the terminal. While in FM
mode, tune in an FM station and extend
the lead to find a position for the best
reception. This antenna may need to be
repositioned if you move your unit to a
new location.
C AUX IN jack
You can connect a portable audio player
to this jack.
Connect the LINE OUT or PHONES jack
(audio output jack) of the player using
the supplied stereo mini plug cable.
When using the PHONES jack of your
mini player, you must adjust the volume
of the mini-player or you may hear no
sound from your R-2.
< Turning the volume of the mini player
up too high may cause the sound from
your R-2 to be distorted. If this is the
case, reduce the volume of the mini
player until the distortion stops and then
adjust the volume level of the R-2 to a
comfortable listening level
D
PHONES
For private listening, insert the
headphone plug into this jack, and
adjust the volume using the VOLUME
knob.
< You can listen in stereo using
headphones when you are receiving an
FM stereo broadcast.
E DC IN
Connect the provided AC adaptor to
this jack. Then connect the AC adaptor's
plug to the AC wall socket.
< Do not use any AC adaptors other than
the one included with this unit to avoid
fire, electric shock, etc. Be sure to
connect the adaptor to an AC outlet
that supplies the correct voltage.
F Frequency switch
When the TUNING knob is turned, the
frequency changes by fixed steps.
Use this switch to select the proper
stepping for your area.
10 kHz (U.S.A., Canada, etc.):
AM: 10 kHz steps, FM: 100 kHz steps
9 kHz (Europe):
AM: 9 kHz steps, FM: 50 kHz steps
To put your selection into effect, you
have to initialize the unit.
In the standby mode, hold down the
STANDBY/ON button for more than 8
seconds until the display lights up.
See page 9 for details.
7
